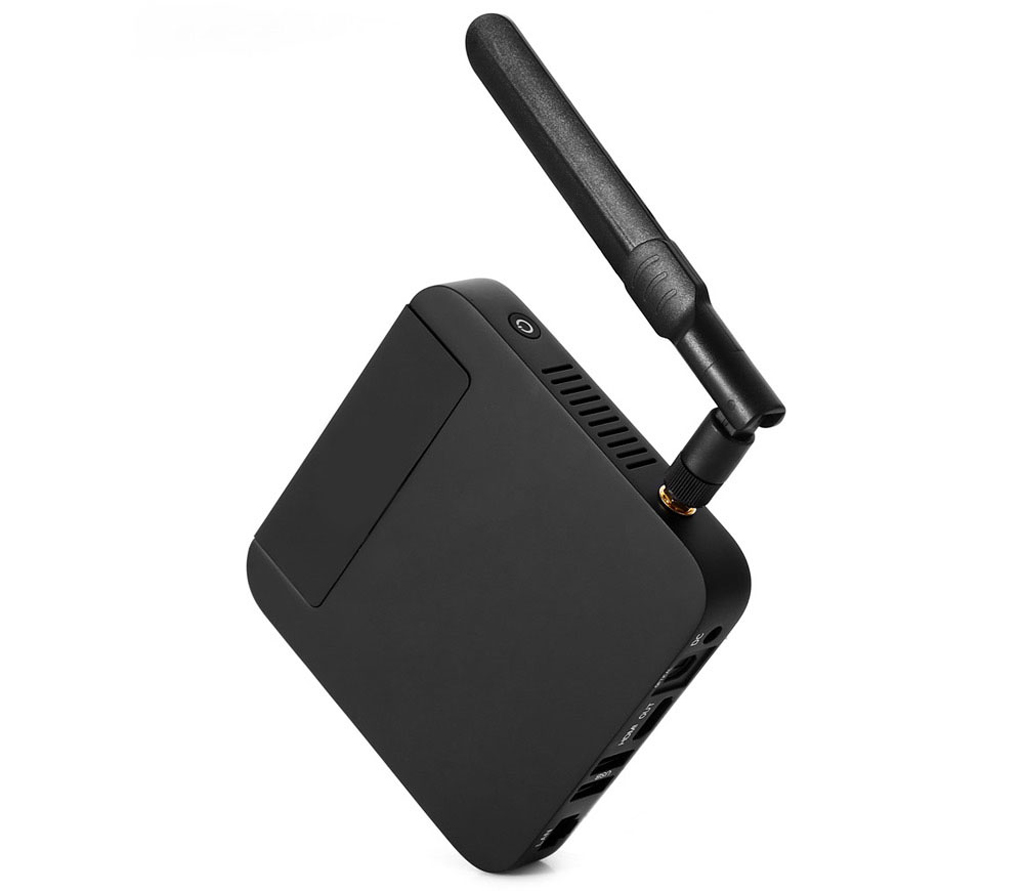

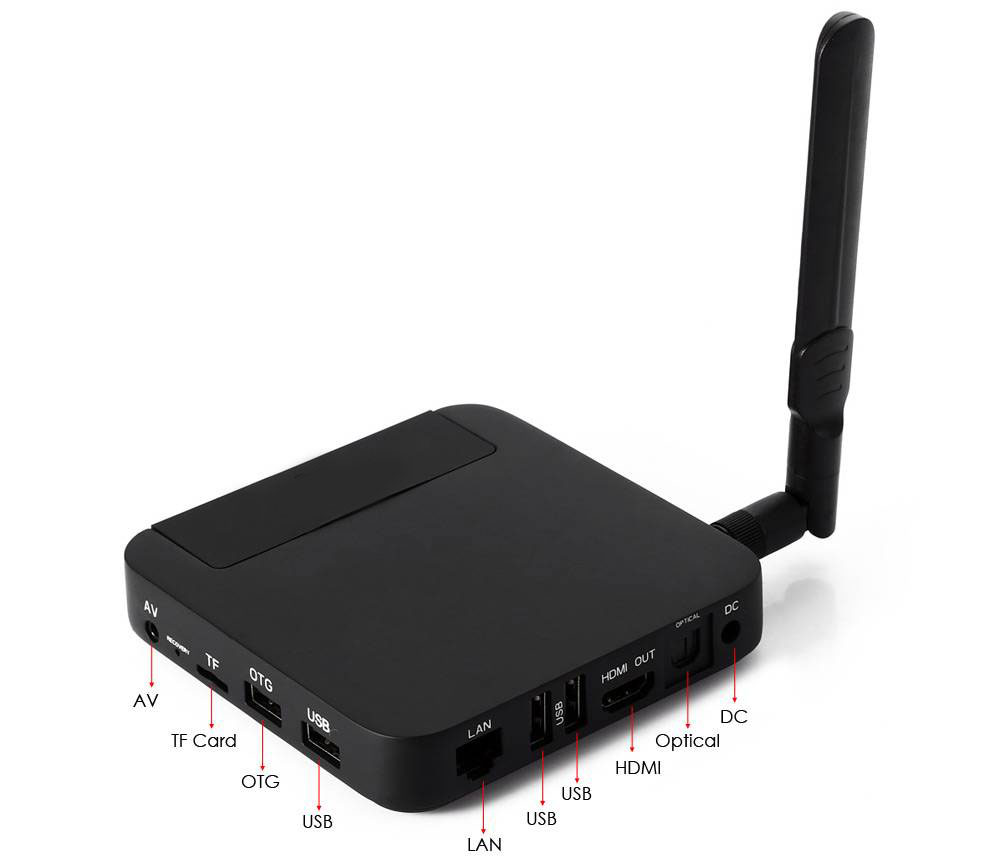

Operation System: Amlogic S922X, Android 9.0, Quad core Arm Cortex-A73 - 1.7Ghz, Dual core Arm Cortex-A53 CPU - 1.8Ghz, Interface - Connection portals: HDMI IN, Power Input DC 12V/2A, LAN input for Internetconnection - RJ45, Digital Sound Output (SPDIF), USB OTG, 2x USB 2.0, AV out jack, Aux-In, Network options: Wifi, LAN/WLAN, Start-Up: AutoStart by plug-in the power-adapter, PowerAdapter: AC/DC 12V/2A, Memory: RAM 2GB - Internal Memory: 16GB

CHECK SOFTWARE:

1x button: Trigger sensor: Play - Next video
1x button: Volume up
1x button: Volume down

Software function:
- When no sensoring: play looping silent video (mu.avi)

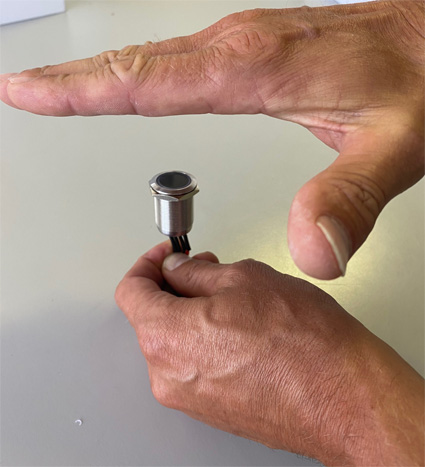

- If wave hand through Trigger sensor, it will play video. wave again it will play next video
- Hold you hand over the Volume button for louder or softer sound

------------------------------------------------------------------------------------------------------

Button 1 = 00.avi
Button 2 = 01.avi
Button 3 = 02.avi
Button 4 = 03.avi
Button 5 = 04.avi

Wave above button 1, it will play 00.avi, wave again it will start from the beginning
Wave above button 2, it will play 01.avi, wave again it will start from the beginning etc.
When nothing is sensing, the looping video will play all the time

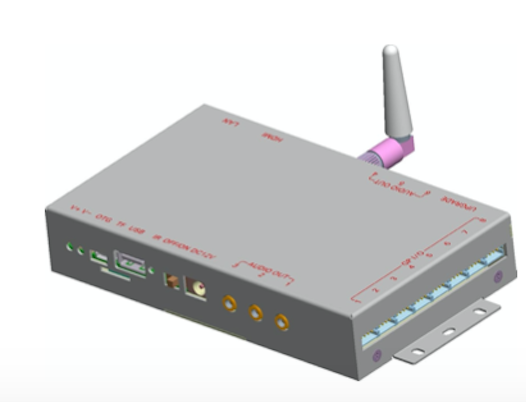

MultiFunctions Android Audio&VideoMediaplayer
Operation System: OS Android version 6.0.1
Software: XML scripting, AutoUpdate by USB Stick, Supports Atmos Dolby
Resolution Internal VideoPlayer: Full HD and 4K
Screen type: Connect any size screen to this player (1080P / 4K)
Start-Up: AutoStart by plug-in the power-adapter

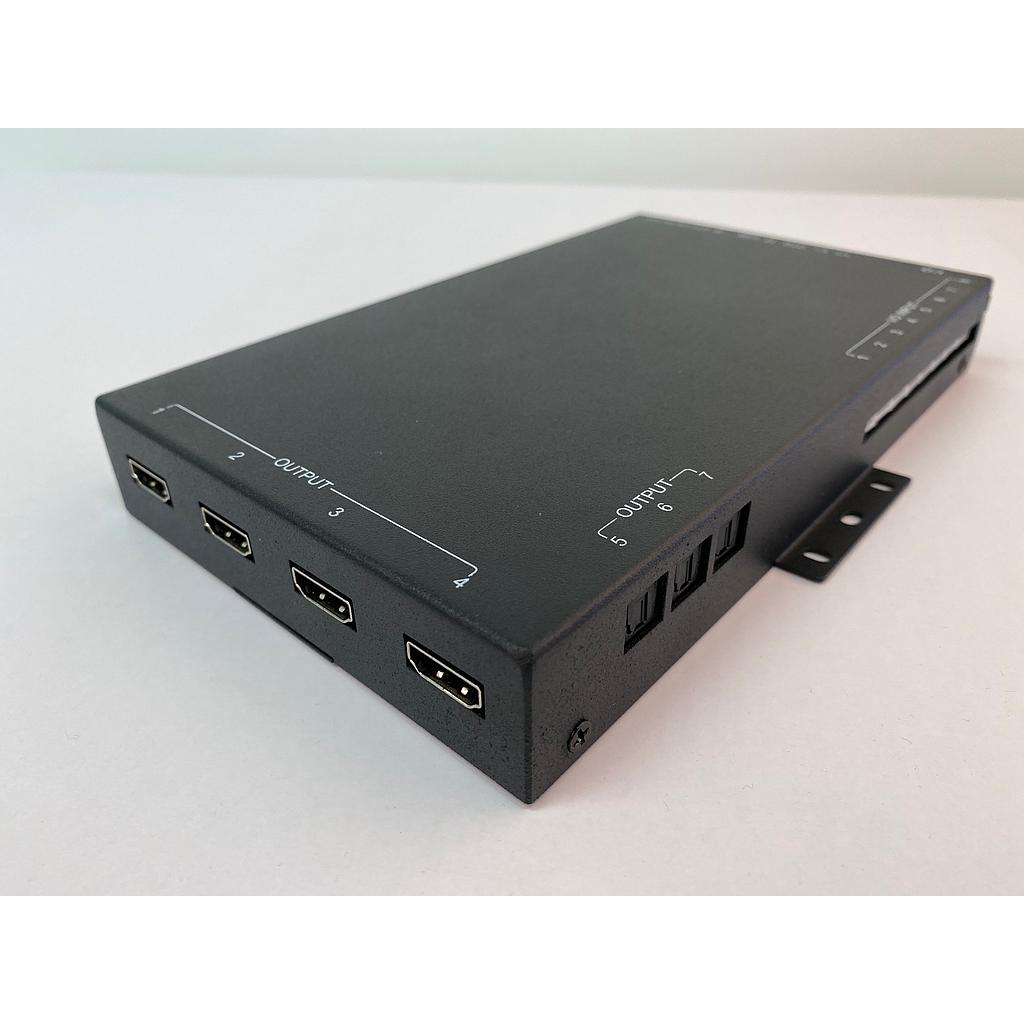

Interface Connection portals:
- 8x PushButton Inputs (5x Play, 1x Mute, 1x Volume Up, 1x Volume Down)
- 4x HDMI OUT,
- 3x Digital Sound Output
Other: TF cardreader, USB Portal, Antenna for WIFI, OTG portal, IR eye hole, ON-OFF switch, DC 12V IN
Optional: Add LED light strips to have interactive light under the soundbar and subwoofer and brandlogo (not a standard feature, but can be added on request).

PowerAdapter: AC 100/240V-50-60HZ, DC 12V/1A,

Housing type: Closed metal housing
Mounting options: Mounting Strips

Housing type: Closed metal housing, Screen type: Connect any size screen to this player (1080P / 4K), Start-Up: AutoStart by plug-in the power-adapter, Interface - Connection portals: 8x PushButton Inputs, Interface - Connection portals: LAN, Interface - Connection portals: HDMI OUT, Interface - Connection portals: LAN input for Internetconnection - RJ45, Interface - Connection portals: 3.5mm Jack, Interface - Connection portals: Power Input DC 12V/1A, Interface - Connection portals: Digital Sound Output 8x, Interface - Connection portals: Connection input for Additional PCB Board for interactive LED Strips, Interface - Connection portals: 2x Pushbutton input for Volume UP-DOWN, PowerAdapter: AC 100/240V-50-60HZ, DC 12V/1A, Mounting options: Mounting Strips, Resolution Internal VideoPlayer: 4K, Resolution Internal VideoPlayer: 1920*1080, Operation System: OS Android version 6.0.1, Software: Controlling Pushbuttons and RGB LED Strips by XML scripting

Operation System: Android 7.1, Octa Core ARM Cortex-A53, 2.0GHZ, CPU Amlogic S912, Interface - Connection portals: HDMI OUT, SD Cardreader, LAN input for Internet connection - RJ45, Digital Sound Output (SPDIF), 3.5mm Jack, 3x USB 2.0, Network options: Wifi, LAN/WLAN, Start-Up: AutoStart by plug-in the power-adapter, PowerAdapter: AC/DC 5V - 3A, Memory: RAM 2GB - Internal Memory: 16GB

Interface - Connection portals: HDMI IN, SD Cardreader, LAN input for Internet connection - RJ45, Micro USB Portal, 3.5mm Jack, 2x USB 2.0, 1x USB 3.0, Network options: Bluetooth 4.0, LAN/WLAN (optional by USB - Ethernet cable), WiFi 802.11b/g/n/ac, 2.4G + 5G, Operation System: Android 7.1 - RockChip RK3399, Dual Core A72, Quad Core A53, 4GB RAM - 32GB Internal Memory, 1.8G, Start-Up: AutoStart by plug-in the power-adapter, PowerAdapter: AC/DC 12V/1A, Usage: 24/7, Accessories: Remote Control, User Manual, Power Adapter 12V-1A, WIFI Antenna, Mounting options: Mounting Strips, Housing type: Black Metal Housing

[AC-AUD1508-V4.0-4K+1xOptical] 4K MultiFunctions Audio&VideoMediaplayer - 1x Digital Output - Soundbar Tester Player

Housing type: Closed metal housing, Screen type: Connect any size screen to this player (1080P / 4K), Start-Up: AutoStart by plug-in the power-adapter.
Onboard Android OS system is running a special Video&Audio app for (multiple) Soundbar testing.

Connection portals:
- 1x Digital Output Portals
- 1x HDMI OUT, Interface
- 3.5mm Jack, Interface
- LAN portal
- USB portal
- TF card or SD card portal
- 6x PushButton Input connector
- 1x Volume Up Input connector
- 1x Volume Down Input connector
Power Input AC/DC 12V/1A,
Mounting options: Mounting Strips

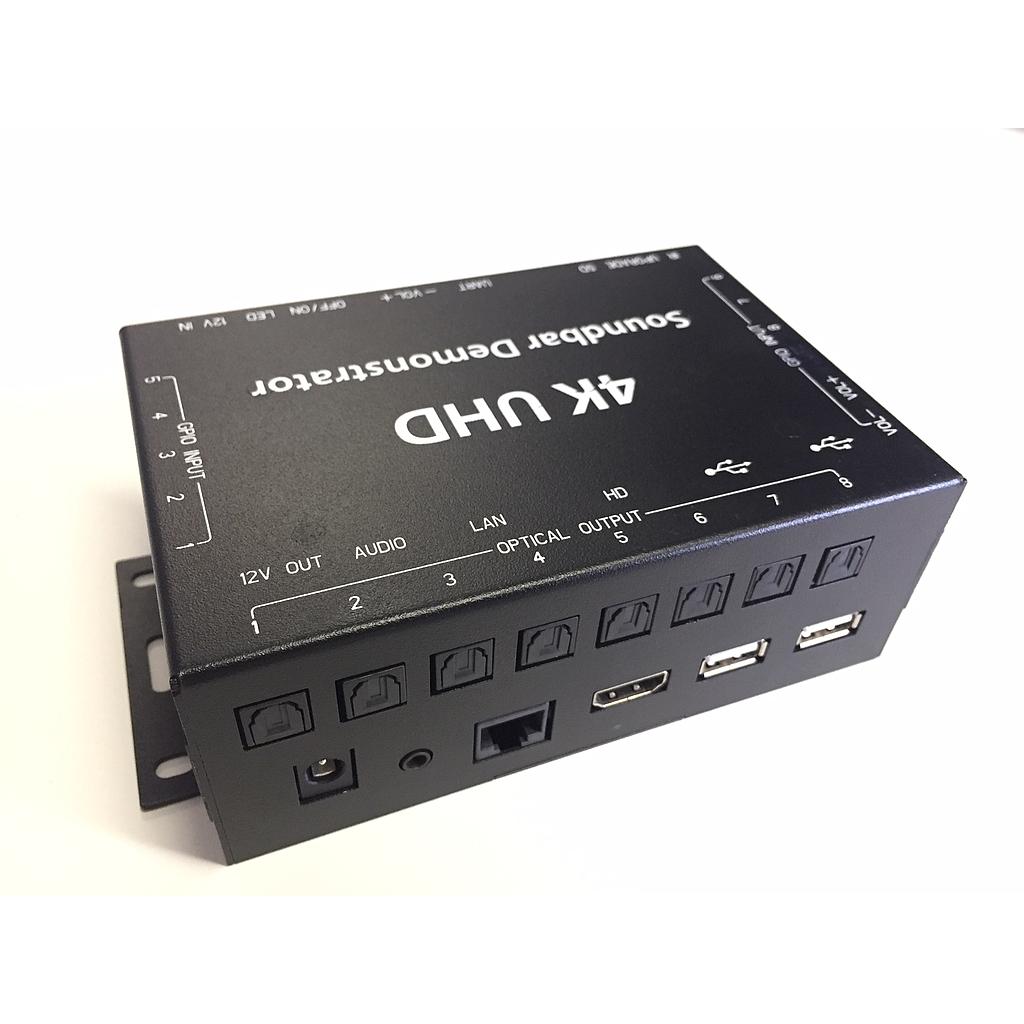

[AC-AUD1508-V4.0-4K+6xOptical] 4K MultiFunctions Audio&VideoMediaplayer - 6x Digital Output - Soundbar Tester Player

Housing type: Closed metal housing, Screen type: Connect any size screen to this player (1080P / 4K), Start-Up: AutoStart by plug-in the power-adapter.
Onboard Android OS system is running a special Video&Audio app for multiple Soundbar testing.

Connection portals:
- 6x Digital Output Portals
- 1x HDMI OUT, Interface
- 3.5mm Jack, Interface
- LAN portal
- USB portal
- TF card or SD card portal
- 6x PushButton Input connector
- 1x Volume Up Input connector
- 1x Volume Down Input connector
Power Input AC/DC 12V/1A,
Mounting options: Mounting Strips

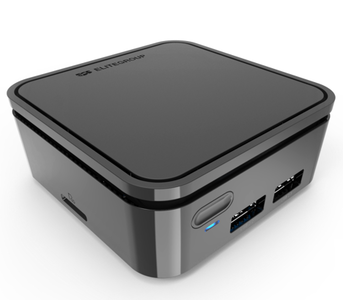

Great for you project as Signage Player, Desktop Replacement, IOT Servers and more.
High Definition: HDMI1.4b supports 4K experience.

Watchdog enabled:
In case something goes wrong, the Watchdog function restarts the PC and puts it back to normal operation.
Main specifications:
Intel N3350 2.3GHz, HDMI 4K, 2GB RAM, 32GB SSD, Windows 10
Futher specs: check the specifications sheet.

Interface - Connection portals: HDMI IN, Interface - Connection portals: SD/MMC Cardreader, Interface - Connection portals: USB Portal, Interface - Connection portals: 3.5mm Jack

Operation System & CPU: Android 6.1, Quad Core ARM Cortext - A53 up to 1.6GHz, External Storage: USB 2.0, SD Card, Interface - Connection portals: Power Input DC 12V/1.5A, 2x USB 2.0, 8x PushButton Inputs, Digital Sound Output (SPDIF), 3.5mm Jack, SD Cardreader, LAN input for Internet connection - RJ45, HDMI 1.4, Housing type: Black Metal Housing, Optional Features: Bluetooth

Housing type: Closed Black Metal Frame
Auto Start-up when plug in the power.

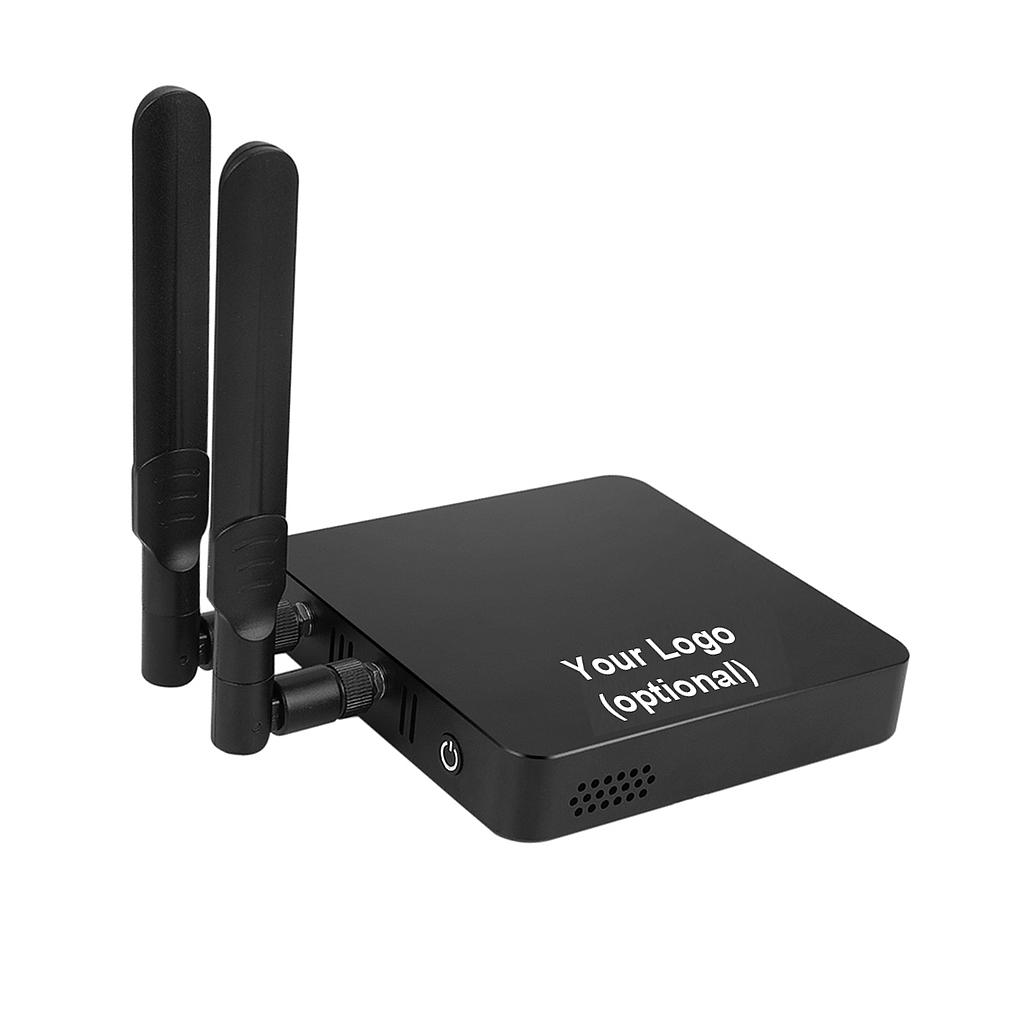

Operation System & CPU: Android 5.1 - Rockchip RK3288 - Rooted, GPU Mali-T764 - 2.2Ghz, Quad Core Cortex A17, 1.8G,
Network options: Wi-Fi, LAN/WLAN, Bluetooth 4.0
Interface - Connection portals: 4x USB Host, External DualBand WiFi Antenna, HDMI OUT, Digital Sound Output (SPDIF), 3.5mm Audio Jack Out, LAN input for Internetconnection - RJ45, HDMI 2.0, Support 4Kx2K decode Output, Micro SD Card (MMC card) reader, Power Input DC 5V/3A.
Including: AC-DC Power adapter 5V-3A and Accessories: Remote Controll, HDMI Cable 1.2 meter, WiFi Antenna, USB OTG male-male cable, Instruction Manual

Optional:
- Android 4.4 installation instead of Android 5.1 is on request.
- Own Logo printing on Housing; prices and quantities are on request.
- Installation of own Image and / or APK software installation are on request.

Interface - Connection portals: Power Input DC 12V/1.5A, 8x PushButton Inputs, USB Portal, SD Cardreader, Housing type: Black Plastic Housing

Including:
EU Power Adapter

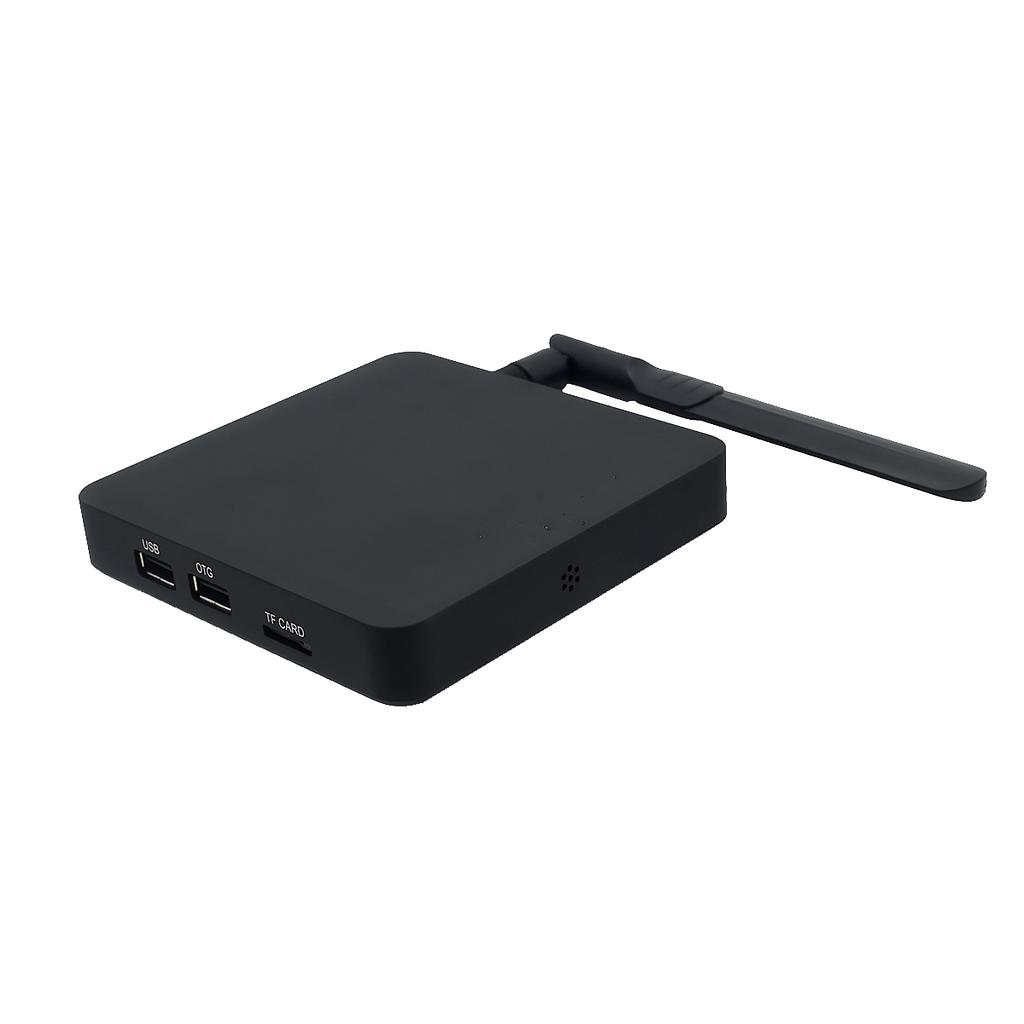

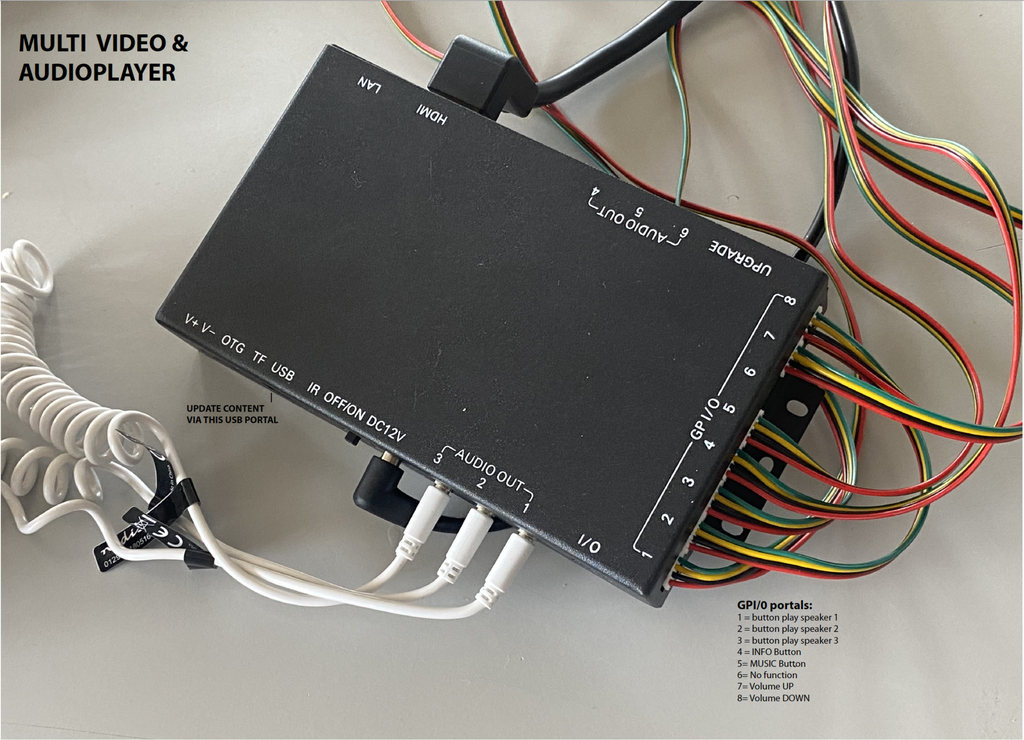

Operation System: Quad Core ARM Cortext - A53 up to 1.6GHz, Android OS,

Interface - Connection portals:
8x PushButton Inputs,
6x 3.5mm Jack Output,
1x USB Portal, 1x USB OTG portal, TF cardreader,
1x HDMI OUT,
WiFi Antenna, LAN RJ45
Power Input DC 12V/2A,
Housing type: Black Metal Housing,
PowerAdapter: AC/DC 12V/1.5A

Including:
EU Power adapter
Packaging: White GiftBox
Sticker on Packaging and Product.
Text on sticker: AC-MP4K-AUDIO-6JACKS-ANDROID
SN number: SN:

[AC-MP4K-AUDIO-1xUSB+5xJACKS-ANDROID] 4K Media&Audio Multi Player - 6x Jack Out - Interactive Trigger function (8x) - AutoStart

Operation System: Quad Core ARM Cortext - A53 up to 1.6GHz, Android OS,

Interface - Connection portals:
8x PushButton Inputs,
5x 3.5mm Jack Output,
1x USB Audio Output
1x USB Portal, 1x USB OTG portal, TF cardreader,
1x HDMI OUT,
WiFi Antenna, LAN RJ45
Power Input DC 12V/2A,
Housing type: Black Metal Housing,
PowerAdapter: AC/DC 12V/1.5A

Including:
EU Power adapter
Packaging: White GiftBox
Sticker on Packaging and Product.
Text on sticker: AC-MP4K-AUDIO-1xUSB-5xJACKS-ANDROID
SN number: SN:

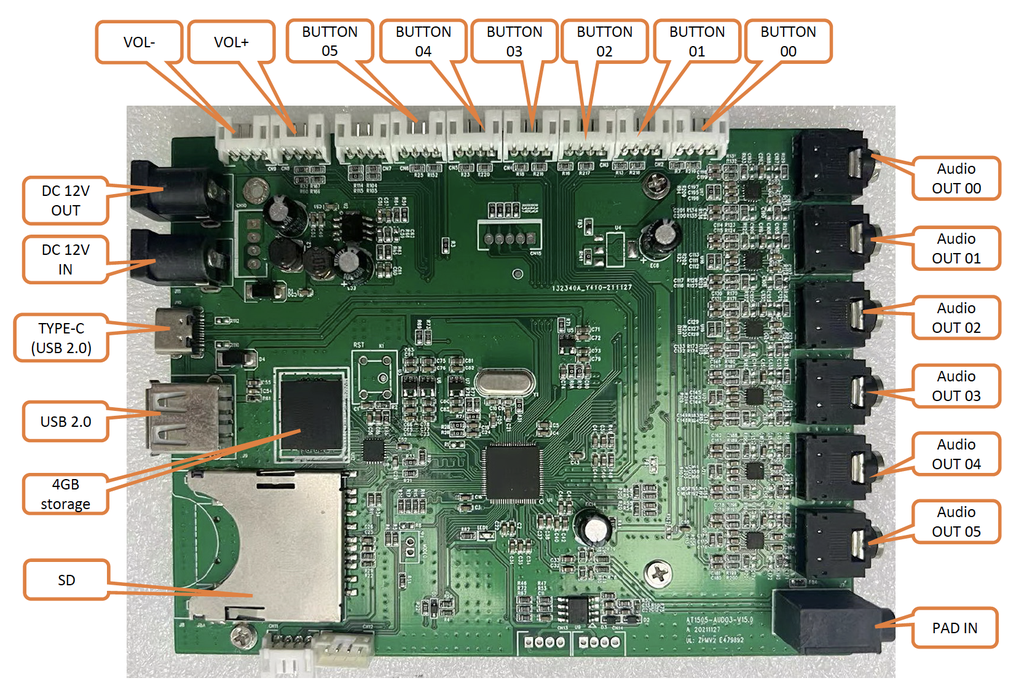

Support MP3 and WAV
6x output 3.5mm AUX jack - to connect Speakers or Headphones
1x input 3.5mm AUX jack - to connect external device in, f.i. Mobile phone. Hear the sound from your Mobile phone, instead of the internal memory soundtracks.
1x USB-2.0 reader
1x USB-C (USB 2.0)
1x SD card reader
1x 12V DC jack input
1x 12V DC jack output - to connect f.i. 12V out PCB Board, to connect multiple LED strips.
8x push button connector inputs (Choose your setup: selection buttons, back or forward, and volume up and down)
Internal Memory 4GB - with Autocopy function by USB Stick.

Power adapter 12V, EU or UK?

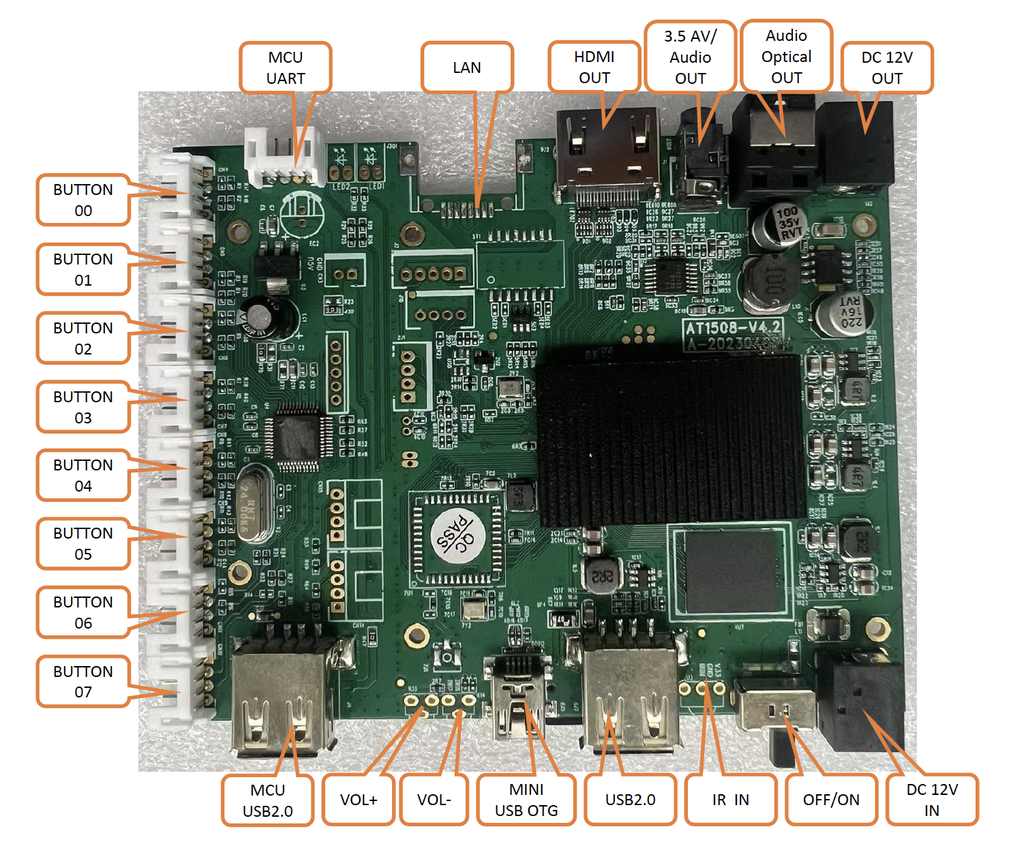

4K Mediaplayer with Multi Inputs and Outputs

Video Content play from 4K player (HDMI out)
Main Interface portals:
8x Pushbutton inputs
1x HDMI OUT
1x LAN (internet connection)
2x USB
1x Mini USB
1x SPDIF digital
1x Jack 3.5 AUX
1x MCU UART: Audio Connection portal to AudioPlayer-Controller

4K Resolution Mediaplayer for Retail demonstration (Speakers / Headphones / Soundbars)
Internal Android OS system, with Retail software app.
Internal Memory 16GB
6x input button for Selecting Video (JST connection) - Function can be adjusted according to needs.
2x input button for Volume up and down (JST connection)
6x output 3.5mm Jack portals
1x HDMI OUT
1x LAN
1x USB (files and auto update function)
1x USB (upgrade the internal OS system)
1x 12V IN
1x 12V OUT (optional)

Including 12V power adapter (AC-DC).
