MultiFunctions Android Audio&VideoMediaplayer
Operation System: OS Android version 6.0.1
Software: XML scripting, AutoUpdate by USB Stick, Supports Atmos Dolby
Resolution Internal VideoPlayer: Full HD and 4K
Screen type: Connect any size screen to this player (1080P / 4K)
Start-Up: AutoStart by plug-in the power-adapter

Interface Connection portals:
- 8x PushButton Inputs (5x Play, 1x Mute, 1x Volume Up, 1x Volume Down)
- 4x HDMI OUT,
- 3x Digital Sound Output

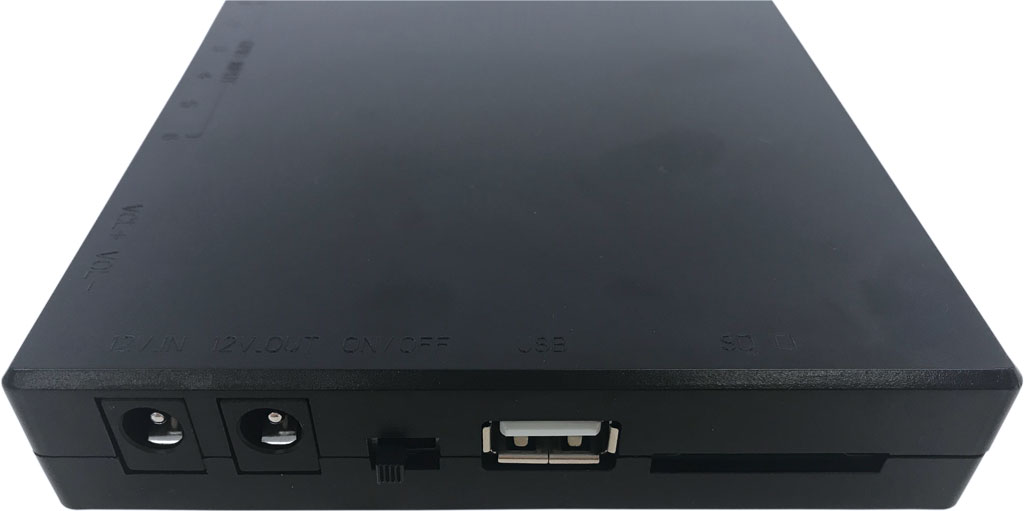

Other: TF cardreader, USB Portal, Antenna for WIFI, OTG portal, IR eye hole, ON-OFF switch, DC 12V IN
Optional: Add LED light strips to have interactive light under the soundbar and subwoofer and brandlogo (not a standard feature, but can be added on request).

PowerAdapter: AC 100/240V-50-60HZ, DC 12V/1A,

Housing type: Closed metal housing
Mounting options: Mounting Strips

Including
- Black Plastic Housing.
- EU power adapter 12V

Including Inputs:
6x Jack Output 3,5mm
1x Jack In to connect Mobile Phone 3.5mm
6x PushButton Input
1x Volume Up
1x Volume Down
1x USB Stick Input
1x SD Card Input
1x 12V IN
1x 12V OUT

Housing type: Closed metal housing, Screen type: Connect any size screen to this player (1080P / 4K), Start-Up: AutoStart by plug-in the power-adapter, Interface - Connection portals: 8x PushButton Inputs, Interface - Connection portals: LAN, Interface - Connection portals: HDMI OUT, Interface - Connection portals: LAN input for Internetconnection - RJ45, Interface - Connection portals: 3.5mm Jack, Interface - Connection portals: Power Input DC 12V/1A, Interface - Connection portals: Digital Sound Output 8x, Interface - Connection portals: Connection input for Additional PCB Board for interactive LED Strips, Interface - Connection portals: 2x Pushbutton input for Volume UP-DOWN, PowerAdapter: AC 100/240V-50-60HZ, DC 12V/1A, Mounting options: Mounting Strips, Resolution Internal VideoPlayer: 4K, Resolution Internal VideoPlayer: 1920*1080, Operation System: OS Android version 6.0.1, Software: Controlling Pushbuttons and RGB LED Strips by XML scripting

[AC-AUD1508-V4.0-4K+1xOptical] 4K MultiFunctions Audio&VideoMediaplayer - 1x Digital Output - Soundbar Tester Player

Housing type: Closed metal housing, Screen type: Connect any size screen to this player (1080P / 4K), Start-Up: AutoStart by plug-in the power-adapter.

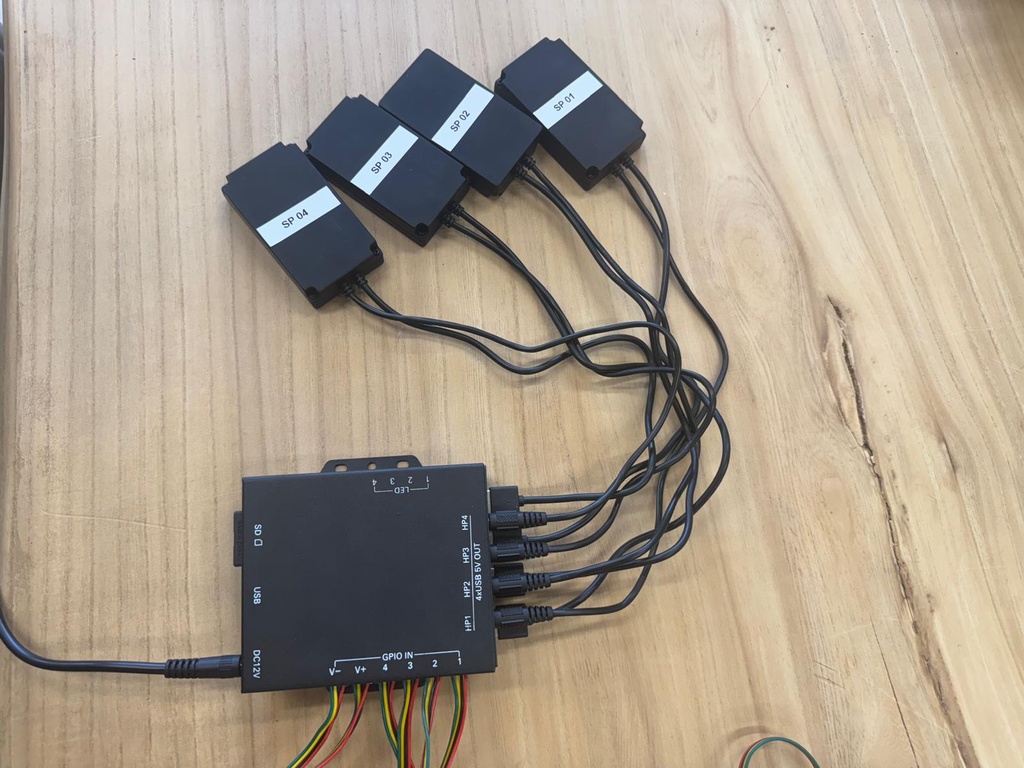

Onboard Android OS system is running a special Video&Audio app for (multiple) Soundbar testing.

Connection portals:
- 1x Digital Output Portals
- 1x HDMI OUT, Interface
- 3.5mm Jack, Interface
- LAN portal
- USB portal
- TF card or SD card portal
- 6x PushButton Input connector
- 1x Volume Up Input connector
- 1x Volume Down Input connector
Power Input AC/DC 12V/1A,
Mounting options: Mounting Strips

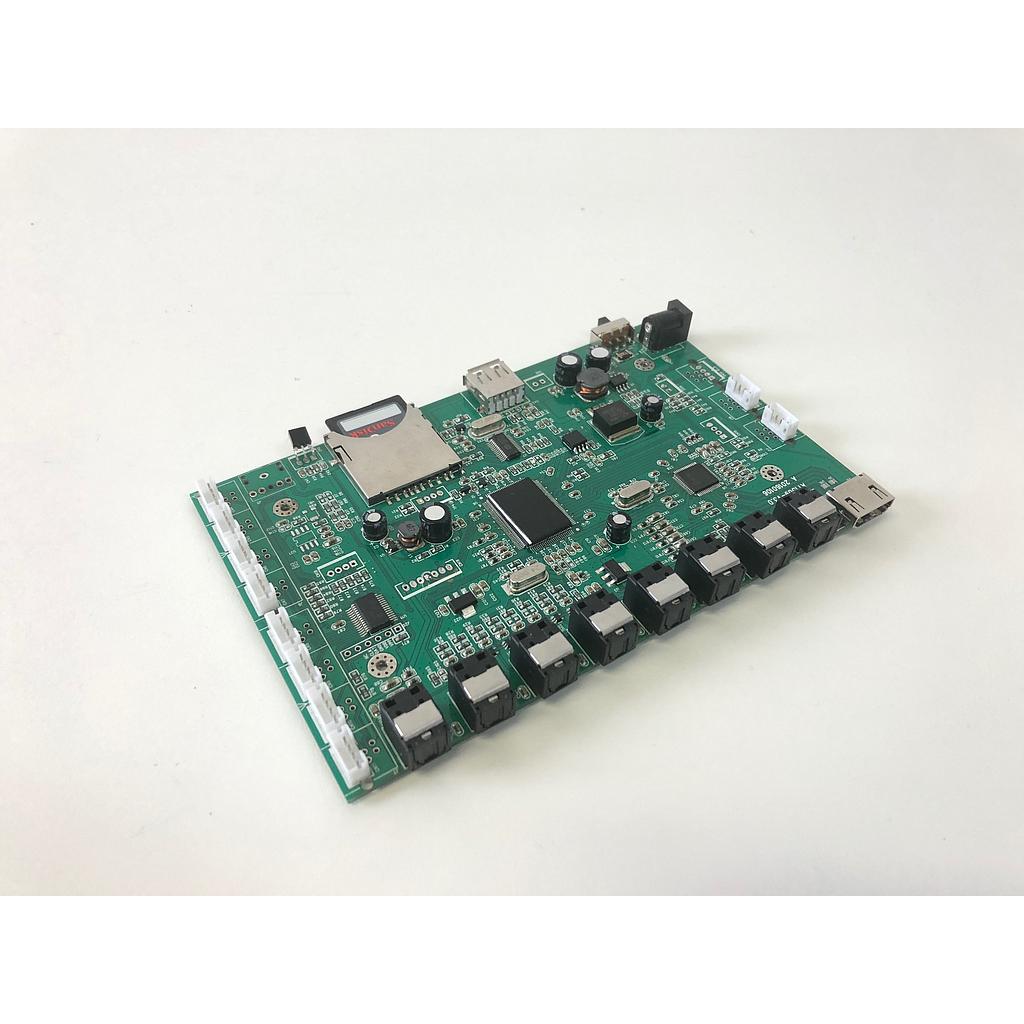

[AC-AUD1508-V4.0-4K+6xOptical] 4K MultiFunctions Audio&VideoMediaplayer - 6x Digital Output - Soundbar Tester Player

Housing type: Closed metal housing, Screen type: Connect any size screen to this player (1080P / 4K), Start-Up: AutoStart by plug-in the power-adapter.
Onboard Android OS system is running a special Video&Audio app for multiple Soundbar testing.

Connection portals:
- 6x Digital Output Portals
- 1x HDMI OUT, Interface
- 3.5mm Jack, Interface
- LAN portal
- USB portal
- TF card or SD card portal
- 6x PushButton Input connector
- 1x Volume Up Input connector
- 1x Volume Down Input connector
Power Input AC/DC 12V/1A,
Mounting options: Mounting Strips

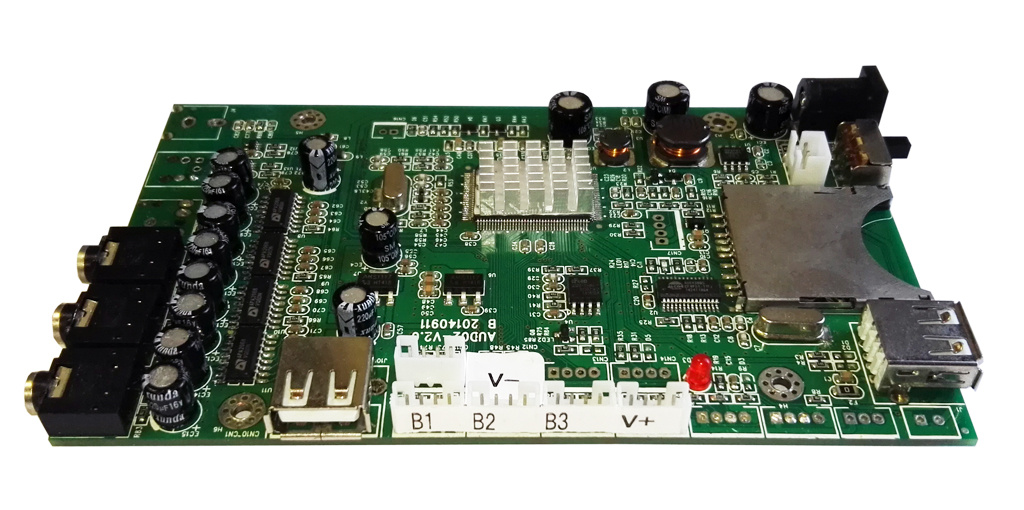

Including Inputs:

3x Jack Output 3,5mm
3x PushButton Input
1x Volume Up
1x Volume Down
1x USB Stick Input
1x SD Card Input
1x Power Adapter Input
1x Input External Speaker

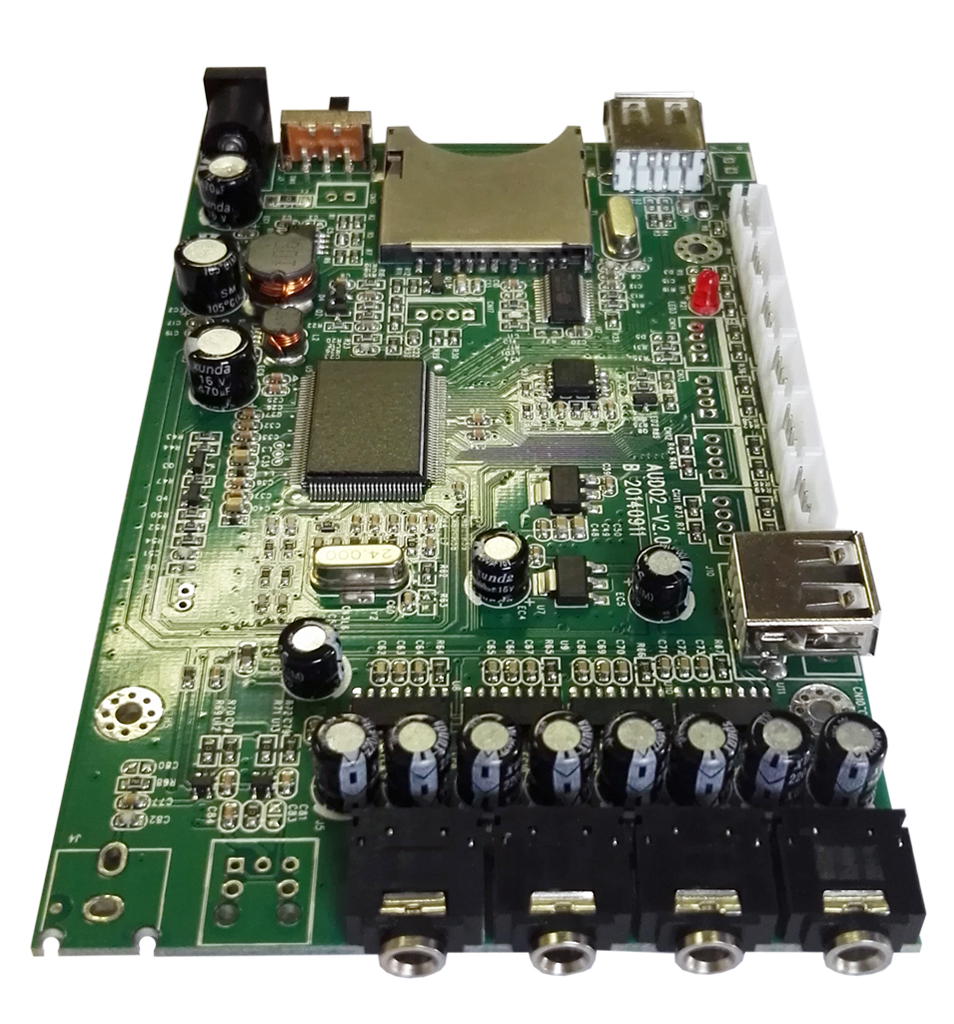

Including Inputs:

4x Jack Output 3,5mm
4x PushButton Input
1x Volume Up
1x Volume Down
2x USB Stick Input
1x SD Card Input
1x Power Adapter Input

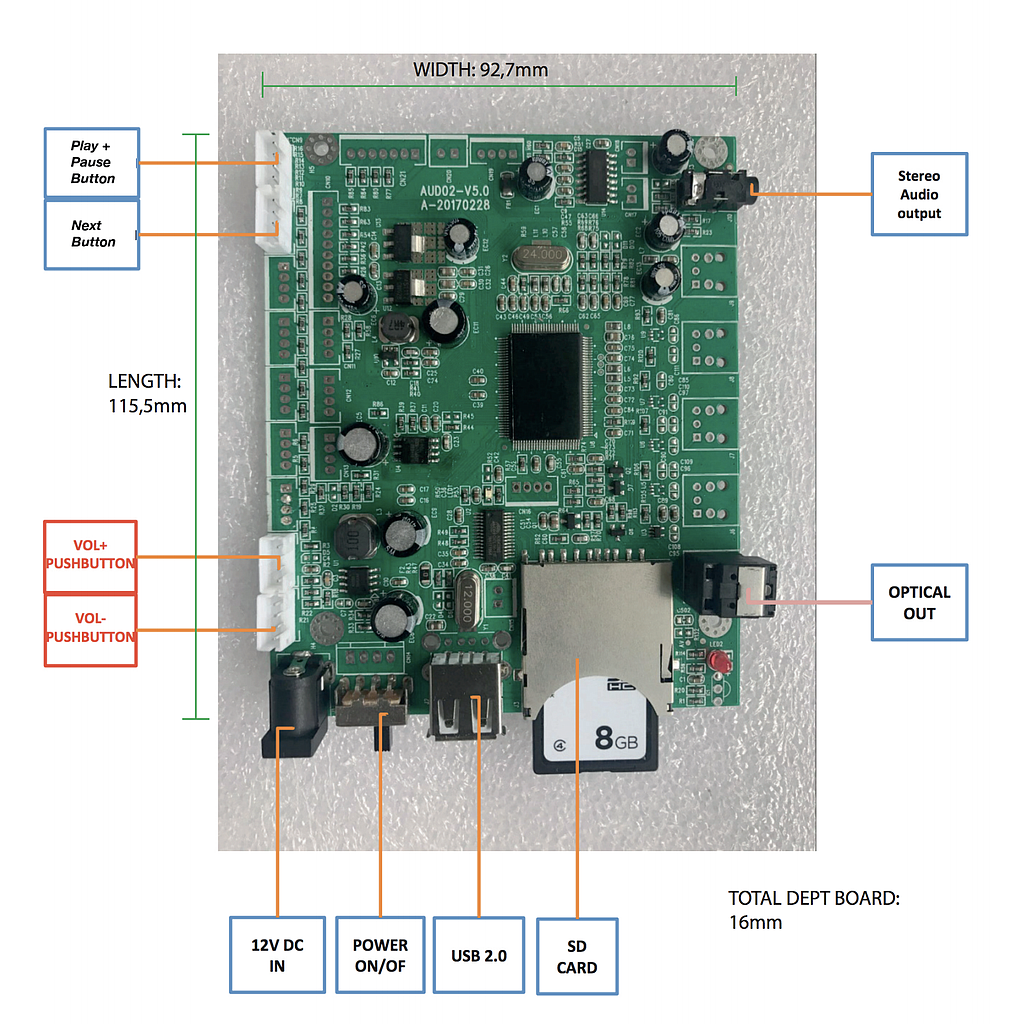

Including Inputs:

PushButton: Volume Up
PushButton: Volume Down
PushButton: Play
PushButton: Next
1x Output Jack 3,5mm
SD Card
USB Stick
Power Adapter

Including Inputs:

1x Jack Output 3,5mm
4x PushButton Input
1x Volume Up
1x Volume Down
2x USB Stick Input
1x SD Card Input
1x Power Adapter Input

Including Inputs:

6x Jack Output 3,5mm
4x PushButton Input
1x Volume Up
1x Volume Down
2x USB Stick Input
1x SD Card Input
1x Power Adapter Input

Support MP3 and WAV
6x output 3.5mm AUX jack - to connect Speakers or Headphones
1x input 3.5mm AUX jack - to connect external device in, f.i. Mobile phone. Hear the sound from your Mobile phone, instead of the internal memory soundtracks.
1x USB-2.0 reader
1x USB-C (USB 2.0)
1x SD card reader
1x 12V DC jack input
1x 12V DC jack output - to connect f.i. 12V out PCB Board, to connect multiple LED strips.
8x push button connector inputs (Choose your setup: selection buttons, back or forward, and volume up and down)
Internal Memory 4GB - with Autocopy function by USB Stick.

Power adapter 12V, EU or UK?

4K Mediaplayer with Multi Inputs and Outputs

Video Content play from 4K player (HDMI out)
Main Interface portals:
8x Pushbutton inputs
1x HDMI OUT
1x LAN (internet connection)
2x USB
1x Mini USB
1x SPDIF digital
1x Jack 3.5 AUX
1x MCU UART: Audio Connection portal to AudioPlayer-Controller

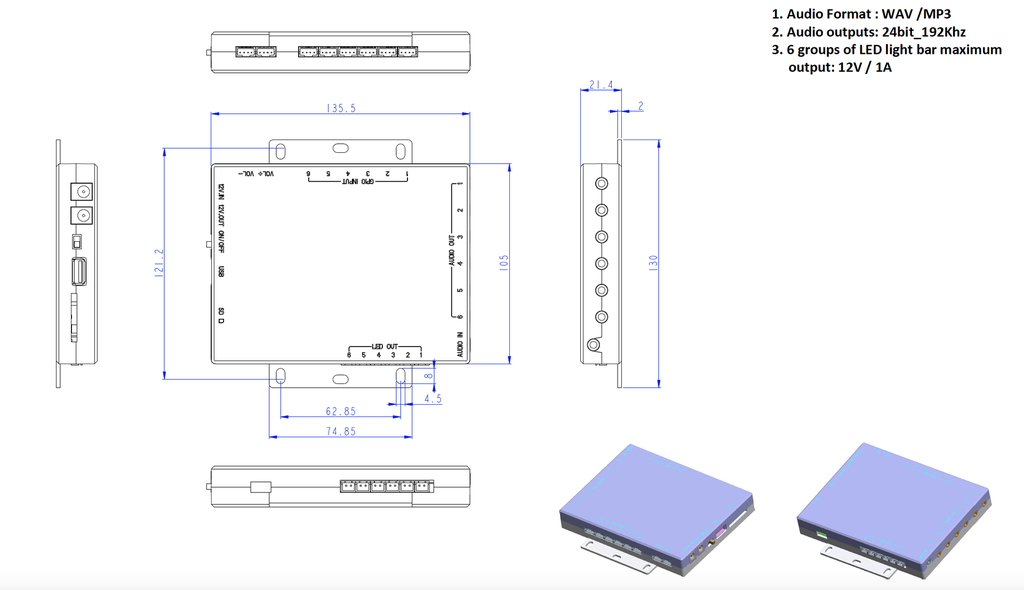

Playable AudioFormats: Audio Format : WAV /MP3
Audio Quality: 24bit_192Khz

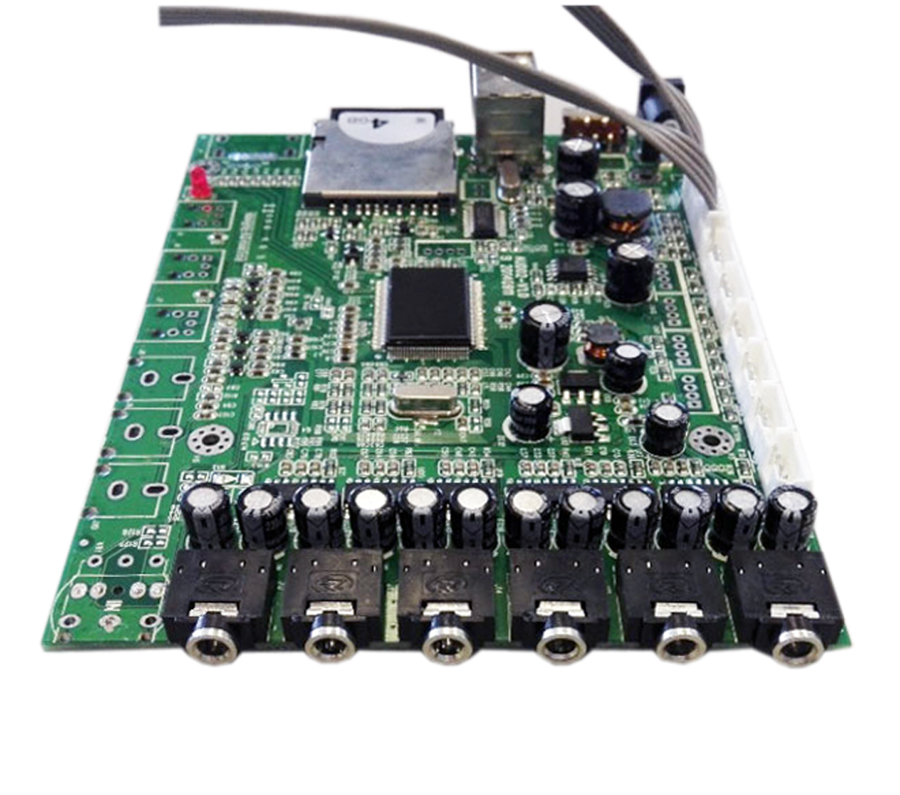

Audio Jacks & Pushbuttons 6x
LED light output: 6x 12V out for LED lightning strips (static or interactive with pushbuttons)

Interface - Connection portals:
SD Cardreader,
USB Portal,
6x 3.5mm Jack Output,
6x PushButton Input,
1x 3.5mm Jack Input (for mobile phone),
2x Input for Volume up/down PushButtons,
1x 12V IN,
1x 12V OUT,
1x MCU UART,
6x LED output 12V,
Housing type: Closed plastic housing

4K Resolution Mediaplayer for Retail demonstration (Speakers / Headphones / Soundbars)
Internal Android OS system, with Retail software app.
Internal Memory 16GB
6x input button for Selecting Video (JST connection) - Function can be adjusted according to needs.
2x input button for Volume up and down (JST connection)
6x output 3.5mm Jack portals
1x HDMI OUT
1x LAN
1x USB (files and auto update function)
1x USB (upgrade the internal OS system)
1x 12V IN
1x 12V OUT (optional)

Including 12V power adapter (AC-DC).

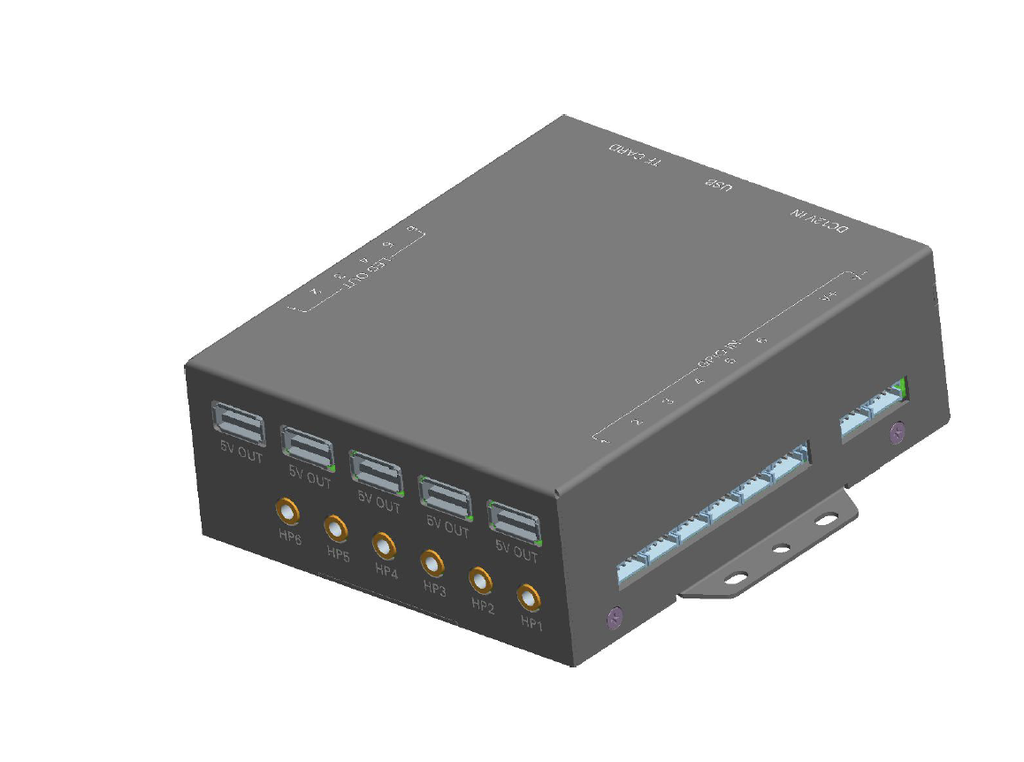

Interface - Connection portals: 6x 3.5mm Jack Output, Interface - Connection portals: 6x PushButton Input, Interface - Connection portals: 2x Input for Volume up/down PushButtons, Interface - Connection portals: 1x 12V IN, Interface - Connection portals: 6x LED output 12V, Interface - Connection portals: 6x USB portals 5V, Housing type: Closed metal housing, PowerAdapter: AC-DC 12V-6A power adapter

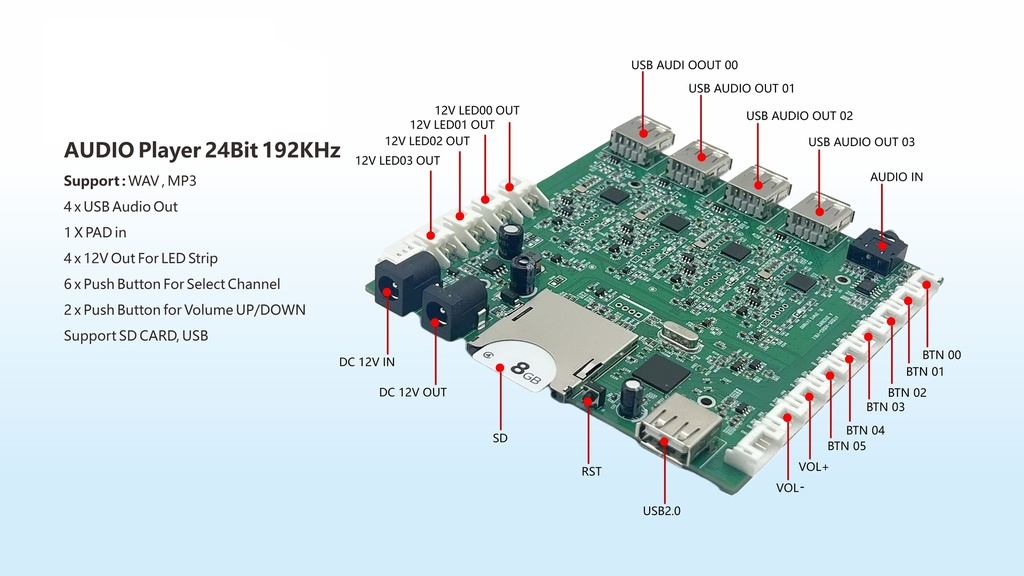

Playable AudioFormats: Audio Format : WAV /MP3, Interface - Connection portals: SD Cardreader, Interface - Connection portals: 1x USB Portal, Interface - Connection portals: 4x USB portal for Audio and Power, Interface - Connection portals: 4x 12V Out for Ledstrip, Interface - Connection portals: 6x Pushbutton for Select Channel, Interface - Connection portals: 2x Pushbutton for Volume Up/Down, Interface - Connection portals: 12V OUT portal, Interface - Connection portals: 12V IN portal, Interface - Connection portals: Reset Button, Interface - Connection portals: 1x Audio IN Jack, PowerAdapter: 1x 12V EU power adapter
