10.1inch Android Display - Touch - OpenFrame
Product Code: AC-1012OF-AIO-T-OS5.1-RK3288

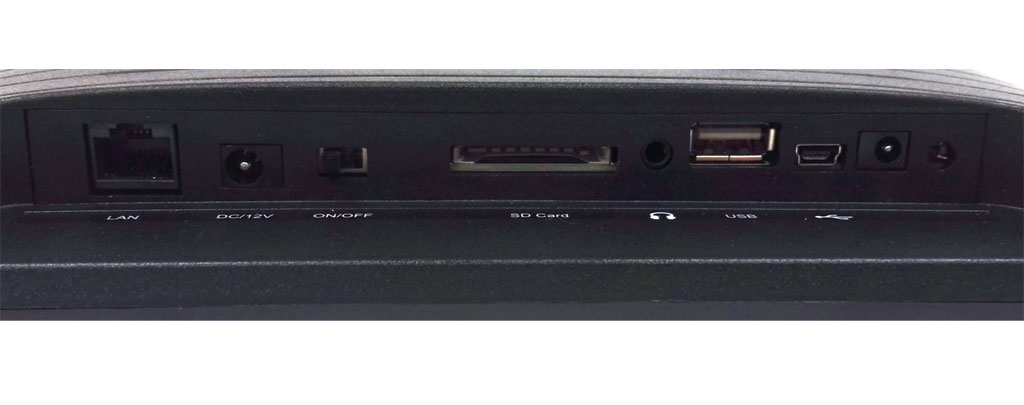

Screen size: 10.1inch, Screen type: Touchscreen - Capacitive, LCD Panel Type: IPS Panel, LCD Panel resolution: 1280*800, Interface - Connection portals: SD Cardreader, USB Portal, LAN input for Internetconnection - RJ45, 3.5mm Jack, Power Input DC 12V/1.5A, Operation System: Android 5.1 - Rockchip RK3288, Quad Core Cortex A17, 1.8G, Network options: Wifi, LAN/WLAN, Bluetooth 4.0, Memory: RAM 2GB - Internal Memory: 8GB, Usage: 14/7, Start-Up: AutoStart by plug-in the power-adapter, Speakers: Internal Speakers: 2x 2W-8Ohm, Camera: 2.0MP front camera, PowerAdapter: AC/DC 12V/1.5A, Ratio: 16:9, Mounting options: VESA 75x75mm - screwholes 4M, Mounting-strips/ears at the sides.
Including:
EU Power Adapter
Installation of your software:
Install your own software (or from your client) by USB Stick. Most public software APK files you can download from websites like www.apkmirror.com.
Note: this is a rooted industrial Android screen, which means the Google Playstore is mostly not working in many regions. Please install an other Store if needed.
10inch Android Display OpenFrame - Touch
Android 5.1 - RAM 2GB - 8GB Flash
This Android Display can be used in a commercial environment. The Display has Android 5.1 operating system. This professional display can be used for several solutions to inform / advise people in an attractive way.
NOTE:
Google
Play store is not always working in some regions, but do not be afraid:
most of the times you do not need this store.
You just can install your own/clients (signage) APK by USB Stick or
download it from a website and install it.
Quiet often, you can download APK files from www.apkmirror.com or
www.apkpure.com or ask your client for the APK needed to install.
The
benefit of not using the Google Playstore: you are not being watched by
Google and Google will not get your userdata which you do not want to
share with them anyway.
PS: if you really need Google Playstore, we can check if it is possible, but only for larger order quantites.
Android Displays OpenFrame
from very small 7inch up to 55 inch!
for digital signage and kiosk with openframe housing for built-in puposes.
List of Features
easy setup and plug and play
Auto Start when plug in the power adapter
Rooted Android 5.1 / Chip RK3288 / RAM 2GB-IM 8GB / CPU Quad core cortex A17, 1.8G
Capacitive Touch (10 point, optional Non Touch)
10" IPS LCD panel 1280x800 pixels (16:9 ratio)
WIFI, Bluetooth, optional LAN and 3G
SD cardreader and 1x USB portal
Internal Speakers
3.5mm Jack Output
Plastic Open Frame Housing
Color housing standard Black
12V Power adapter with 2.5 meter long cable
14/7: Usage up to 14 hours a day
Timer Clock Function (optional app)
Purposes
can be used in many places
Digital Signage Display
Built-in ShopDisplays
Advertisement Display
Shelf-edge Display
CounterDisplay
USAGE:
Plug in the power adapter, and immediately the Android display will turn on (no need to push a ON-OFF button).
You can hide the top and bottom bar in the Settings menu.
Install your software easily and lets play!
SIGNAGE SOFTWARE:
We can provide several kinds of software apps to play your content, remotely controlled, like our 'Signage App': control content by f.i. Dropbox and 'SbEND Signage'
OPTIONAL:
- We can install your software on the devices for larger order quantities
- Internal Memory can be upgraded
| Operation System | Android 5.1 - Rockchip RK3288 or Quad Core Cortex A17, 1.8G |
| Interface - Connection portals | SD Cardreader or USB Portal or LAN input for Internetconnection - RJ45 or 3.5mm Jack or Power Input DC 12V/1.5A |
| Network options | Wifi or LAN/WLAN or Bluetooth 4.0 |
| Screen size | 10.1inch |
| Screen type | Touchscreen - Capacitive |
| LCD Panel Type | IPS Panel |
| LCD Panel resolution | 1280*800 |
| Ratio | 16:9 |
| Start-Up | AutoStart by plug-in the power-adapter |
| Usage | 14/7 |
| Speakers | Internal Speakers: 2x 2W-8Ohm |

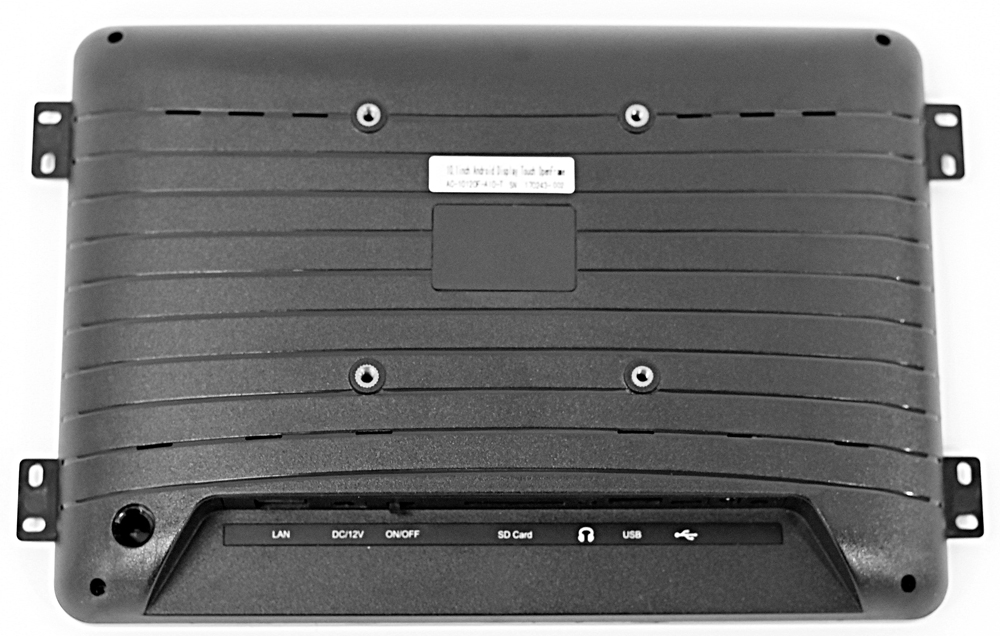

| Mounting options | VESA 75x75mm - screwholes 4M , VESA connection |
| Memory | RAM 2GB - Internal Memory: 8GB (optional 16GB) , RAM 2GB - Internal Memory: 8GB |
| Camera | 2.0MP front camera |
| PowerAdapter | AC/DC 12V/1.5A |
10inch Android Display OpenFrame - Touch
Android 5.1 - RAM 2GB - 8GB Flash
This Android Display can be used in a commercial environment. The Display has Android 5.1 operating system. This professional display can be used for several solutions to inform / advise people in an attractive way.
NOTE:
Google
Play store is not always working in some regions, but do not be afraid:
most of the times you do not need this store.
You just can install your own/clients (signage) APK by USB Stick or
download it from a website and install it.
Quiet often, you can download APK files from www.apkmirror.com or
www.apkpure.com or ask your client for the APK needed to install.
The
benefit of not using the Google Playstore: you are not being watched by
Google and Google will not get your userdata which you do not want to
share with them anyway.
PS: if you really need Google Playstore, we can check if it is possible, but only for larger order quantites.
Android Displays OpenFrame
from very small 7inch up to 55 inch!
for digital signage and kiosk with openframe housing for built-in puposes.
List of Features
easy setup and plug and play
Auto Start when plug in the power adapter
Rooted Android 5.1 / Chip RK3288 / RAM 2GB-IM 8GB / CPU Quad core cortex A17, 1.8G
Capacitive Touch (10 point, optional Non Touch)
10" IPS LCD panel 1280x800 pixels (16:9 ratio)
WIFI, Bluetooth, optional LAN and 3G
SD cardreader and 1x USB portal
Internal Speakers
3.5mm Jack Output
Plastic Open Frame Housing
Color housing standard Black
12V Power adapter with 2.5 meter long cable
14/7: Usage up to 14 hours a day
Timer Clock Function (optional app)
Purposes
can be used in many places
Digital Signage Display
Built-in ShopDisplays
Advertisement Display
Shelf-edge Display
CounterDisplay
USAGE:
Plug in the power adapter, and immediately the Android display will turn on (no need to push a ON-OFF button).
You can hide the top and bottom bar in the Settings menu.
Install your software easily and lets play!
SIGNAGE SOFTWARE:
We can provide several kinds of software apps to play your content, remotely controlled, like our 'Signage App': control content by f.i. Dropbox and 'SbEND Signage'
OPTIONAL:
- We can install your software on the devices for larger order quantities
- Internal Memory can be upgraded
