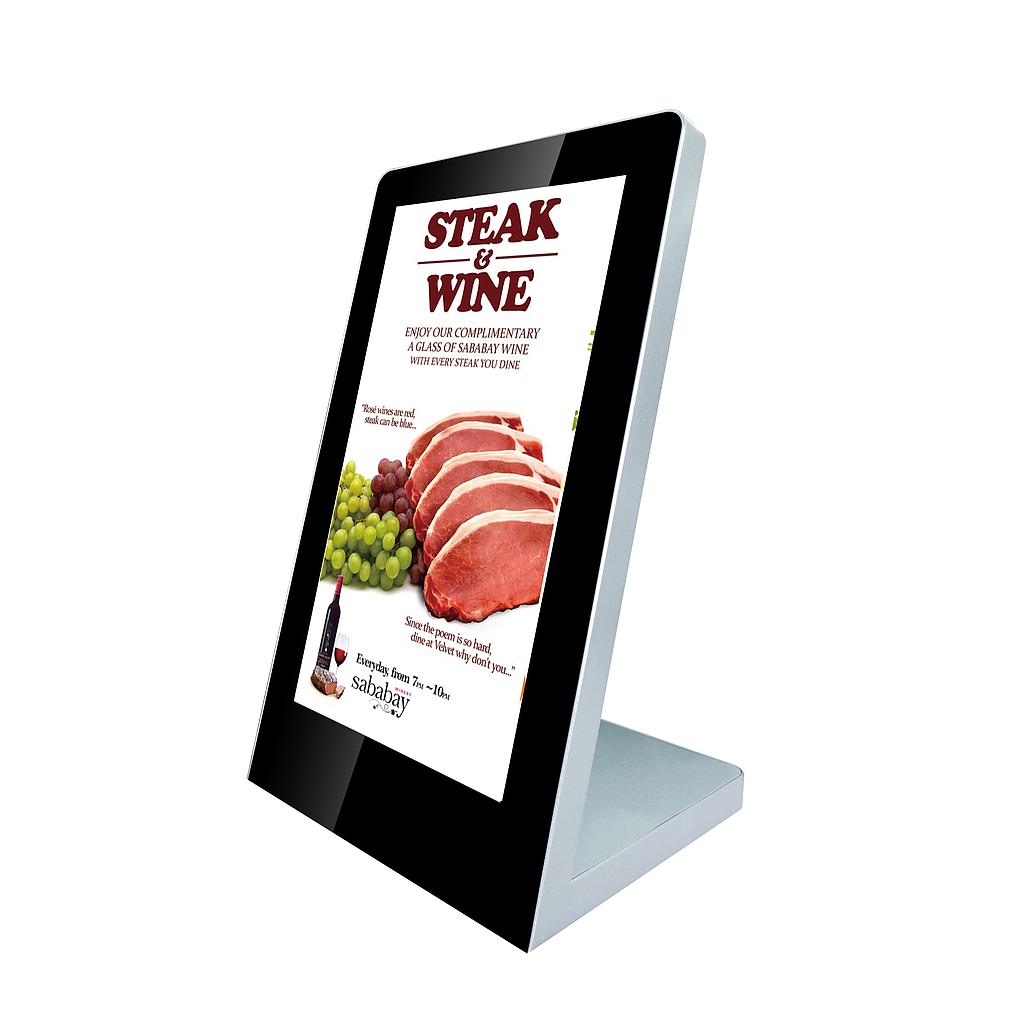

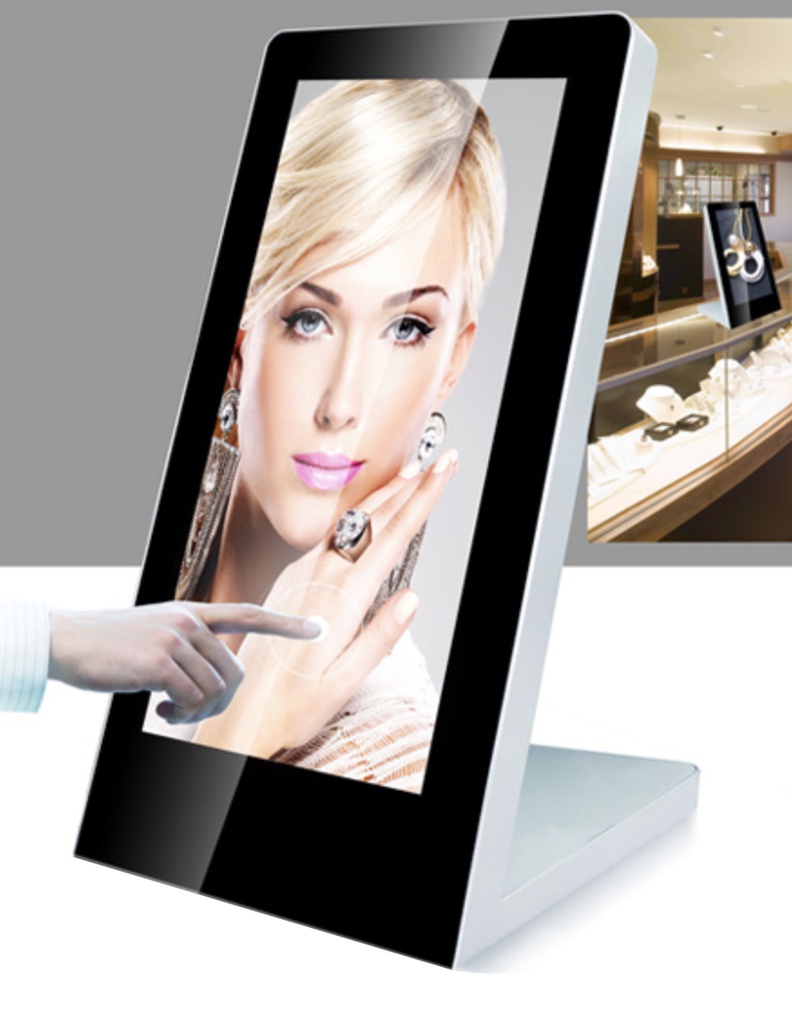

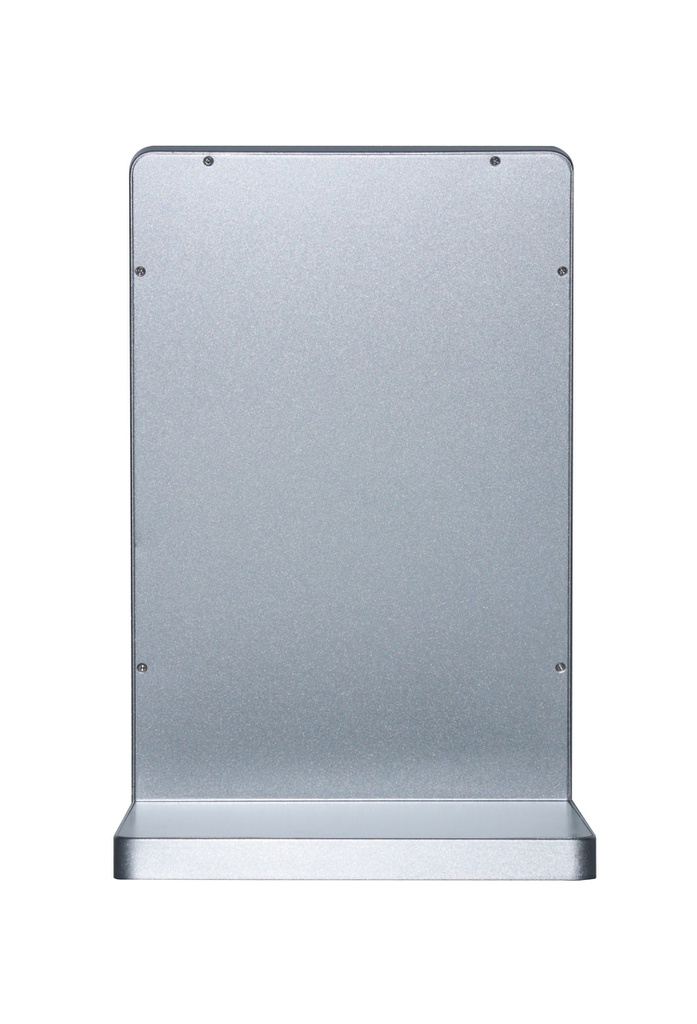

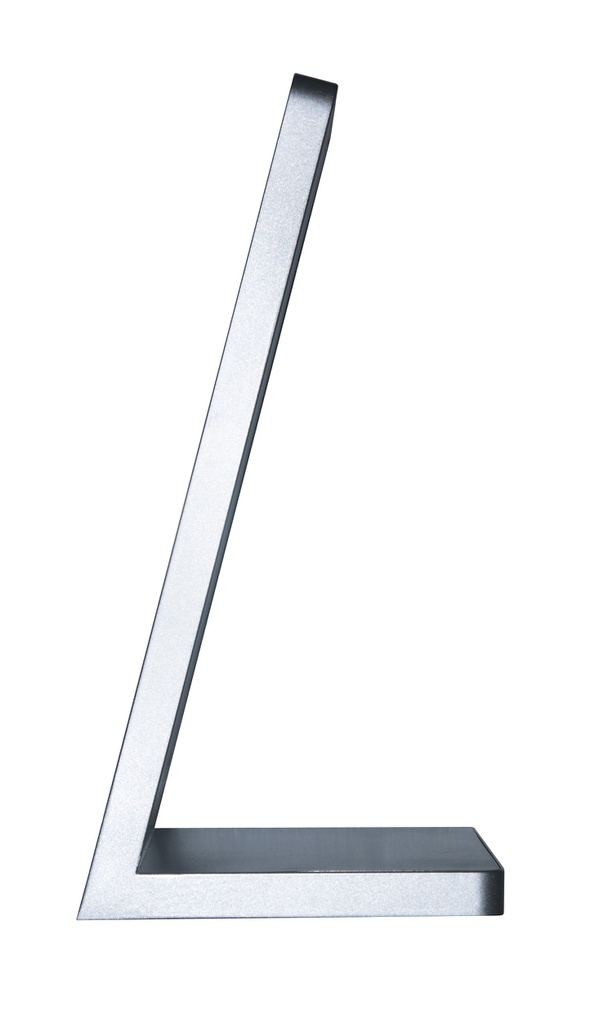

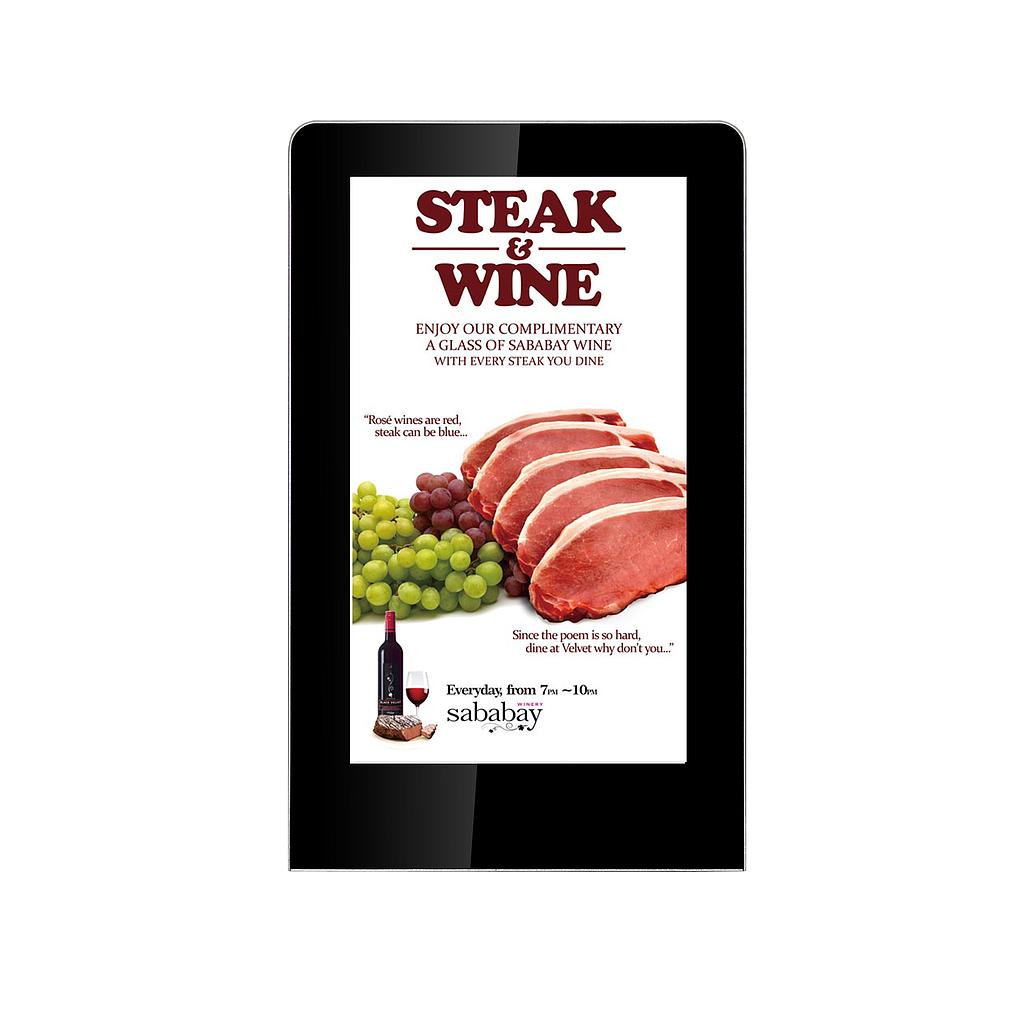

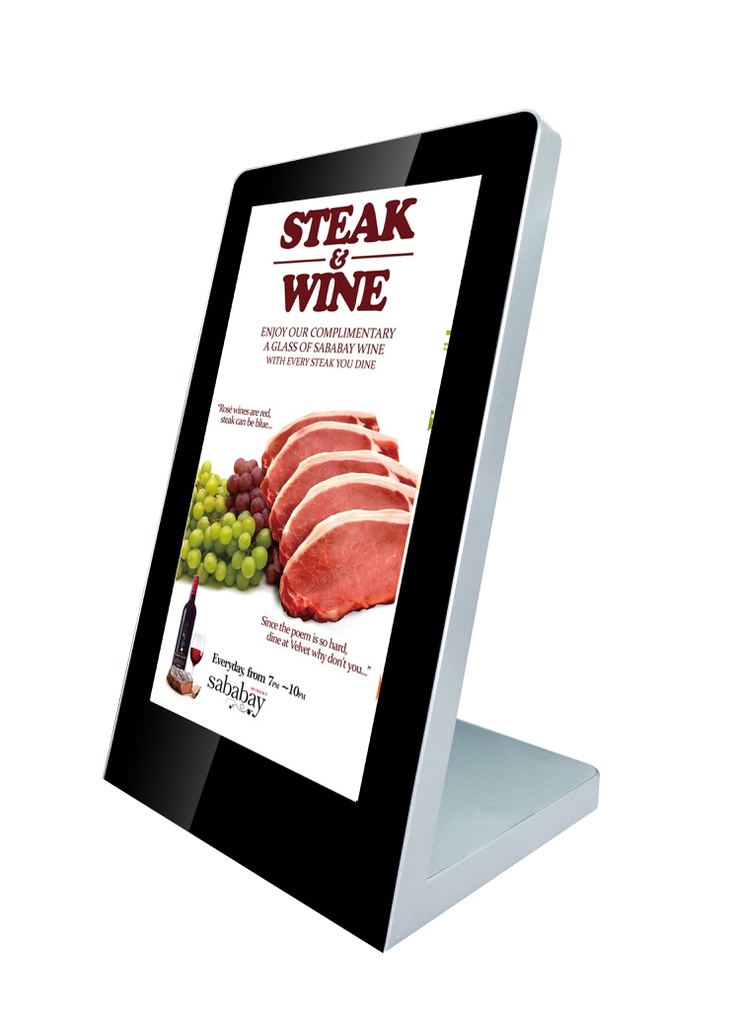

15,6inch Android Display - TouchScreen - Counter Model

Product Code: RS-1562AIO-T

Screen size: 15.6inch
Screen type: Touchscreen - Capacitive
LCD Panel Type: LCD
LCD Panel resolution: 1920*1080
Ratio: 16:9
Optional Features: 3G Network via USB-SimCard Dongle
Resolution Internal VideoPlayer: 1920*1080
Housing type: Counter Model
Mounting options: Counter Model
Internal Memory + AutoCopy Content: 8GB


30-day money-back guarantee
Free Shipping in U.S.
Buy now, get in 2 days

Odoo image and text block

Android counter display

Our Android Displays are commercial models, specially designed and to use in a retail environment, online digital signage screens, info touch kiosk, etcetera.

The Android has a standard some programm apps installed, like a browser, google play store, explorer, and some extra apps.

You can install your own application on it. For instance a digital signage app or kiosk web app, webstore, etcetera.

We can also provide and help you with some retail app solutions, to help you to start your project. Find more about these apps at the software section.

These Android Displays have the following features:

  • - Touchscreen & Non-Touchscreen
  • - ROOTED ANDROID 5.1 sofware version
  • - WIFI network
  • - LAN (RJ45) input socket
  • - 3G connection via USB SIM dongle (optional, not included)



How does it work?

Watch this video to have an more detailed explanation how these Android screens work.



List of Features

easy setup and plug and play!


Auto Start when plug in the power adapter

Rooted Android 5.1 / Chip RK3288 / RAM 2GB-IM 8GB / CPU Quad core cortex A17, 1.8G

TouchScreen (10 points, optional Non Touch)


15.6" TFT LCD panel 1920x1080 pixels (16:9 ratio)

Internal HD videoplayer 1080P

WIFI, Bluetooth, optional LAN and 3G

SD Cardreader, 2x USB portal, LAN (RJ45) and HDMI Output

Internal Speakers

Thin Closed Frame Plastic Housing

Color housing standard Black

12V Power adapter with 2.5 meter long cable

14/7: Usage up to 14 hours a day

Timer Clock Function (optional app)


Purposes

can be used in many places

Digital Signage Display



Built-in ShopDisplays



Advertisement Display



Shelf-edge Display



CounterDisplay




USAGE:

Plug in the power adapter, and immediately the Android display will turn on (no need to push a ON-OFF button).

You can hide the top and bottom bar in the Settings menu.

Install your software easily and lets play!


OPTIONAL:

- Internal Memory can be upgraded

- We can install your software on the devices for larger order quantities.


MORE SPECS:

see SPECIFICATIONS TAB or download the specification sheet in the DOWNLOAD TAB above.

Screen type

Touchscreen - Capacitive

Operation System

Android 5.1 - Rockchip RK3288 , Quad Core Cortex A17, 1.8G

Screen size

15.6inch

Housing type

Counter Model

LCD Panel resolution

1920*1080

Ratio

16:9

LCD Panel Type

LCD

Resolution Internal VideoPlayer

1920*1080

Interface - Connection portals

HDMI OUT , SD Cardreader , LAN input for Internetconnection - RJ45 , Power Input DC 12V/1.5A , 2x USB 2.0

Optional Features

3G Network via USB-SimCard Dongle

Mounting options

Counter Model

Internal Memory + AutoCopy Content

8GB
