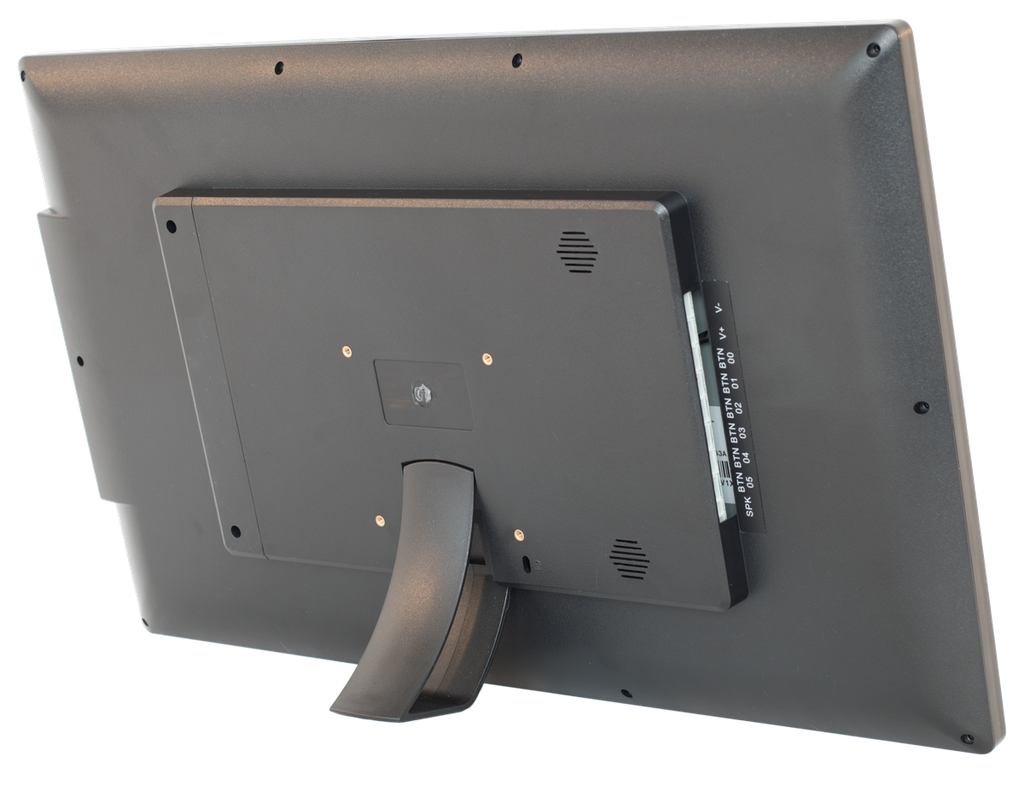

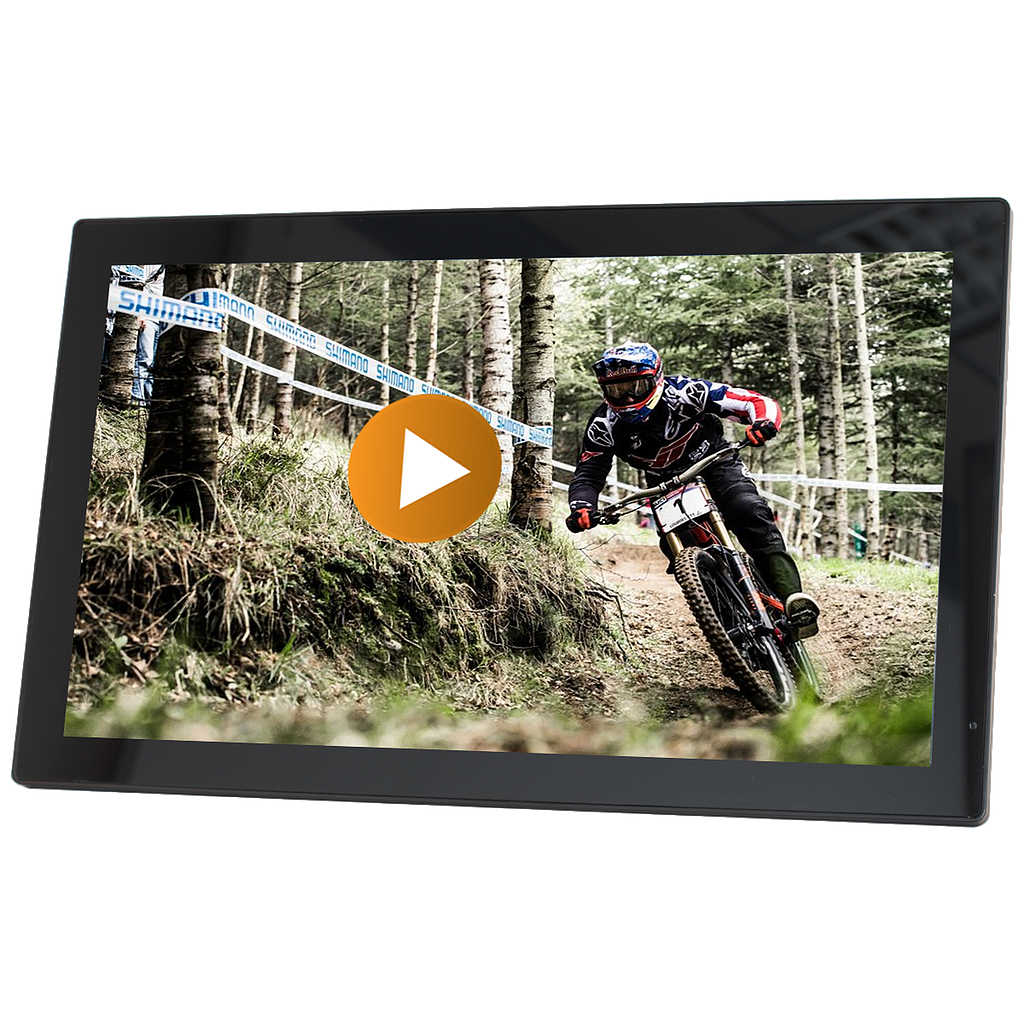

18,5inch MediaScreen Plastic Housing Multi

Product Code: AC-185PH-HD-MULTI

Screen size: 18.5inch
Screen type: LCD screen only - no touch
LCD Panel Type: LCD
LCD Panel resolution: 1366*768
Ratio: 16:9
Housing type: Closed plastic housing
Usage: 14/7
Speakers: Internal Speakers: 2x 2W-8Ohm
Mounting options: VESA screwholes
PowerAdapter: AC/DC 12V/5A
Features: Inputs for Press Buttons (8x)


30-day money-back guarantee
Free Shipping in U.S.
Buy now, get in 2 days

18.5inch Closed Frame MediaScreen - AutoStart-Play Video or Slides

• AutoStart when you switch on the shop electricity

• Plays directly the Video and / or Slideshow when you turn on the display

• Auto Loop: plays video / slideshow continuously in a loop.

• Auto ON-OFF clock to set up shop opening and closing times.

• Optional: OTG Function: AutoUpdate content by USB Stick (please request us!)

• Additional: Interactive triggers and sensors, see below more info.

These models are available in: 7 / 10.1 / 11.6 / 13.3 / 14 / 15.6 / 18.5 / 21.5 / 24 / 27 / 32inch







Example video with Press button option ==>>

Contact us




MediaScreens: How does it work?

Watch the video to see how our MediaScreens work and what can be added additionally.

In this video we demonstrate our closed frame and open-frame mediascreen models and also some short demonstration about external features, such as External selection buttons, RFID trigger, LED lightning and Motion sensor.

You can find more information about the additional triggers via the section: Add Ons - Triggers, Sensors & Light


Contact us




RFID Budget Solution!

Lift or Place and Learn. It is a all-in-one solution. The RFID sensors are directly plugged into the mediaboard in the backside of the screen. No programming needed. Just rename your video the same as the RFID sticker code and load it on a SD Card and you are ready to go!




ADD ON's for these screens:

Odoo CMS - a big picture

triggers, sensors, light, touch

Many kind of interactive elements can be plugged in our screens, plug and play and easy setup for content playing.

ask for our solutions, the setup can be made upon your custom demands!

List of Features

easy setup and plug and play!
Auto Start - Play - Loop your content (video/slides)

Timer Clock Function (Optional)

18.5" LCD panel 1366*768 pixels

Internal HD videoplayer 1080P

SD cardreader and USB portal

Internal Speakers

3.5mm Jack Output

Remote Controll

Closed Plastic Housing

Mounting: side strips for easy built-in

Color housing standard Black

12V Power adapter with 2.5 meter long cable

14/7: Usage up to 14 hours a day




  • ADD INTERACTIVE FEATURES:


    - Trigger Buttons for selection video / volume combined with LED lighting

    - Output for LED lightning 5V/12V

    - Motion Sensor / Lift-up light Sensor

    - Multiple Audio Outputs for Speakers & Headphones

    - Input Audio for Mobile Phone / iPod (auto-sensing)

    - TouchScreen

    - External Speakers

    - 8D-Cell Batterybox for battery operated power

    - Internal Memory to load your content on it.

    - AutoCopy function by USB Stick to internal memory.

    - Software adjustments for you needs

USAGE:

This MediaScreen has an Internal VideoPlayer with Full HD resolution (1080P).

Plug in a SD card or USB Stick with your content and directly play your video

(or slideshow). It will play your video(s) continiously in a loop.

The timer function can be used for Automatic On-Off (optional, not included).



LCD Panel Type

LCD

Housing type

Closed plastic housing

Screen size

18.5inch

Screen type

LCD screen only - no touch

LCD Panel resolution

1366*768

Ratio

16:9

Interface - Connection portals

SD Cardreader , USB Portal , Internal speakers (2) , Power Input DC 12V/5A

Mounting options

VESA screwholes

PowerAdapter

AC/DC 12V/5A

Usage

14/7

Features

Inputs for Press Buttons (8x)

Speakers

Internal Speakers: 2x 2W-8Ohm
