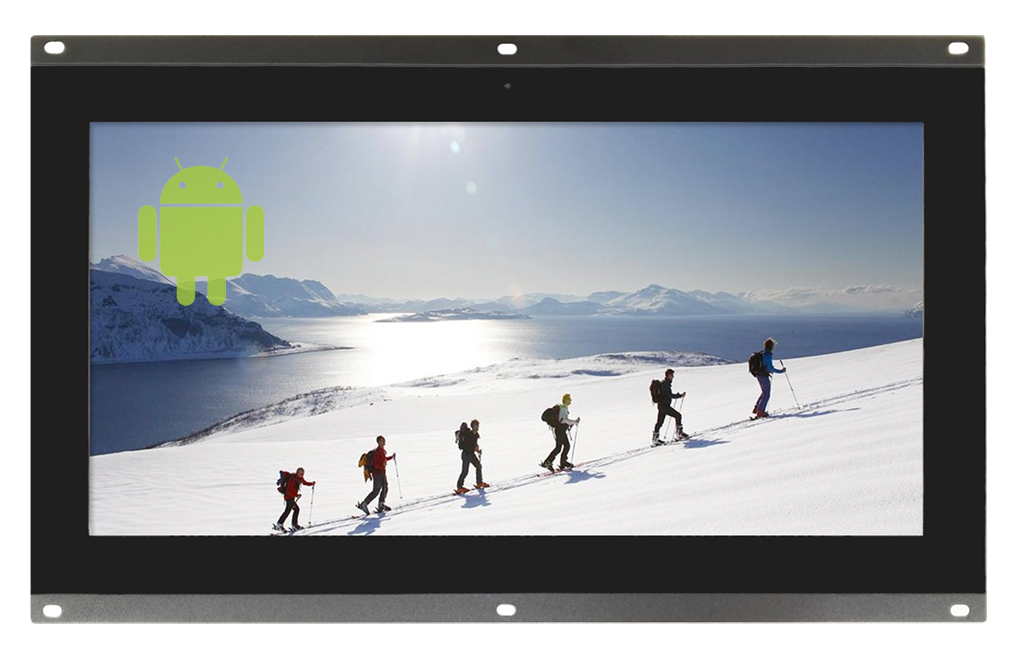

15.6inch Android Display - Non Touch - Open Metal Frame
Product Code: AC-1562OMF-AIO-OS8.1-RK3288
Screen type: Non-Touchscreen, Operation System & CPU: Quad Core Cortex A17, 1.8G, Rooted, Android 8.1- Rockchip RK3288, Screen size: 15.6inch, Housing type: Open Metal Frame, LCD Panel resolution: 1920*1080, Ratio: 16:9, LCD Panel Type: IPS Panel, Resolution Internal VideoPlayer: 1080P, Interface - Connection portals: 3.5mm Jack, USB Portal, SD/MMC Cardreader, LAN input for Internet connection - RJ45, Power Input DC 12V/1.5A, Mounting options: Mounting Strips, Memory: RAM 1GB - Internal Memory 8GB, Speakers: Internal Speakers: 2x 2W-8Ohm, Start-Up: AutoStart by plug-in the power-adapter, Camera: 2.0MP front camera, PowerAdapter: AC/DC 12V/1.5A, Usage: 14/7, Network options: Bluetooth 4.0, Wi-Fi, LAN/WLAN
Including:
EU Power Adapter
Installation of your software:
Install your own software (or from your client) by USB Stick. Most public software APK files you can download from websites like www.apkmirror.com.
Note: this is a rooted industrial Android screen, which means the Google Playstore is mostly not working in many regions. Please install an other Store if needed.
Android Displays OpenFrame
from very small 7inch up to 55 inch!
for digital signage and kiosk with open frame housing for built-in purposes.
List of Features
easy setup and plug and play
Rooted Android 6.0 / Chip RK3288 / RAM 1GB-IM 8GB / CPU Quad core cortex A7, 1.2G
NON-touchscreen.
15.6" IPS panel 1920x1080pixels (16:9 ratio)
Internal HD videoplayer 1080P
WIFI, Bluetooth, optional LAN and 3G
SD cardreader and 1x USB portal
Internal Speakers
3.5mm Jack Output
Open Metal Frame
Color housing standard Black, Optional white.
12V Power adapter with 2.5-meter long cable
14/7: Usage up to 14 hours a day
Timer Clock Function (optional app)
Purposes
can be used in many places
Digital Signage Display
Built-in ShopDisplays
Advertisement Display
Shelf-edge Display
CounterDisplay
USAGE:
Plug in the power adapter, and immediately the Android display will turn on (no need to push an ON-OFF button).
You can hide the top and bottom bar in the Settings menu.
Install your software easily and let's play!
OPTIONAL:
- Internal Memory can be upgraded
- We can install your software on the devices for larger order quantities
- Several kinds of brackets for hangup
- Similar sizes available: 8inch
MORE SPECS:
see SPECIFICATIONS TAB or download the specification sheet in the DOWNLOAD TAB above.
| Optional Features | Software Systems for Digital Signage & Kiosks or 3G Network via USB-SimCard Dongle or 3G Antenna |
| Operation System | Quad Core Cortex A17, 1.8G or Rooted or Android 8.1 - RockChip RK3288 |
| Interface - Connection portals | SD/MMC Cardreader or USB Portal or LAN input for Internetconnection - RJ45 or 3.5mm Jack or Power Input DC 12V/1.5A |
| Network options | Wi-Fi or LAN/WLAN or Bluetooth 4.0 or Mobile Network (3G-4G) - Optional by USB SIM Dongle |
| Screen size | 15.6inch |
| Screen type | Non-Touchscreen |
| LCD Panel Type | IPS Panel |
| LCD Panel resolution | 1920*1080 |
| Ratio | 16:9 |
| Resolution Internal VideoPlayer | 1920*1080 |
| Housing type | Open Metal Frame |
| Start-Up | AutoStart by plug-in the power-adapter |
| Usage | 14/7 |
| Speakers | Internal Speakers: 2x 2W-8Ohm |
| Mounting options | Mounting Strips |
| Memory | RAM 1GB - Internal Memory 8GB (optional 2GB - 16GB) |
| Camera | 2.0MP front camera |
| PowerAdapter | AC/DC 12V/1.5A |
Android Displays OpenFrame
from very small 7inch up to 55 inch!
for digital signage and kiosk with open frame housing for built-in purposes.
List of Features
easy setup and plug and play
Rooted Android 6.0 / Chip RK3288 / RAM 1GB-IM 8GB / CPU Quad core cortex A7, 1.2G
NON-touchscreen.
15.6" IPS panel 1920x1080pixels (16:9 ratio)
Internal HD videoplayer 1080P
WIFI, Bluetooth, optional LAN and 3G
SD cardreader and 1x USB portal
Internal Speakers
3.5mm Jack Output
Open Metal Frame
Color housing standard Black, Optional white.
12V Power adapter with 2.5-meter long cable
14/7: Usage up to 14 hours a day
Timer Clock Function (optional app)
Purposes
can be used in many places
Digital Signage Display
Built-in ShopDisplays
Advertisement Display
Shelf-edge Display
CounterDisplay
USAGE:
Plug in the power adapter, and immediately the Android display will turn on (no need to push an ON-OFF button).
You can hide the top and bottom bar in the Settings menu.
Install your software easily and let's play!
OPTIONAL:
- Internal Memory can be upgraded
- We can install your software on the devices for larger order quantities
- Several kinds of brackets for hangup
- Similar sizes available: 8inch
MORE SPECS:
see SPECIFICATIONS TAB or download the specification sheet in the DOWNLOAD TAB above.
