10.1inch MediaScreen with Multi Features Board - 480P

Product Code: AC-101OMF-IPS-MULTI-480P


30-day money-back guarantee
Free Shipping in U.S.
Buy now, get in 2 days



RFID Budget Solution!

Lift or Place and Learn. It is a all-in-one solution. The RFID sensors are directly plugged into the mediaboard in the backside of the screen. No programming needed. Just rename your video the same as the RFID sticker code and load it on a SD Card and you are ready to go!






Place and Learn

Place a product on a certain area and the information will pop on the screen. In this case we have a RFID Solution connected to Android OS Screen. More additional features are possible:

LED light strip, Motion Sensor, Touch & Press buttons, Pickup Security, etcetera




Screen + Light + Pushbutton

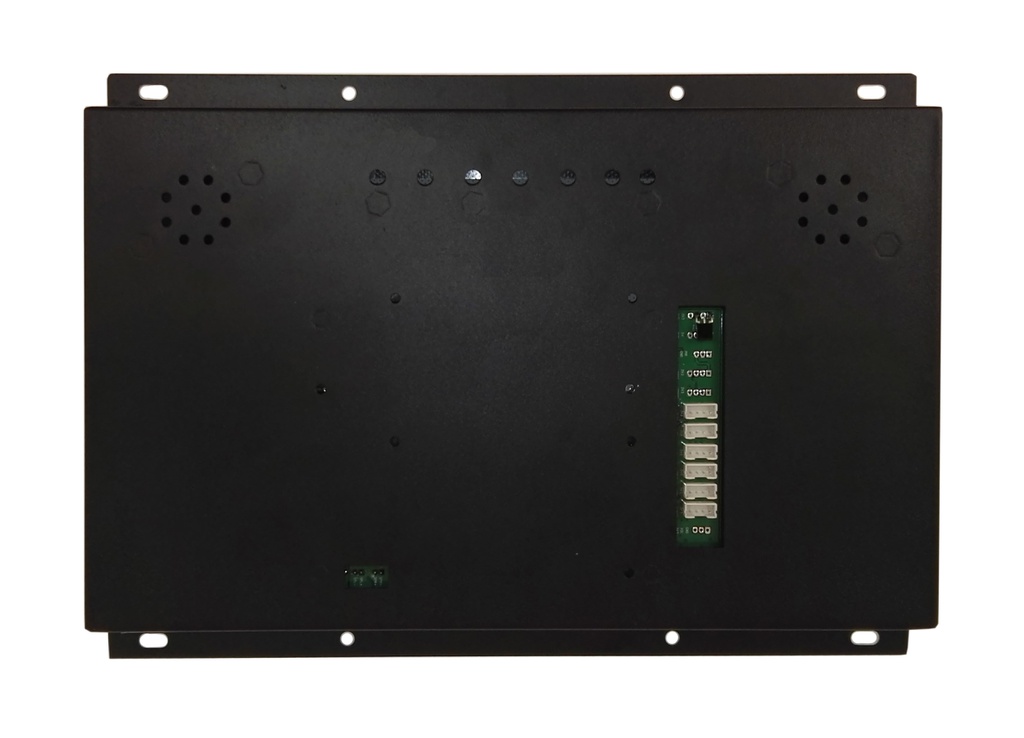

Budget All-in-One Solution. Just plug in a SD Card and content will roll. No programming needed!! In backside screen you can easy plug in LED strips and cables for the press buttons. More sensors and triggers can be added!






Example video with Press button option ==>>




ADD ON's for these screens:



triggers, sensors, light, touch

Many kind of interactive elements can be plugged in our screens, plug and play and easy setup for content playing.

ask for our solutions, the setup can be made upon your custom demands!

List of Features

easy setup and plug and play!
Auto Start - Play - Loop your content (video/slides)


Timer Clock Function (Optional)

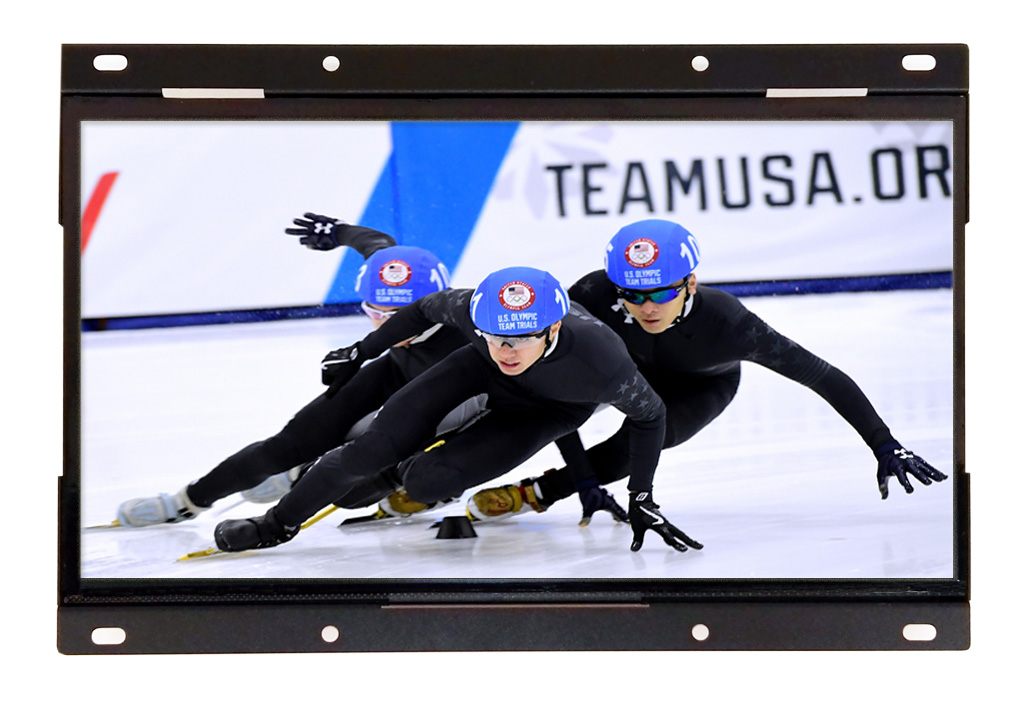

10.1" IPS panel 1280x720 pixels


Internal HD videoplayer 480P


SD cardreader and USB portal


Internal Speakers


3.5mm Jack Output


Remote Controll

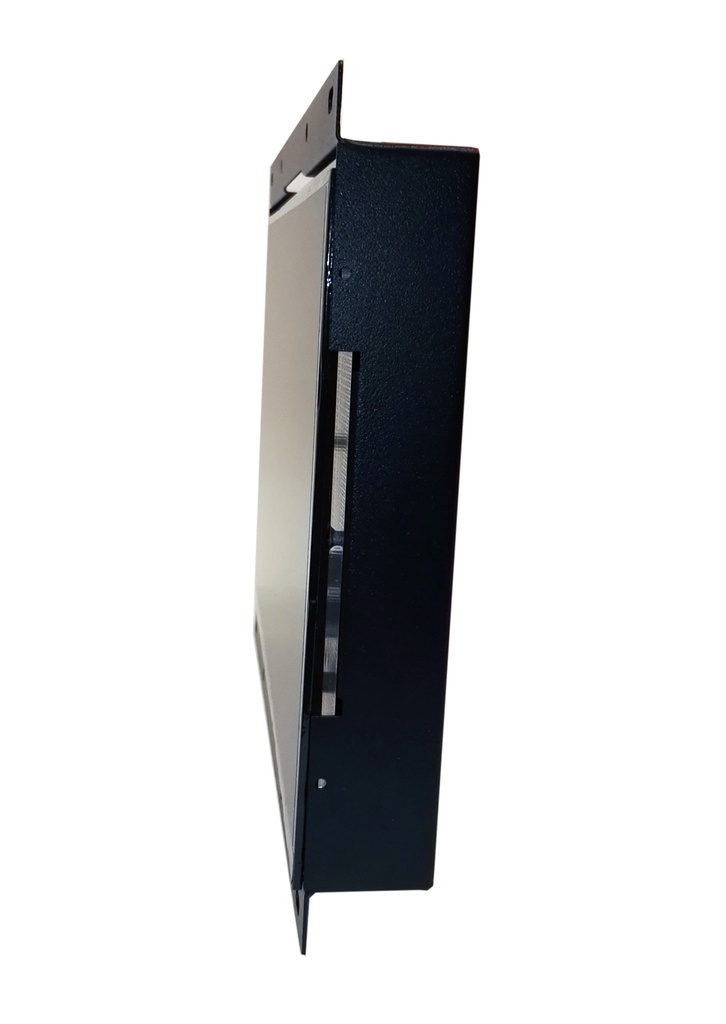

Open Metal Frame


Mounting: side strips for easy built-in


Color housing standard Black


12V Power adapter with 2.5 meter long cable


14/7: Usage up to 14 hours a day




  • ADD INTERACTIVE FEATURES:


    - Trigger Buttons for selection video / volume combined with LED lighting

    - Output for LED lightning 5V/12V

    - Motion Sensor / Lift-up light Sensor

    - Multiple Audio Outputs for Speakers & Headphones

    - Input Audio for Mobile Phone / iPod (auto-sensing)

    - TouchScreen

    - External Speakers

    - 8D-Cell Batterybox for battery operated power

    - Internal Memory to load your content on it.

    - AutoCopy function by USB Stick to internal memory.

    - Software adjustments for you needs

USAGE:

This MediaScreen has an Internal VideoPlayer with Full HD resolution (1080P).

Plug in a SD card or USB Stick with your content and directly play your video

(or slideshow). It will play your video(s) continiously in a loop.

The timer function can be used for Automatic On-Off (optional, not included).


This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products

Screen size

10.1inch

Screen type

LCD screen only - no touch

LCD Panel Type

IPS Panel

LCD Panel resolution

1280*720

Ratio

16:10

Interface - Connection portals

HDMI IN , SD Cardreader , USB Portal , 3.5mm Jack , Power Input DC 12V/1.5A

Resolution Internal VideoPlayer

480P

Housing type

Black Metal Housing

Start-Up

AutoStart by plug-in the power-adapter

Usage

14/7

Speakers

Internal Speakers: 2x 2W-8Ohm

PowerAdapter

AC/DC 12V/1.5A
