10.1inch MediaScreen with Multi Features Board

Product Code: AC-101OF-IPS-MULTI


30-day money-back guarantee
Free Shipping in U.S.
Buy now, get in 2 days

10.1inch OpenFrame MediaScreen - AutoStart-Play Video or Slides

• AutoStart when you switch on the shop electricity

• Plays directly the Video and / or Slideshow when you turn on the display

• HDMI IN to connect external player

• Auto Loop: plays video / slideshow continuously in a loop.

• Auto ON-OFF clock to set up shop opening and closing times.

• Optional: OTG Function: AutoUpdate content by USB Stick (please request us!)

• Additional: Interactive triggers and sensors, see below more info.

These models are available in: 7 / 10.1 / 11.6 / 13.3 / 14 / 15.6 / 18.5 / 21.5 / 24 / 27 / 32inch




MediaScreens: How does it work?

Watch the video to see how our MediaScreens work and what can be added additionally.

In this video we demonstrate our closed frame and open-frame mediascreen models and also some short demonstration about external features, such as External selection buttons, RFID trigger, LED lightning and Motion sensor.

You can find more information about the additional triggers via the section: Add Ons - Triggers, Sensors & Light

Contact us







RFID Budget Solution!

Lift or Place and Learn. It is a all-in-one solution. The RFID sensors are directly plugged into the mediaboard in the backside of the screen. No programming needed. Just rename your video the same as the RFID sticker code and load it on a SD Card and you are ready to go!







Place and Learn

Place a product on a certain area and the information will pop on the screen. In this case we have a RFID Solution connected to Android OS Screen. More additional features are possible:

LED light strip, Motion Sensor, Touch & Press buttons, Pickup Security, etcetera




Screen + Light + Pushbutton

Budget All-in-One Solution. Just plug in a SD Card and content will roll. No programming needed!! In backside screen you can easy plug in LED strips and cables for the press buttons. More sensors and triggers can be added!







Example video with Press button option ==>>




ADD ON's for these screens:

Odoo CMS - a big picture

triggers, sensors, light, touch

Many kind of interactive elements can be plugged in our screens, plug and play and easy setup for content playing.

ask for our solutions, the setup can be made upon your custom demands!

List of Features

easy setup and plug and play!
Auto Start - Play - Loop your content (video/slides)


Timer Clock Function (Optional)


10.1" IPS panel 1280x800 pixels


HDMI IN & Internal HD videoplayer 1080P


SD cardreader and USB portal


Internal Speakers


3.5mm Jack Output


Remote Controll


Open Plastic Frame


Mounting: side strips for easy built-in


Color housing standard Black


12V Power adapter with 2.5 meter long cable


14/7: Usage up to 14 hours a day




  • ADD INTERACTIVE FEATURES:


    - Trigger Buttons for selection video / volume combined with LED lighting

    - Output for LED lightning 5V/12V

    - Motion Sensor / Lift-up light Sensor

    - Multiple Audio Outputs for Speakers & Headphones

    - Input Audio for Mobile Phone / iPod (auto-sensing)

    - TouchScreen

    - External Speakers

    - 8D-Cell Batterybox for battery operated power

    - Internal Memory to load your content on it.

    - AutoCopy function by USB Stick to internal memory.

    - Software adjustments for you needs

USAGE:

This MediaScreen has an Internal VideoPlayer with Full HD resolution (1080P).

Plug in a SD card or USB Stick with your content and directly play your video

(or slideshow). It will play your video(s) continiously in a loop.

The timer function can be used for Automatic On-Off (optional, not included).



Recently viewed Products

Screen size

10.1inch

Screen type

LCD screen only - no touch

LCD Panel Type

IPS Panel

LCD Panel resolution

1280*800

Optional Features

External Motion Sensor , (External) RFID Trigger , (External) Touch Buttons - capacitive , (External) Light Sensor , (External) Pushbuttons , (External) Speakers , Audio Jack 3.5mm Output , HDMI IN portal

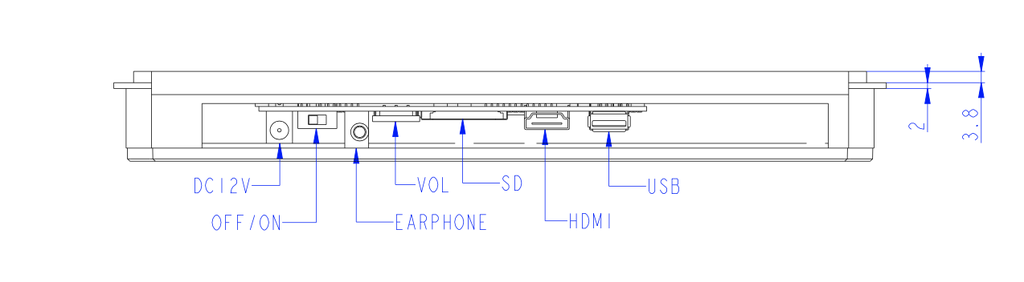

Interface - Connection portals

HDMI IN , SD Cardreader , USB Portal

Housing type

Open Plastic Frame

Usage

14/7

Mounting options

Mounting Strips

PowerAdapter

AC/DC 12V/1.5A

Accessories

Remote Control

Function

Monitor - HDMI IN

Additional features

Internal Mediaplayer 1080P
