10.1inch Monitor - No Frame - IPS Panel - Components Only - HDMI Input

Product Code: AC-101NF-HDMI-IPS-COMP

Screen size: 10.1inch
Screen type: LCD screen only - no touch
LCD Panel Type: IPS Panel
LCD Panel resolution: 1280*800
Ratio: 16:9
Resolution Internal VideoPlayer: 1080P
Housing type: No Frame (components only)
Speakers: Internal Speakers: 2x 2W-8Ohm


30-day money-back guarantee
Free Shipping in U.S.
Buy now, get in 2 days

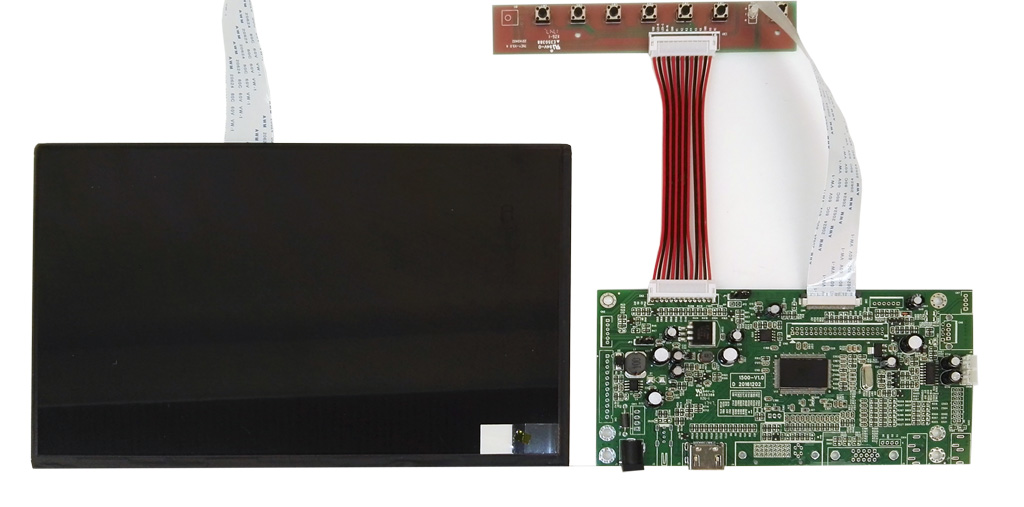

10.1inch Monitor Set

IPS Panel + PCB Board - Components Only

Contact us

ADD ON's for these screens:

Odoo CMS - a big picture

triggers, sensors, light, touch

Many kind of interactive elements can be plugged in our screens, plug and play and easy setup for content playing.

ask for our solutions, all can be made on custom demands



List of Features

easy setup and plug and play!

Auto Start - Play - Loop your content (video/slides)



HDMI Input portal



LCD Panel 1280x800 pixels (16:9 ratio)



Internal Speakers



No Frame - for built-in purpose



14/7: Usage up to 14 hours a day



12V Power Adapter with 2.5 meter long cable






Purposes

can be used in many places

Built-in ShopDisplays



Connect a external player, like a PC Computer or MediaPlayer for f.i. Digital Signage Display / Advertisement Display



USAGE:

This Monitor can be easily used for built-in a display. Just connect the HDMI and play. The mainboard can optionally come with extra in-outputs for interactivity, see the options below.

OPTIONAL:

The mainboard can be turned into a multi-functionborad, serveral in-outputs can be added, and software can be made Tailormade.

Example features:

- Trigger buttons for selection video / volume combined with LED lighting

- Output for LED lighting 5/12V

- Motion Sensor / Lift-up light Sensor

- Multiply Audio Outputs for speakers & headphones

- Input Audio for Mobile Phone / iPod (auto-sensing)

- Touchscreen


Screen size

10.1inch

Screen type

LCD screen only - no touch

LCD Panel Type

IPS Panel

LCD Panel resolution

1280*800

Interface - Connection portals

SD Cardreader , USB Portal , 3.5mm Jack , Power Input DC 12V/1.5A

Resolution Internal VideoPlayer

1080P

Ratio

16:9

Housing type

No Frame (components only)

Speakers

Internal Speakers: 2x 2W-8Ohm
