10.1inch Android Display - Touch + 3G

Product Code: AC-1011AIO-T-3G-OS4.4-RK3188


30-day money-back guarantee
Free Shipping in U.S.
Buy now, get in 2 days

Odoo CMS - a big picture
Odoo image and text block

Android Display

Our Android Displays are commercial models, specially designed and to use in a retail environment, online digital signage screens, info touch kiosk, etcetera.

The Android has a standard some programm apps installed, like a browser, google play store, explorer, and some extra apps.

You can install your own application on it. For instance a digital signage app or kiosk web app, webstore, etcetera.

We can also provide and help you with some retail app solutions, to help you to start your project. Find more about these apps at the software section.

These Android Displays have the following features:

  • - Touchscreen & Non-Touchscreen
  • - ROOTED ANDROID 4.4 sofware version
  • - WIFI network
  • - LAN (RJ45) input socket for a cable network connection (optional)
  • - 3G-4G connection

  • This desk-model shape is available in: 10.1 / 13.3 / 15.6



How does it work?

Watch this video to have an more detailed explanation how these Android screens work.

List of Features

easy setup and plug and play!
Auto Start when plug in the power adapter


Rooted Android 4.4 / Chip RK3188 / RAM 1GB-IM 8GB / CPU Quad core cortex A9


Capacitive TouchScreen (10 points), optional NON-touchscreen.

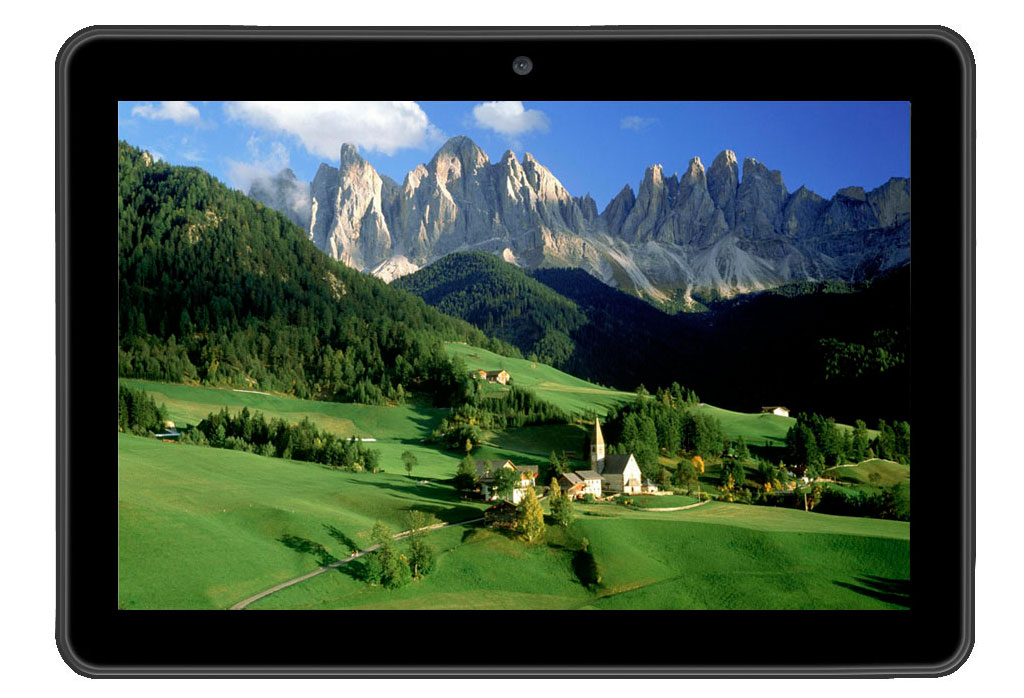

10.1" IPS LCD panel 1280x800 pixels (16:9 ratio)


Internal HD videoplayer 1080P


WIFI, Bluetooth, 3G/4G optional LAN


SD cardreader and 1x USB portal


Internal Speakers


3.5mm Jack Output


Thin Closed Frame Plastic Housing


Color housing standard Black, Optional white.


12V Power adapter with 2.5 meter long cable


14/7: Usage up to 14 hours a day


Timer Clock Function (optional app)



Purposes

can be used in many places

Digital Signage Display



Built-in ShopDisplays



  • Advertisement Display

  •

Shelf-edge Display


CounterDisplay

USAGE:

Plug in the power adapter, and immediately the Android display will turn on (no need to push a ON-OFF button).

You can hide the top and bottom bar in the Settings menu.

Install your software easily and lets play!


OPTIONAL:

- with or without internal battery

- LAN converter box, to connect to the portal at the backside.


MORE SPECS:

see SPECIFICATIONS TAB or download the specification sheet in the DOWNLOAD TAB, above.



This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products

Screen size

10.1inch

Screen type

Touchscreen - Capacitive

LCD Panel Type

IPS Panel

LCD Panel resolution

1280*800

Ratio

16:10

Optional Features

Software Systems for Digital Signage & Kiosks , USB - LAN portal: LAN via USB-LAN adapter , Rockchip RK3288

Operation System

Android 4.4 - Rockchip RK3188 , Quad Core Cortex A9, 1.6G , Rooted

Interface - Connection portals

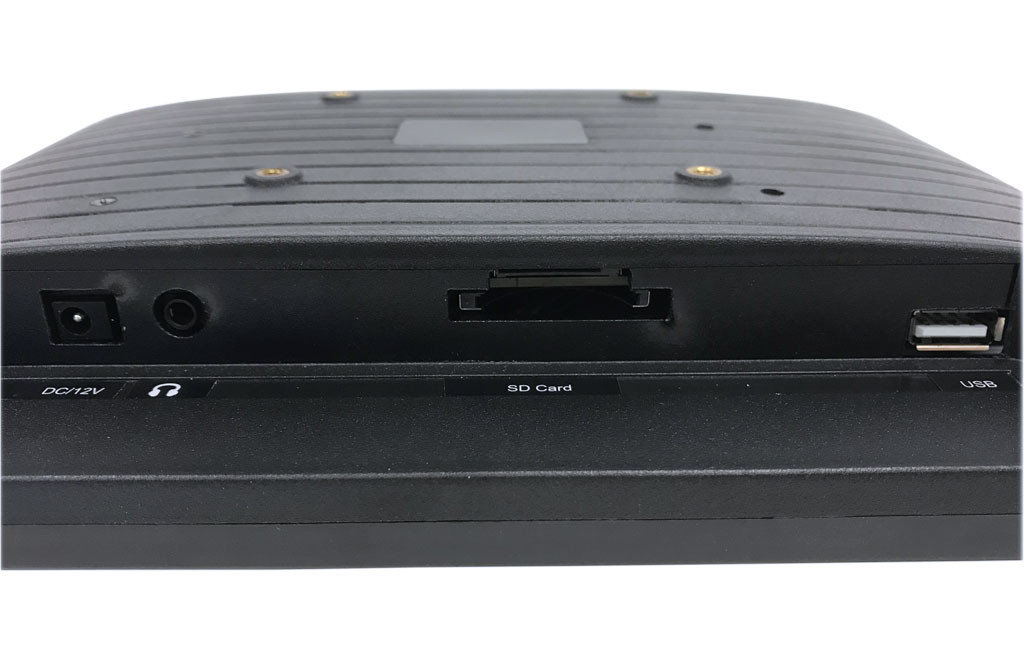

SD/MMC Cardreader , SD Cardreader , USB Portal , SimCard Portal , Anttena for 3G , 3.5mm Jack

Resolution Internal VideoPlayer

1920*1080

Housing type

Closed plastic housing

Start-Up

AutoStart by plug-in the power-adapter

Usage

14/7

Network options

Wi-Fi , Mobile Network (3G-4G) , Bluetooth 4.0

Speakers

Internal speakers: 2x 1W-8Ohm

Mounting options

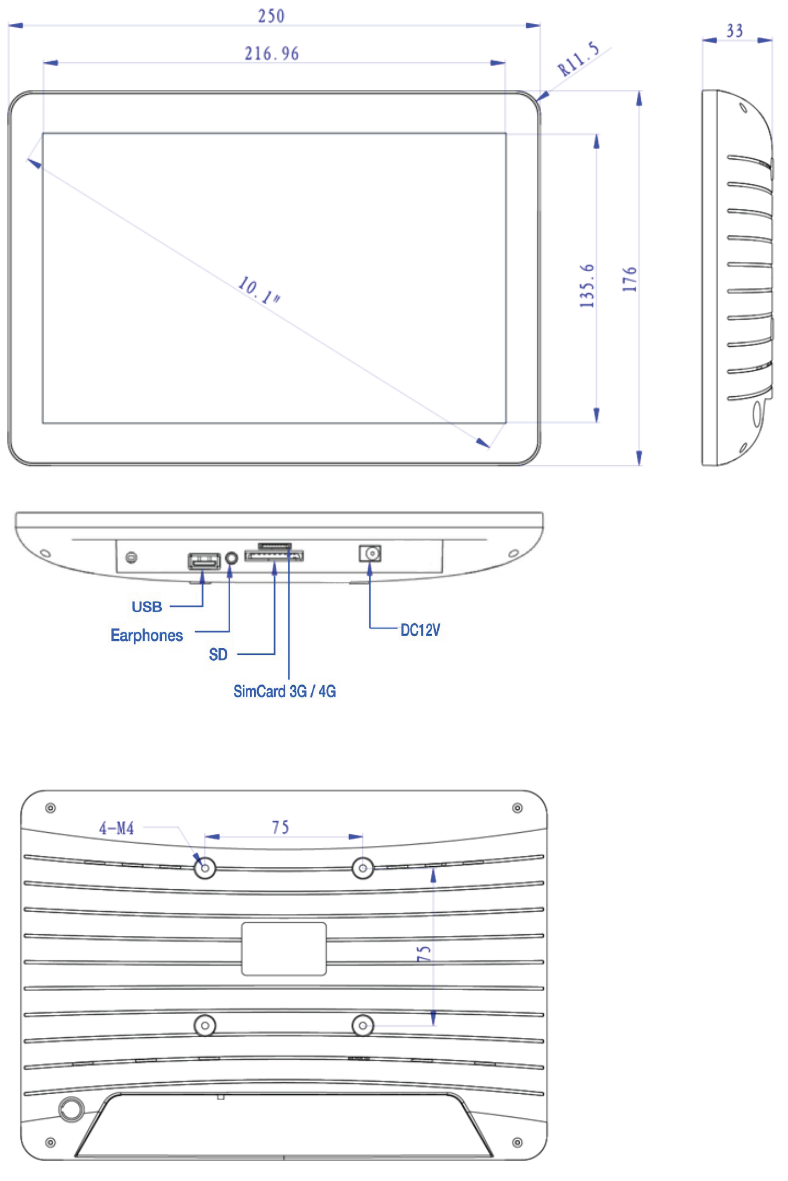

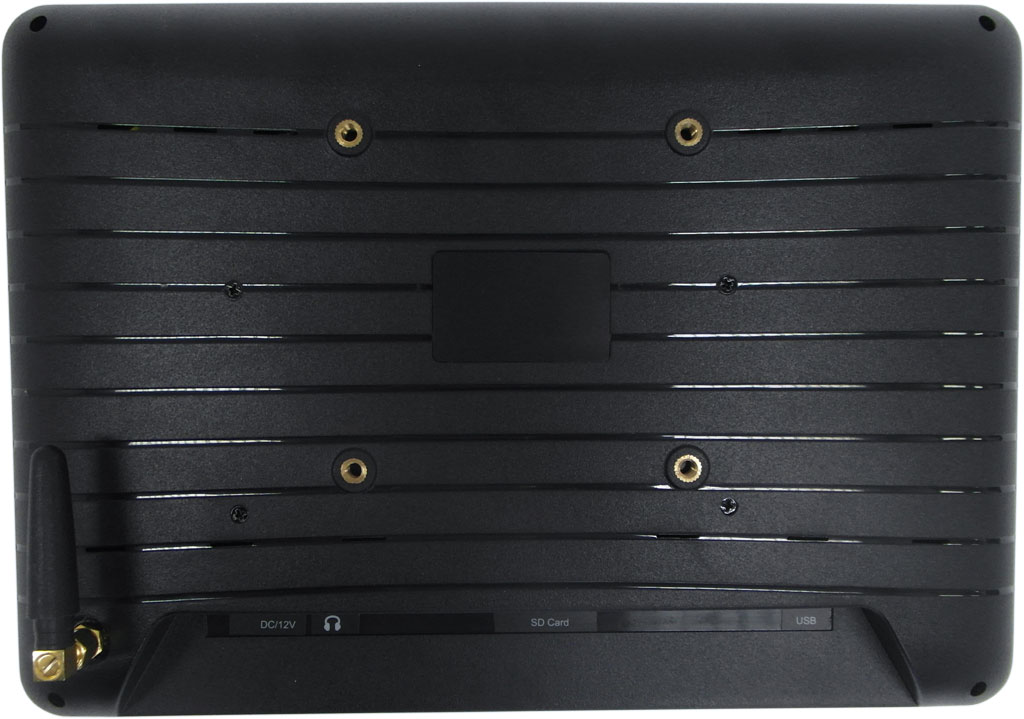

VESA 75x75mm - screwholes 4M , Backstand

Memory

RAM 1GB - Internal Memory 8GB (optional 2GB - 16GB)

Battery

N/A

PowerAdapter

AC 100/240V-50-60HZ, DC 12V/1A
