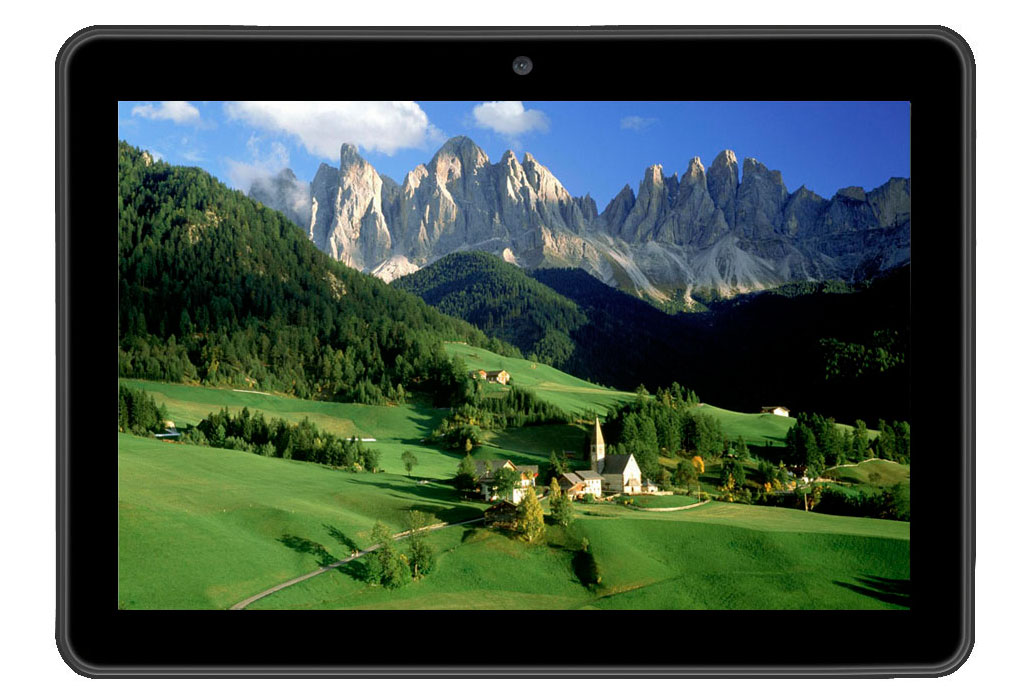

10.1inch Android Display - Non Touch + 3G
Product Code: AC-1011AIO-3G
Screen type: LCD screen only - no touch, Operation System & CPU: Android 4.4 - Rockchip RK3188, Quad Core Cortex A9, 1.6G, Rooted, Screen size: 10.1inch, Housing type: Closed Plastic Frame, LCD Panel resolution: 1280*800, Ratio: 16:10, LCD Panel Type: IPS Panel, Resolution Internal VideoPlayer: 1920*1080, Interface - Connection portals: SimCard Portal, 3.5mm Jack, SD/MMC Cardreader, USB Portal, Anttena for 3G, Optional Features: Software Systems for Digital Signage & Kiosks, Capactive Touchscreen, USB - LAN portal: LAN via USB-LAN adapter, Rockchip RK3288, Network options: Bluetooth 4.0, Wi-Fi, Mobile Network (3G-4G), Mounting options: VESA 75x75mm - screwholes 4mm, Start-Up: AutoStart by plug-in the power-adapter, Usage: 14/7, Memory: RAM 1GB - Internal Memory 8GB (optional 2GB - 16GB), PowerAdapter: AC 100/240V-50-60HZ, DC 12V/1A, Speakers: Internal speakers: 2x 1W-8Ohm
Including:
EU Power Adapter
Installation of your software:
Install your own software (or from your client) by USB Stick. Most public software APK files you can download from websites like www.apkmirror.com.
Note: this is a rooted industrial Android screen, which means the Google Playstore is mostly not working in many regions. Please install an other Store if needed.
Android Display
Our Android Displays are commercial models, specially designed and to use in a retail environment, online digital signage screens, info touch kiosk, etcetera.
The Android has a standard some programm apps installed, like a browser, google play store, explorer, and some extra apps.
You can install your own application on it. For instance a digital signage app or kiosk web app, webstore, etcetera.
We can also provide and help you with some retail app solutions, to help you to start your project. Find more about these apps at the software section.
These Android Displays have the following features:
- - Touchscreen & Non-Touchscreen
- - ROOTED ANDROID 4.4 software version
- - WIFI network
- - LAN (RJ45) input socket for a cable network connection (optional)
- - 3G-4G connection
- This desk-model shape is available in: 10.1 / 13.3 / 15.6
NOTE:
Google
Play store is not always working in some regions, but do not be afraid:
most of the times you do not need this store.
You just can install your own/clients (signage) APK by USB Stick or
download it from a website and install it.
Quiet often, you can download APK files from www.apkmirror.com or
www.apkpure.com or ask your client for the APK needed to install.
The
benefit of not using the Google Playstore: you are not being watched by
Google and Google will not get your userdata which you do not want to
share with them anyway.
PS: if you really need Google Playstore, we can check if it is possible, but only for larger order quantites.
How does it work?
Watch this video to have an more detailed explanation how these Android screens work.
List of Features
easy setup and plug and play!
Rooted Android 4.4 / Chip RK3188 / RAM 1GB-IM 8GB / CPU Quad core cortex A9
Non Touch
WIFI, Bluetooth, 3G/4G optional LAN

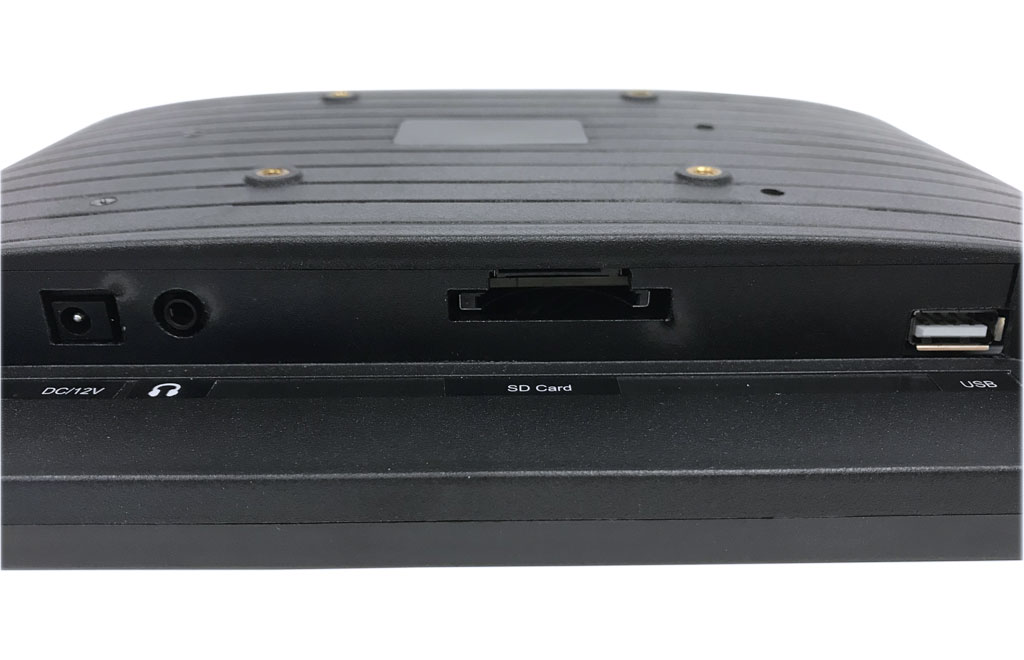

SD cardreader and 1x USB portal
Internal Speakers
3.5mm Jack Output
Thin Closed Frame Plastic Housing
Color housing standard Black, Optional white.
12V Power adapter with 2.5 meter long cable
14/7: Usage up to 14 hours a day
Timer Clock Function (optional app)
Purposes
can be used in many places
Digital Signage Display
Built-in ShopDisplays
Advertisement Display
Shelf-edge Display
CounterDisplay
USAGE:
Plug in the power adapter, and immediately the Android display will turn on (no need to push a ON-OFF button).
You can hide the top and bottom bar in the Settings menu.
Install your software easily and lets play!
OPTIONAL:
- with or without internal battery
- LAN converter box, to connect to the portal at the backside.
MORE SPECS:
see SPECIFICATIONS TAB or download the specification sheet in the DOWNLOAD TAB, above.
OTHER ANDROID SHAPES & VERSIONS
| Optional Features | Software Systems for Digital Signage & Kiosks or USB - LAN portal: LAN via USB-LAN adapter or Rockchip RK3288 or Capactive Touchscreen |
| Operation System | Android 4.4 - Rockchip RK3188 or Quad Core Cortex A9, 1.6G or Rooted |
| Interface - Connection portals | SD/MMC Cardreader or USB Portal or SimCard Portal or Anttena for 3G or 3.5mm Jack |
| Network options | Wi-Fi or Mobile Network (3G-4G) or Bluetooth 4.0 |
| Screen size | 10.1inch |
| Screen type | LCD screen only - no touch |
| LCD Panel Type | IPS Panel |
| LCD Panel resolution | 1280*800 |
| Ratio | 16:10 |
| Resolution Internal VideoPlayer | 1920*1080 |
| Housing type | Closed Plastic Frame |
| Start-Up | AutoStart by plug-in the power-adapter |
| Usage | 14/7 |
| Speakers | Internal speakers: 2x 1W-8Ohm |

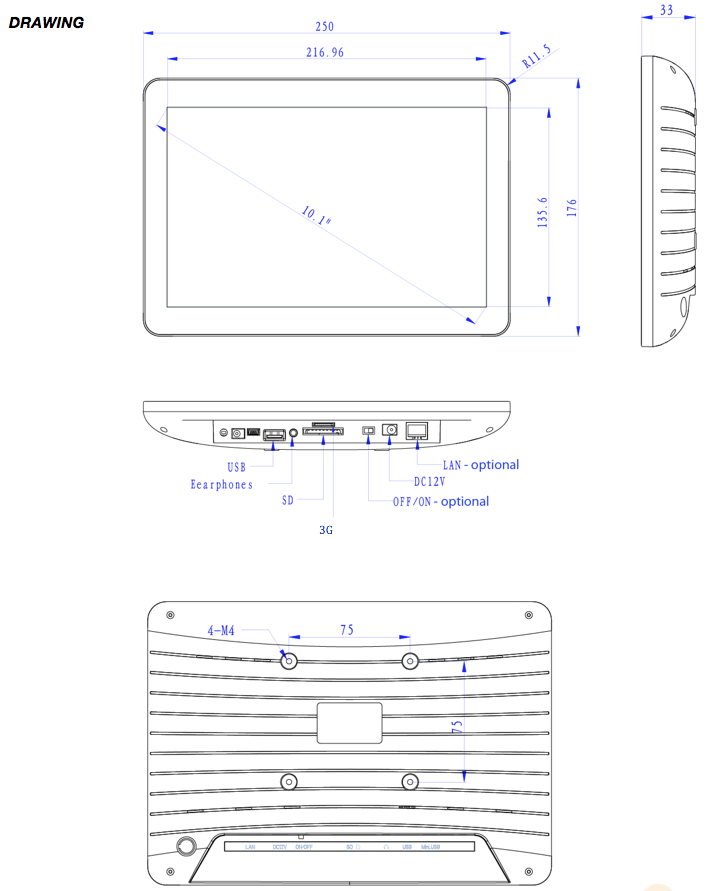

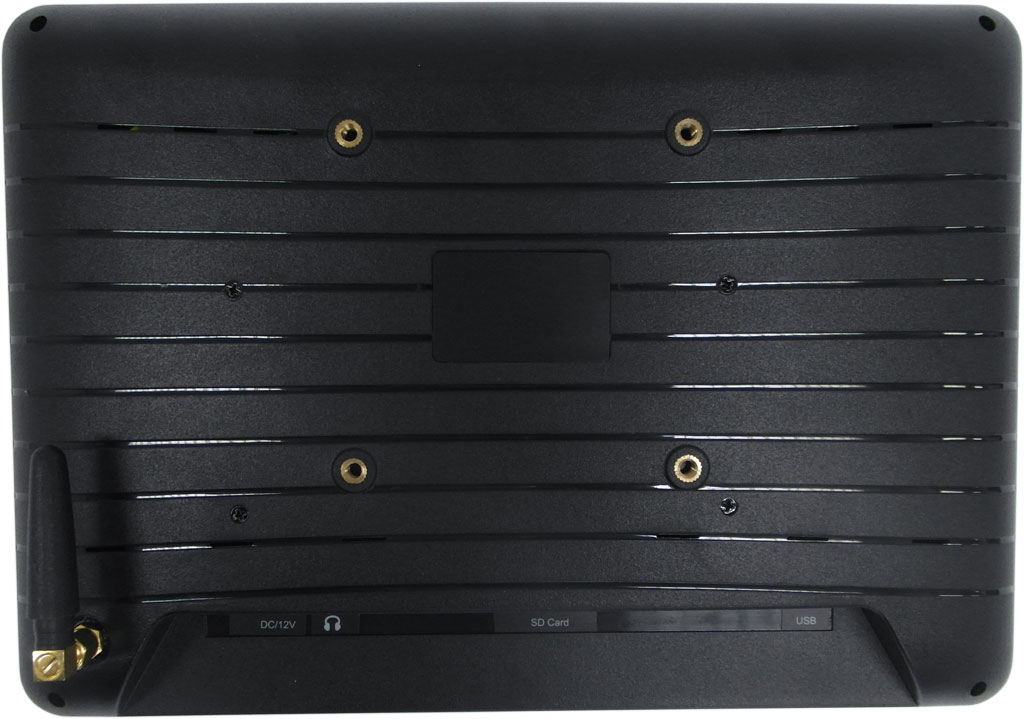

| Mounting options | VESA 75x75mm - screwholes 4M |
| Memory | RAM 1GB - Internal Memory 8GB (optional 2GB - 16GB) |
| Battery | N/A |
| PowerAdapter | AC 100/240V-50-60HZ, DC 12V/1A |
