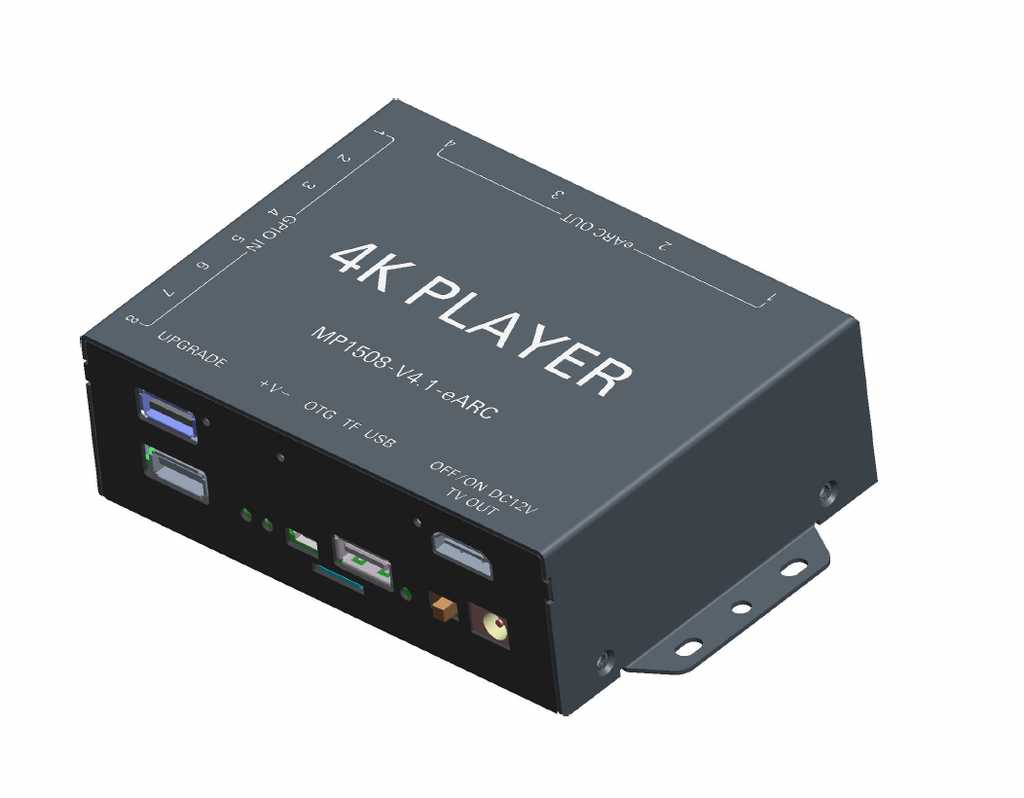

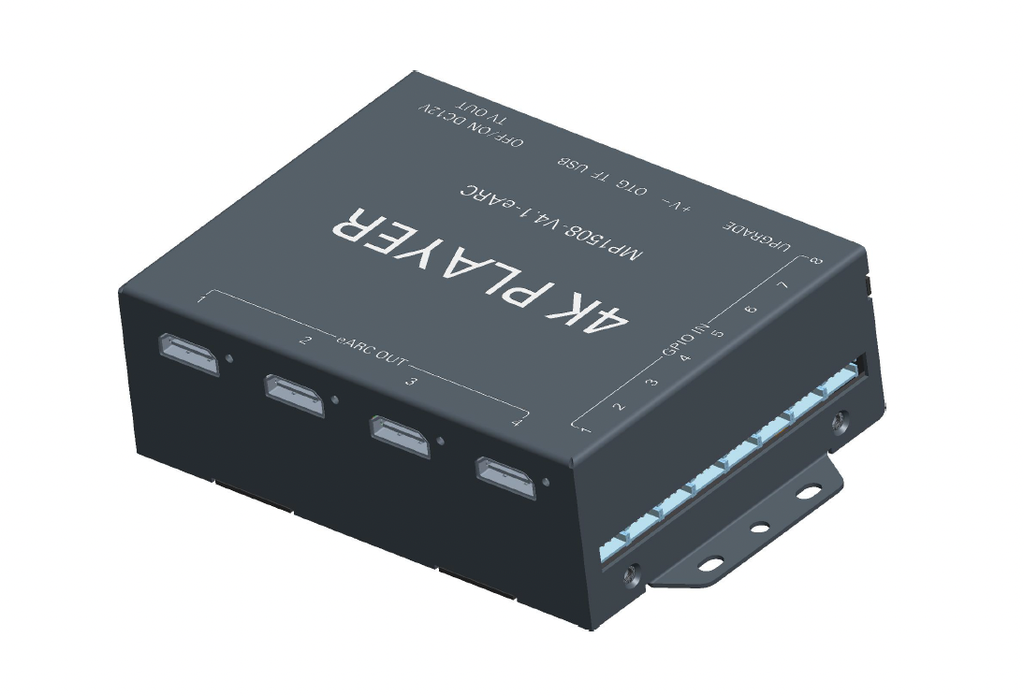

Soundbar Demonstrator - supports 4x HDMI eARC + 8xActionButtons + VideoSignal Out
Product Code: MP1508-V4.1-eARCx4
[MP1508-V4.1-eARCx4] Soundbar Demonstrator - supports 4x HDMI eARC + 8xActionButtons + VideoSignal Out
Screen type: Connect any size screen to this player (1080P / 4K), Operation System: Android OS, Software: supports 4x eARC by HDMI
Interface - Connection portals:
8x PushButton Inputs, TF cardreader, USB Portal, 2x Pushbutton input for Volume UP-DOWN, 4x HDMI OUT, OTG portal, IR eye hole, ON-OFF switch, DC 12V IN,
Resolution Internal VideoPlayer: 4K, 1920*1080
Frame Housing type: Closed metal housing
Start-Up: AutoStart by plug-in the power-adapter,
Mounting options: Mounting Strips,
PowerAdapter: AC 100/240V-50-60HZ, DC 12V/1A,
Software: Supports Atmos Dolby, Software: XML Scripting, auto update by USB Stick, Software: supports 4x eARC by HDMI
+ EU power adapter
+ UK power adapter
Sticker on backside product / giftbox / exportcarton
MP1508-V4.1-eARCx4 4K Video & 4x Soundbar Demonstrator eARC.
SN:
[SOFTWARE-FUNCTION] Software Function of the Mediplayer and its Pushbuttons interaction. There is a standard software function loaded. This is described in below text. We can adjust the software function, if you have other requirements.
Currently Software Function:
No interaction:
Play silent looping video, no sound on speakers.
LED Light of all Play-Buttons are ON-OFF blinking (800ms ON-800ms OFF). Volume buttons Lights are OFF.
Interaction:
Press Play-Next Button 1 - Play video 1 on TV and Sound ON Speaker 1, other Speakers Sound OFF.
Light of Play-Button 1 = ON, Light other Play Buttons = OFF
LED Lights of Volume Up & Down are ON.
Press Play-Next Button 1 again - Play next video on TV and Sound ON speaker 1, other Speakers Sound OFF.
Similar function for Play-Next button 2, 3 and 4.
Switching sound from one Speaker to other Speaker:
Example:
Speaker 1 is ON.
Press Play-Next button 2: the currently playing video keeps on playing, but the sound goes direclty to Speaker 2, and speaker 1 goes OFF (and other speakers also OFF).
=> In this way you can hear very easily the difference in sound quality between the speakers by switching the sound from one speaker to the other.
Software can be adjusted upon your requirements / setup.
Related products:
Audio Test and Learn
In-store solution for Headphone and Speaker Brands. Test headphones or/and speakers, which guide you to the product which will suit you the most.
| Interface - Connection portals | 8x PushButton Inputs, TF cardreader, USB Portal, 2x Pushbutton input for Volume UP-DOWN, 4x HDMI OUT, OTG portal, IR eye hole, ON-OFF switch, DC 12V IN |
| Resolution Internal VideoPlayer | 4K, 1920*1080 |
| Software | Supports Atmos Dolby, XML Scripting, auto update by USB Stick, supports 4x eARC by HDMI |
| Screen type | Connect any size screen to this player (1080P / 4K) |
| Operation System | Android OS |
| Frame Housing type | Closed metal housing |
| Start-Up | AutoStart by plug-in the power-adapter |
| Mounting options | Mounting Strips |
| PowerAdapter | AC 100/240V-50-60HZ, DC 12V/1A |
