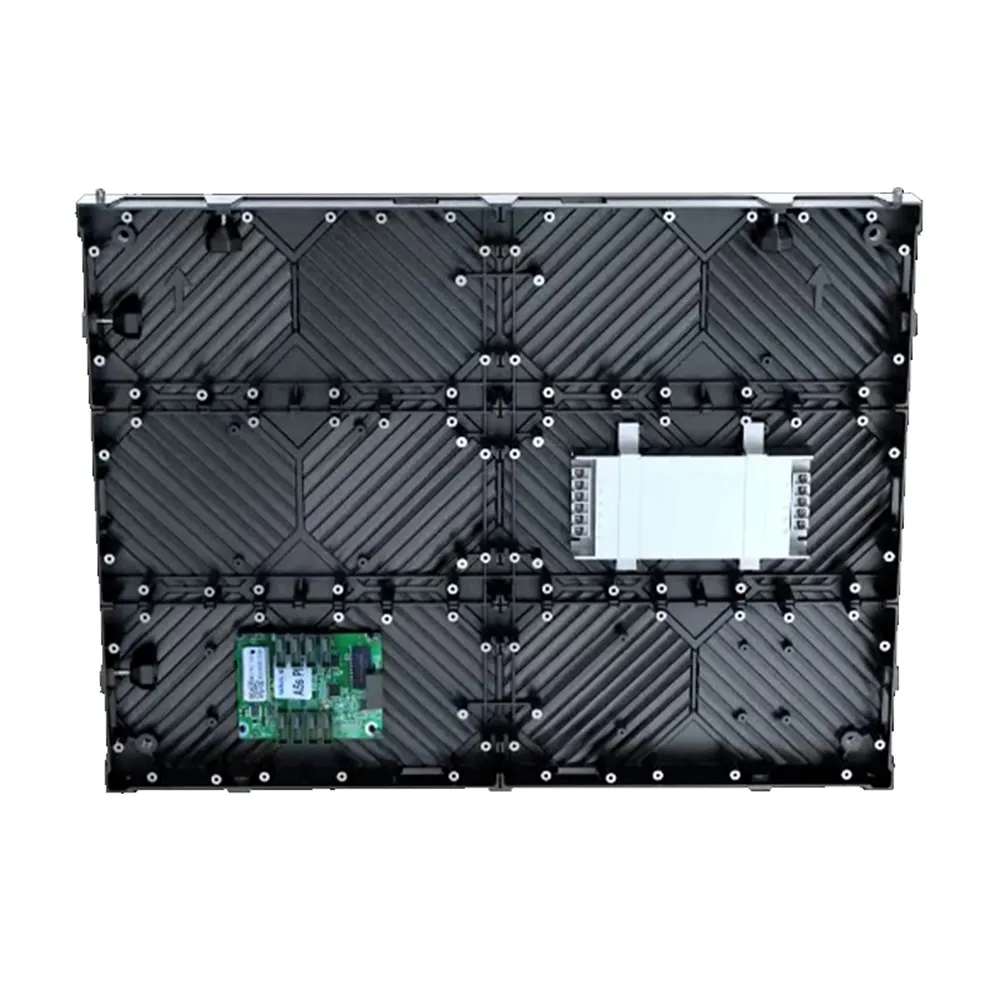

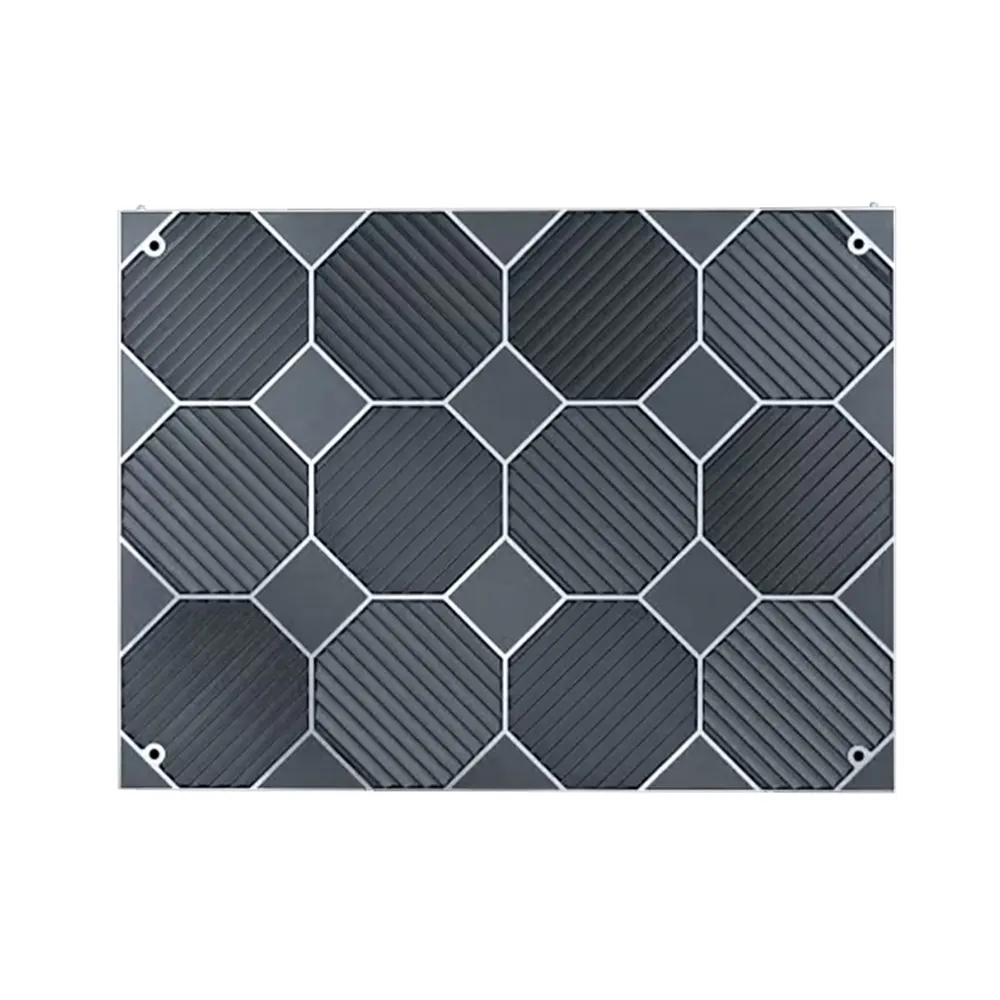

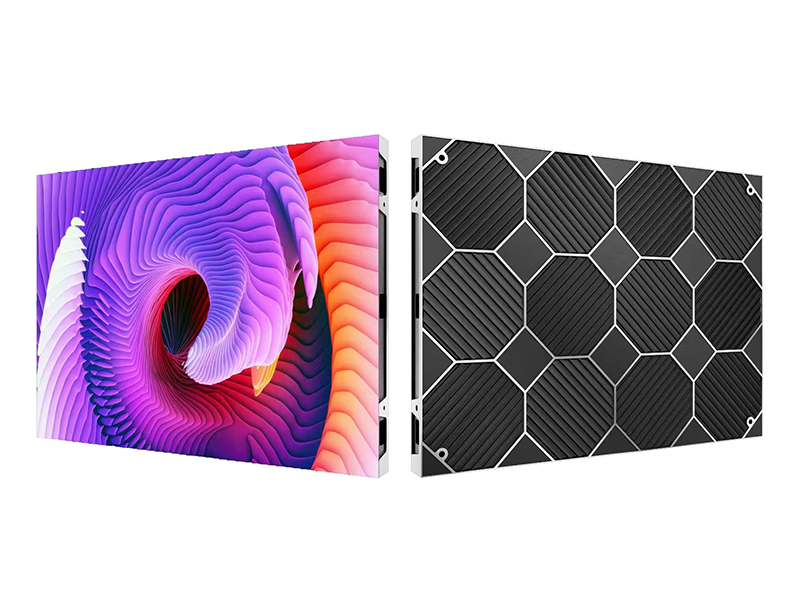

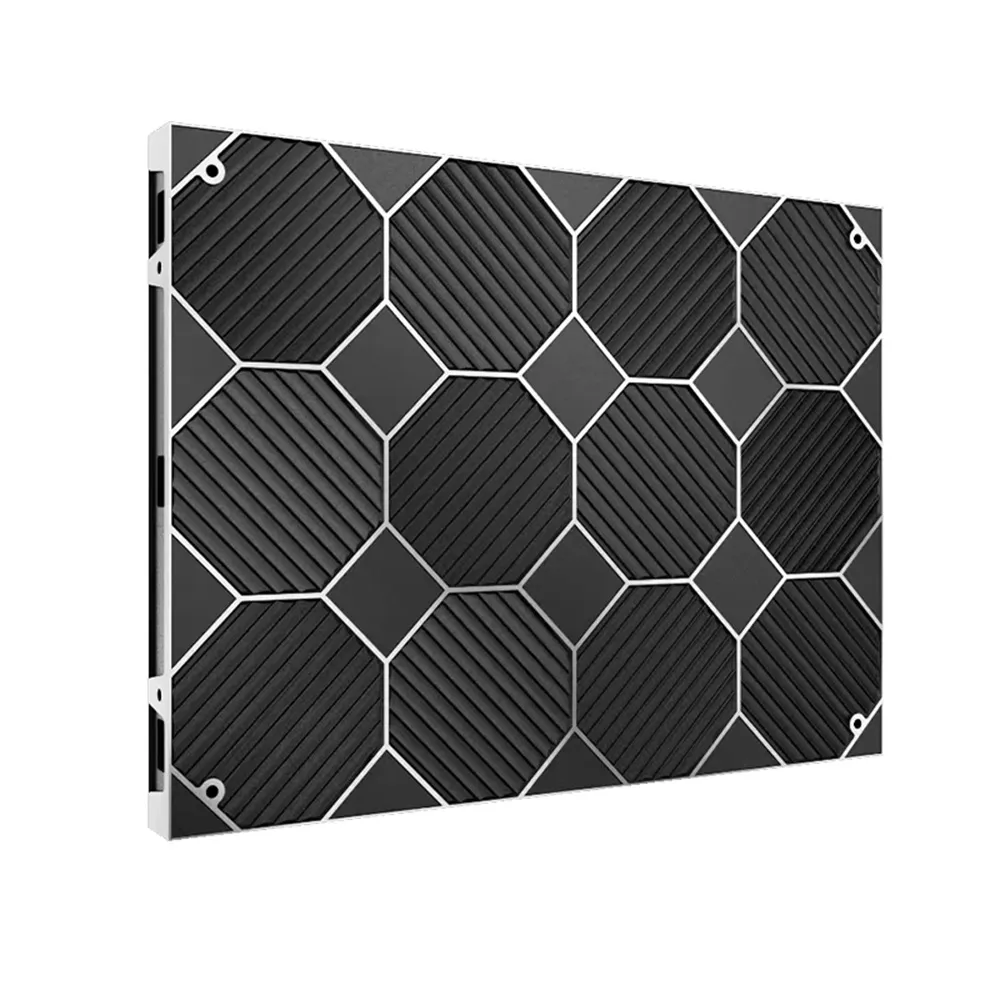

LED 2.5P including Cabinet - 640x480mm - 256x192 pixels - dicasting aluminum cabinet
Product Code: LV-LED-WALL-2.5P
LED Wall with Pixel Pitch(mm) 2.5P
Including 15x dicasting aluminum cabinets
Including receiving cards - sending card box - signal cables - power cables - PSUs
Total Resolution Videowall: 768x960 pixels resolution
Total dimensions Videowall: 192cm x 240cm, total 4,608m2
Detailed product info:
LEDs SMD1515
Pixel Density( pixels/sq.m) 160,000
Module Size(mm) 320x160
Module Resolution (pixels) 128×64
Cabinet Size(mm) 640x480
Cabinet Resolution(pixels) 256x192
Module QTY/Cabinet(pcs) 6
Cabinet Material Die Casting Aluminum
Cabinet Weight 7.5
Brightness 800-900cd/㎡
Refresh frequency 3840Hertz
Brightness Control 0-256 level
Color Depth 14bits
Contrast Ratio 4000:1
Panel Power (Max/Avg) 570/190Watts
Operating Voltage AC 100 ~ 240V (50 ~ 60Hz)
Viewing Angle Horizontal 140(+70/-70) deg. Vertical 140(+70/-70)deg.
Minimum Viewing Distance 2-3meters
Failure Rate ＜1/10000
Lifetime at 50% brightness 100000 hours
Environment Rating Indoor Application
Operating temperature ﹣20 ～﹢50 ℃
Operating humidity 10％ ～ 90％
Control distance CAT5 cable:＜100 m; Single mode fiber:＜10 km
Signal input format AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
1x Sending Card MCTRL300
15x Receiving Card MRV412 (integrated in Cabinets)
15x PSU (integrated in Cabinets)
1x Software Novastudio Included
Including: Package Plywooden case
Including: Spare parts (10x Led modules + 2x Receiving card + 2x PSU)
