7inch Android Display - Non Touch - Counter Model - White Housing
Product Code: EL-7008AIO-CD-WH-OS6.0-RK3128
Screen type: Non-Touchscreen, Operation System & CPU: Quad Core Cortex A7. 1.3G, Android 6.0 - Rockchip RK3128, Rooted, Screen size: 7inch, Housing type: Counter Model, White Housing, LCD Panel resolution: 1024*600, Ratio: 16:9, LCD Panel Type: IPS Panel, Resolution Internal VideoPlayer: 1080P, Interface - Connection portals: TF cardreader, Serialport: 4P-2.0mm, HDMI OUT, Power Input DC 5V/2A, USB Portal, 4P-2.0mm connect to RJ45 box, 3.5mm Jack, Micro USB Portal, Network options: Bluetooth 4.0, Wifi, Mounting options: Counter Model, Memory: RAM 1GB - Internal Memory 8GB, Start-Up: AutoStart by plug-in the power-adapter, Usage: 24/7, Speakers: 2*1W, Camera: 2.0MP front camera, PowerAdapter: AC/DC 5V/2A
Including:
EU Power Adapter
Installation of your software:
Install your own software (or from your client) by USB Stick. Most public software APK files you can download from websites like www.apkmirror.com.
Note: this is a rooted industrial Android screen, which means the Google Playstore is mostly not working in many regions. Please install another Store if needed.
How does it work?
Watch this video to have an more detailed explanation how these Android screens work.
NEW: RFID reader in android counter models 13.3 / 15.6 / 17.3 for scanning RFID tags and keys!
List of Features
easy setup and plug and play!
Rooted Android 6.0 / Chip RK3128 / RAM 1GB-IM 16GB / CPU Quad core cortex A7, 1.2G
Non Touch
7" IPS LCD panel 1024x600 pixels (16:9 ratio)
Internal HD videoplayer 1080P
WIFI, Bluetooth, optional LAN and 3G
TF cardreader and 1x USB portal
Internal Speakers
3.5mm Jack Output
Thin Closed Frame Plastic Housing
Color housing white.
5V Power adapter with 3 meter long cable
24/7 usage
Timer Clock Function (optional app)
Purposes
can be used in many places
Digital Signage Display
Built-in ShopDisplays
Advertisement Display
Shelf-edge Display
CounterDisplay
USAGE:
Plug in the power adapter, and immediately the Android display will turn on (no need to push a ON-OFF button).
You can hide the top and bottom bar in the Settings menu.
Install your software easily and lets play!
OPTIONAL:
- with or without internal battery
- LAN converter box, to connect to the portal at the backside.
MORE SPECS:
see SPECIFICATIONS TAB or download the specification sheet in the DOWNLOAD TAB, above.
| Operation System | Android 6.0 - Rockchip RK3128 or Quad Core Cortex A7, 1.3G or Rooted |

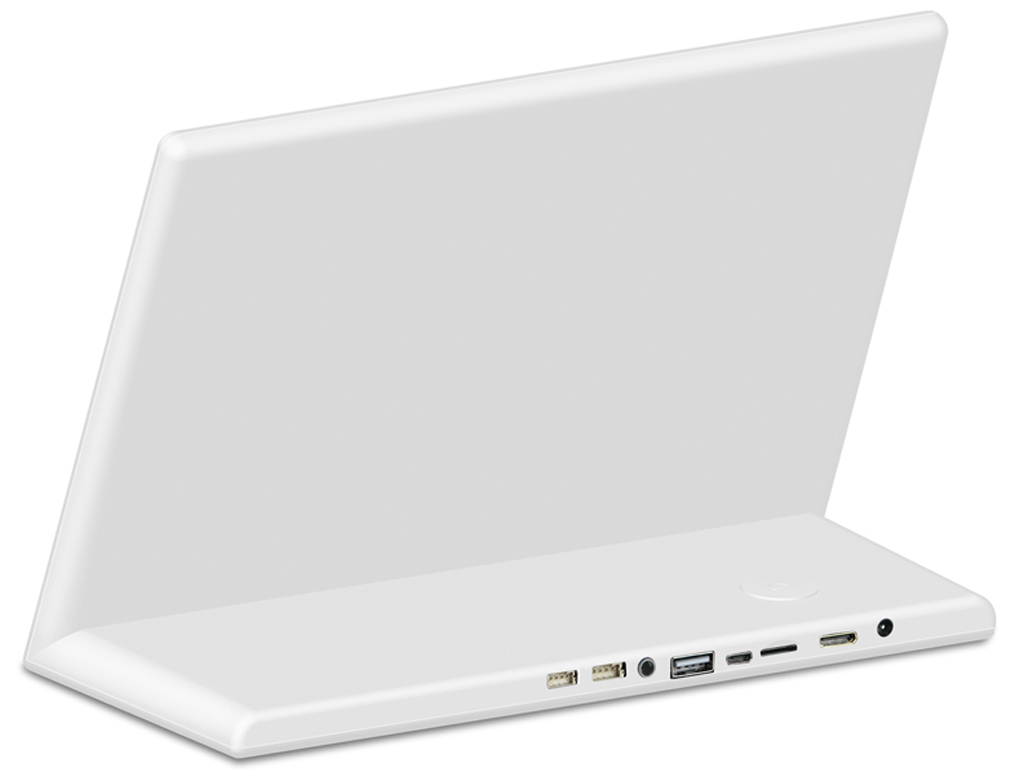

| Interface - Connection portals | HDMI OUT or TF cardreader or USB Portal or 4P-2.0mm connect to RJ45 box or Micro USB Portal or 3.5mm Jack or Power Input DC 5V/2A or Serialport: 4P-2.0mm |
| Housing type | Counter Model or White Housing |
| Network options | Wifi or Bluetooth 4.0 or Optional: external RJ45 converter box |
| Screen size | 7inch |
| Screen type | Non-Touchscreen |
| LCD Panel Type | IPS Panel |
| LCD Panel resolution | 1024*600 |
| Ratio | 16:9 |
| Optional Features | Software Systems for Digital Signage & Kiosks |
| Resolution Internal VideoPlayer | 1080P |
| Start-Up | AutoStart by plug-in the power-adapter |
| Usage | 24/7 |
| Speakers | 2*1W |
| Mounting options | Counter Model |
| Memory | RAM 1GB - Internal Memory 8GB |
| Camera | 2.0MP front camera |
| PowerAdapter | AC/DC 5V/2A |
