14inch Android Display - Touchscreen - RK3576S - NoCam
Product Code: EL-1499AIO-T-RK3576S
Screen size: 14inch, Screen type: Touchscreen - Capacitive, LCD Panel Type: LCD, LCD Panel resolution: 1920*1080, Ratio: 16:9, Optional Features: Software Systems for Digital Signage & Kiosks, Operation System: Rooted, Operation System: RK3576S, Interface - Connection portals: HDMI OUT, Interface - Connection portals: SD Cardreader, Interface - Connection portals: USB Portal, Interface - Connection portals: Mini USB Portal, Interface - Connection portals: 3.5mm Jack, Interface - Connection portals: Power Input DC 12V/1.5A, Resolution Internal VideoPlayer: 1920*1080, Housing type: Closed Plastic Frame, Start-Up: AutoStart by plug-in the power-adapter, Usage: 24/7, Network options: Wifi, Network options: LAN/WLAN, Network options: Bluetooth 5.3, Mounting options: VESA 100x100mm - screwholes 4mm, Memory: 4GB-64GB, PowerAdapter: AC/DC 12V/1.5A
Android Display
Our Android Displays are commercial models, specially designed and to use in a retail environment, online digital signage screens, info touch kiosk, etcetera.
The Android has a standard some programm apps installed, like a browser, google play store, explorer, and some extra apps.
You can install your own application on it. For instance a digital signage app or kiosk web app, webstore, etcetera.
We
can also provide and help you with some retail app solutions, to help
you to start your project. Find more about these apps at the software section.
These Android Displays have the following features:
- Touchscreen & Non-Touchscreen
- ROOTED ANDROID
- WIFI network
- LAN (RJ45) input socket for a cable network connection (not for all models)
- 3G-4G connection via USB SIM dongle (optional, not included)
- This desk-model shape is available in: 10.1 / 13.3 / 14 / 15.6 / 18.5 / 21.5 / 24 / 27 / 32 / 43 / 55 inch sizes.
Different models, sizes & shapes
Watch this video to have an impression how these Android screens work and which models are available!
How does it work?
Watch this video to have an more detailed explanation how these Android screens work.
List of Features
easy setup and plug and play!
Rooted Android
Capacitive TouchScreen (10 points, optional NON-touchscreen)
WIFI, Bluetooth, optional LAN and 3G
SD cardreader and 1x USB portal
Internal Speakers
3.5mm Jack Output
Thin Closed Frame Plastic Housing
Color housing standard Black, Optional white.
12V Power adapter with 3 meter long cable
24/7 usage
Timer Clock Function (optional app)
Purposes
can be used in many places
Digital Signage Display
Built-in ShopDisplays
Advertisement Display
Shelf-edge Display
CounterDisplay
USAGE:
Plug in the power adapter, and immediately the Android display will turn on (no need to push a ON-OFF button).
You can hide the top and bottom bar in the Settings menu.
Install your software easily and lets play!
OPTIONAL:
- with or without internal battery
- LAN converter box, to connect to the portal at the backside.
MORE SPECS:
see SPECIFICATIONS TAB or download the specification sheet in the DOWNLOAD TAB, above.
| Operation System | Rooted or RK3576S |
| Interface - Connection portals | HDMI OUT or SD Cardreader or USB Portal or Mini USB Portal or 3.5mm Jack or Power Input DC 12V/1.5A |
| Network options | Wifi or LAN/WLAN or Bluetooth 5.3 |
| Screen size | 14inch |
| Screen type | Touchscreen - Capacitive |
| LCD Panel Type | LCD |
| LCD Panel resolution | 1920*1080 |
| Ratio | 16:9 |
| Optional Features | Software Systems for Digital Signage & Kiosks |
| Resolution Internal VideoPlayer | 1920*1080 |
| Housing type | Closed Plastic Frame |
| Start-Up | AutoStart by plug-in the power-adapter |
| Usage | 24/7 |

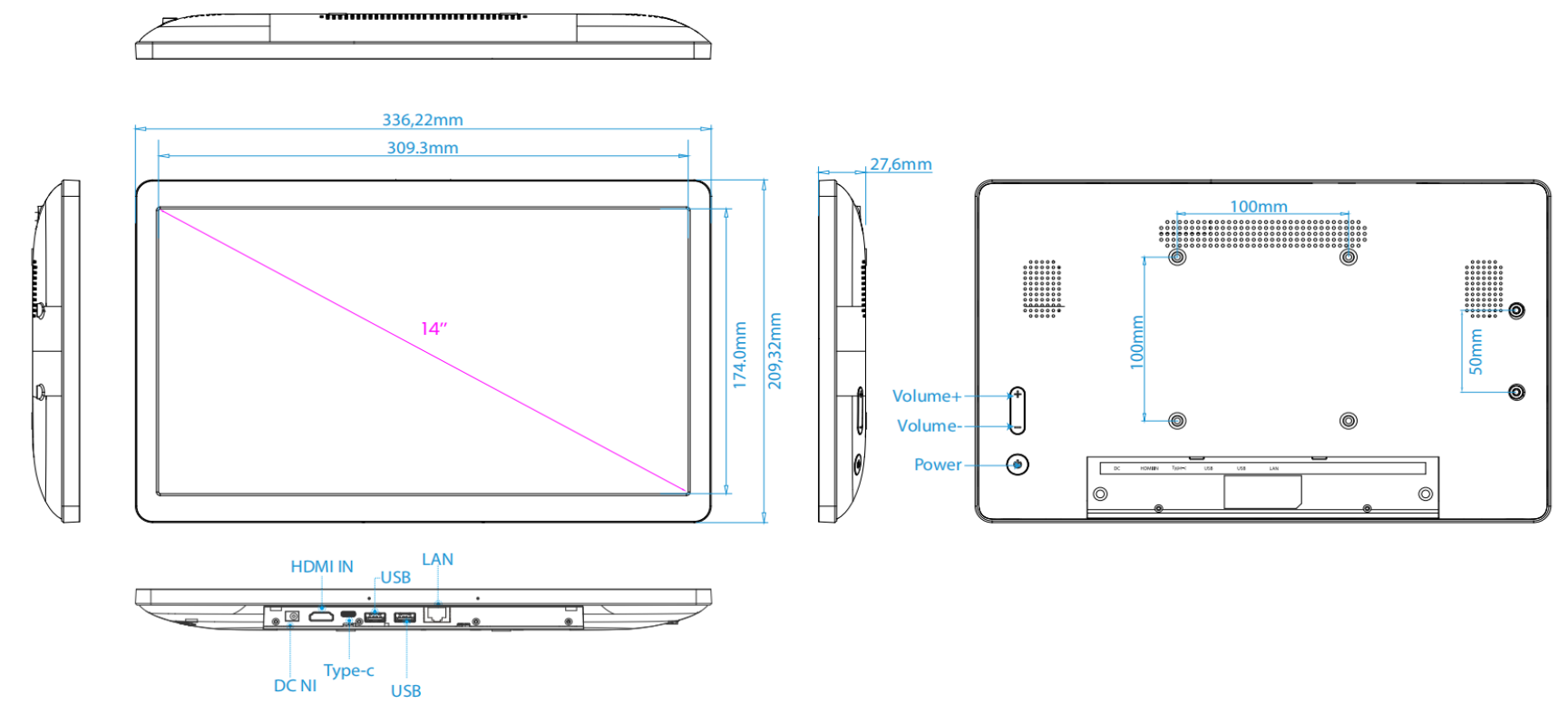

| Mounting options | VESA 100x100mm - screwholes 4mm |
| Memory | 4GB-64GB |
| PowerAdapter | AC/DC 12V/1.5A |
