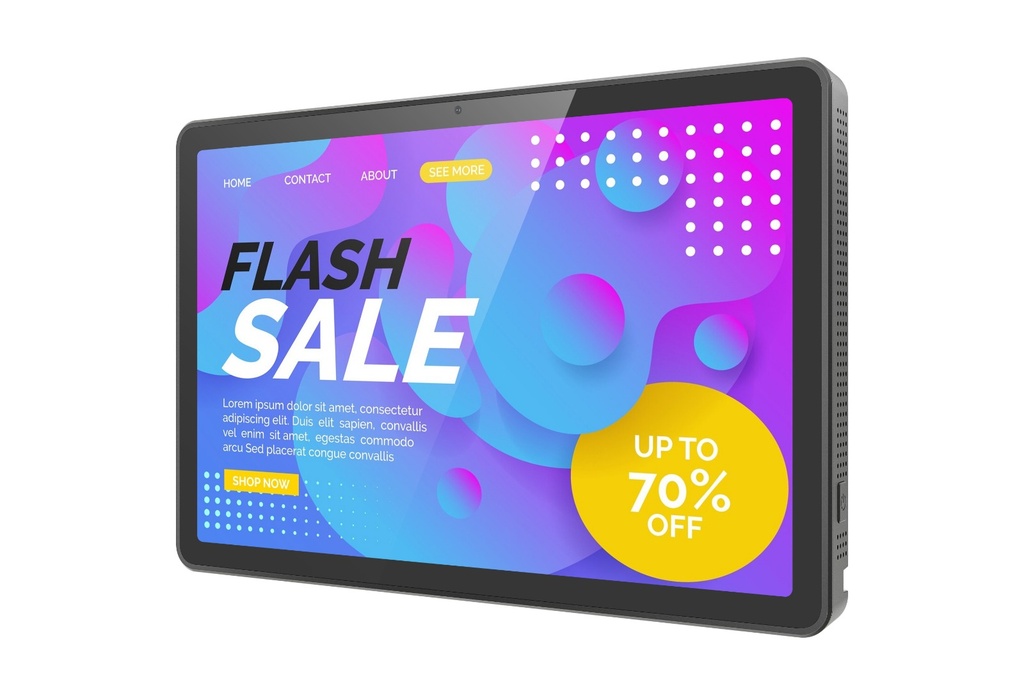

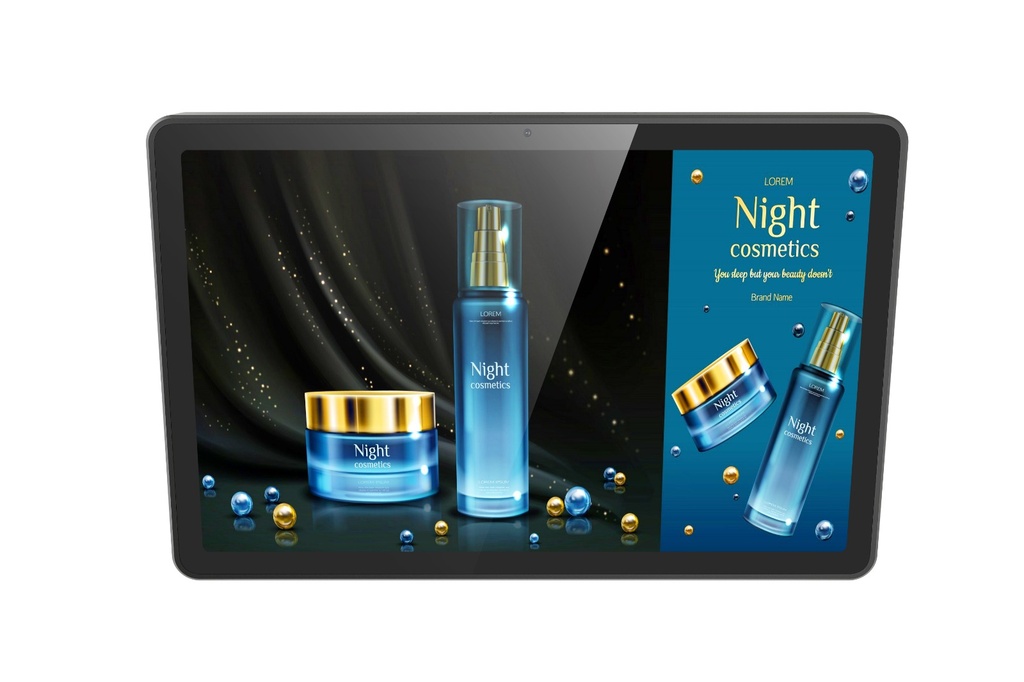

11inch Android Display - RK3576S
Product Code: EL-1109AIO-T-OS14-RK3576S
[EL-1109AIO-T-OS14-RK3576S] 11inch Android Display - RK3576S
Screen size: 11inch, Screen type: Touchscreen - Capacitive, LCD Panel Type: LCD Panel, LCD Panel resolution: 1920*1200, Ratio: 16:10
Optional Features: Software Systems for Digital Signage & Kiosks
Operation System: Rooted, Android OS14, RK3576S Quad core cortex A72+Quad core cortex A53, Memory: 4GB-64GB
Interface - Connection portals: PoE (power over ethernet), TF cardreader, USB Portal, LAN input for Internet connection - RJ45, Micro USB Portal, 3.5mm Jack, Power Input DC 12V/1.5A, USB Type-C
Resolution Internal VideoPlayer: 1920*1080
Network options: Wi-Fi, LAN/WLAN, Mobile Network (3G-4G) - Optional by USB SIM Dongle, Bluetooth 5.4
Speakers: Internal Speakers 4Ohm - 2Wx2
Camera: 5.0MP front camera
Frame Housing type: Closed Plastic Frame
Including:
- EU PowerAdapter (if other type needed, please let us know).
- Flatwall metal bracket (standard included in the packaging)
- Date & Time: European Time Amsterdam (is this correct? this setting only for bulk orders possible)
Android Display
Our Android Displays are commercial models, specially designed and to use in a retail environment, online digital signage screens, info touch kiosk, etcetera.
The Android has a standard some programm apps installed, like a browser, google play store, explorer, and some extra apps.
You can install your own application on it. For instance a digital signage app or kiosk web app, webstore, etcetera.
We can also provide and help you with some retail app solutions, to help you to start your project. Find more about these apps at the software section.
These Android Displays have the following features:
- Touchscreen & Non-Touchscreen
- ROOTED ANDROID software version
- WIFI network
- LAN (RJ45) input socket for a cable network connection (not for all models)
Several types are available in: 10.1 / 13.3 / 14 / 15.6 / 18.5 / 21.5 / 24 / 27 / 32 / 43 / 55 inch sizes.
How does it work?
Watch this video to have an more detailed explanation how these Android screens work.
List of Features
easy setup and plug and play!
Rooted Android
Touchscreen.
WIFI, Bluetooth, and LAN
USB-A and USB-C and TF card
Internal Speakers
3.5mm Jack Output
Thin Closed Frame Plastic Housing
Color housing standard Black, Optional white.
12V Power adapter with 3 meter long cable
24/7 usage
Timer Clock Function (optional app)
Purposes
can be used in many places
Digital Signage Display
Built-in ShopDisplays
Advertisement Display
Shelf-edge Display
CounterDisplay
USAGE:
Plug in the power adapter, and immediately the Android display will turn on (no need to push a ON-OFF button).
You can hide the top and bottom bar in the Settings menu.
Install your software easily and lets play!
OPTIONAL:
- with or without internal battery
- LAN converter box, to connect to the portal at the backside.
MORE SPECS:
see SPECIFICATIONS TAB or download the specification sheet in the DOWNLOAD TAB, above.
| Operation System | Rooted or Android OS14 or RK3576S Quad core cortex A72+Quad core cortex A53 |
| Interface - Connection portals | PoE (power over ethernet) or TF cardreader or USB Portal or LAN input for Internetconnection - RJ45 or Micro USB Portal or 3.5mm Jack or Power Input DC 12V/1.5A or USB Type-C |
| Network options | Wi-Fi or LAN/WLAN or Mobile Network (3G-4G) - Optional by USB SIM Dongle or Bluetooth 5.4 |
| Screen size | 11inch |
| Screen type | Touchscreen - Capacitive |
| LCD Panel Type | LCD Panel |
| LCD Panel resolution | 1920*1200 |
| Ratio | 16:10 |
| Optional Features | Software Systems for Digital Signage & Kiosks |
| Resolution Internal VideoPlayer | 1920*1080 |
| Frame Housing type | Closed Plastic Frame |
| Speakers | Internal Speakers 4Ohm - 2Wx2 |

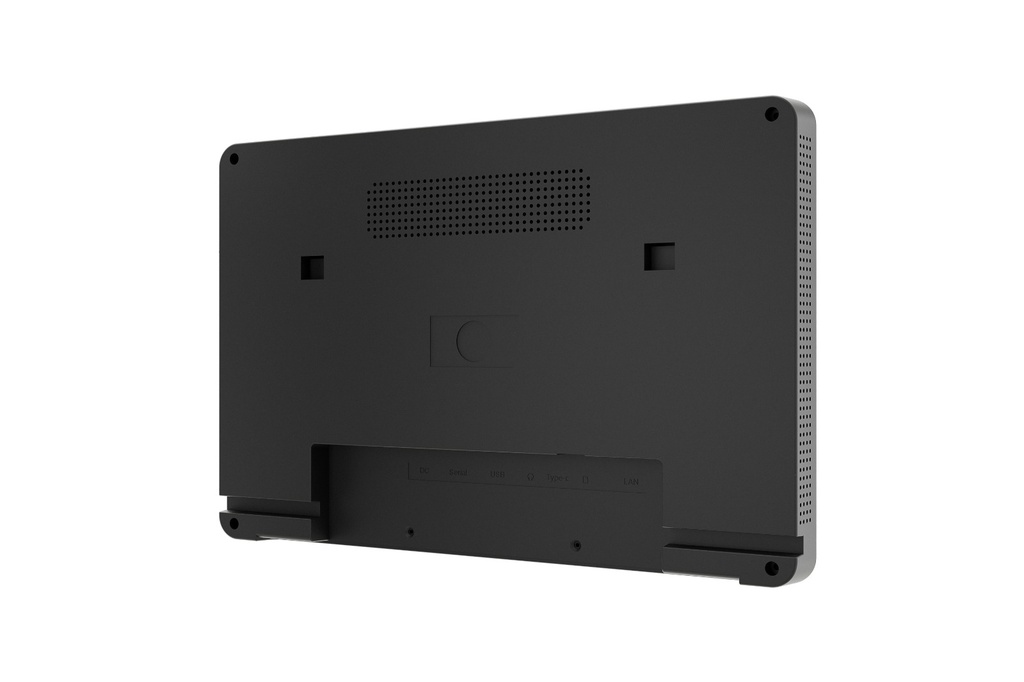

| Mounting options | VESA 75x75mm - screwholes 4M |
| Memory | 4GB-64GB |
| Camera | 5.0MP front camera |
| Including | Flatwall metal bracket |
Android Display
Our Android Displays are commercial models, specially designed and to use in a retail environment, online digital signage screens, info touch kiosk, etcetera.
The Android has a standard some programm apps installed, like a browser, google play store, explorer, and some extra apps.
You can install your own application on it. For instance a digital signage app or kiosk web app, webstore, etcetera.
We can also provide and help you with some retail app solutions, to help you to start your project. Find more about these apps at the software section.
These Android Displays have the following features:
- Touchscreen & Non-Touchscreen
- ROOTED ANDROID software version
- WIFI network
- LAN (RJ45) input socket for a cable network connection (not for all models)
Several types are available in: 10.1 / 13.3 / 14 / 15.6 / 18.5 / 21.5 / 24 / 27 / 32 / 43 / 55 inch sizes.
How does it work?
Watch this video to have an more detailed explanation how these Android screens work.
List of Features
easy setup and plug and play!
Rooted Android
Touchscreen.
WIFI, Bluetooth, and LAN
USB-A and USB-C and TF card
Internal Speakers
3.5mm Jack Output
Thin Closed Frame Plastic Housing
Color housing standard Black, Optional white.
12V Power adapter with 3 meter long cable
24/7 usage
Timer Clock Function (optional app)
Purposes
can be used in many places
Digital Signage Display
Built-in ShopDisplays
Advertisement Display
Shelf-edge Display
CounterDisplay
USAGE:
Plug in the power adapter, and immediately the Android display will turn on (no need to push a ON-OFF button).
You can hide the top and bottom bar in the Settings menu.
Install your software easily and lets play!
OPTIONAL:
- with or without internal battery
- LAN converter box, to connect to the portal at the backside.
MORE SPECS:
see SPECIFICATIONS TAB or download the specification sheet in the DOWNLOAD TAB, above.
