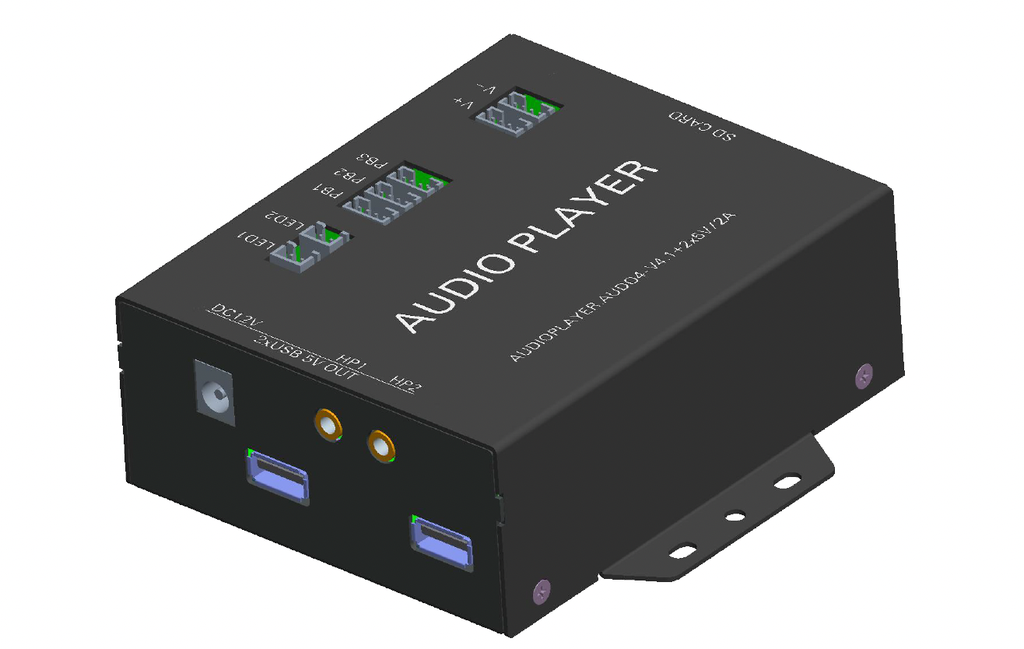

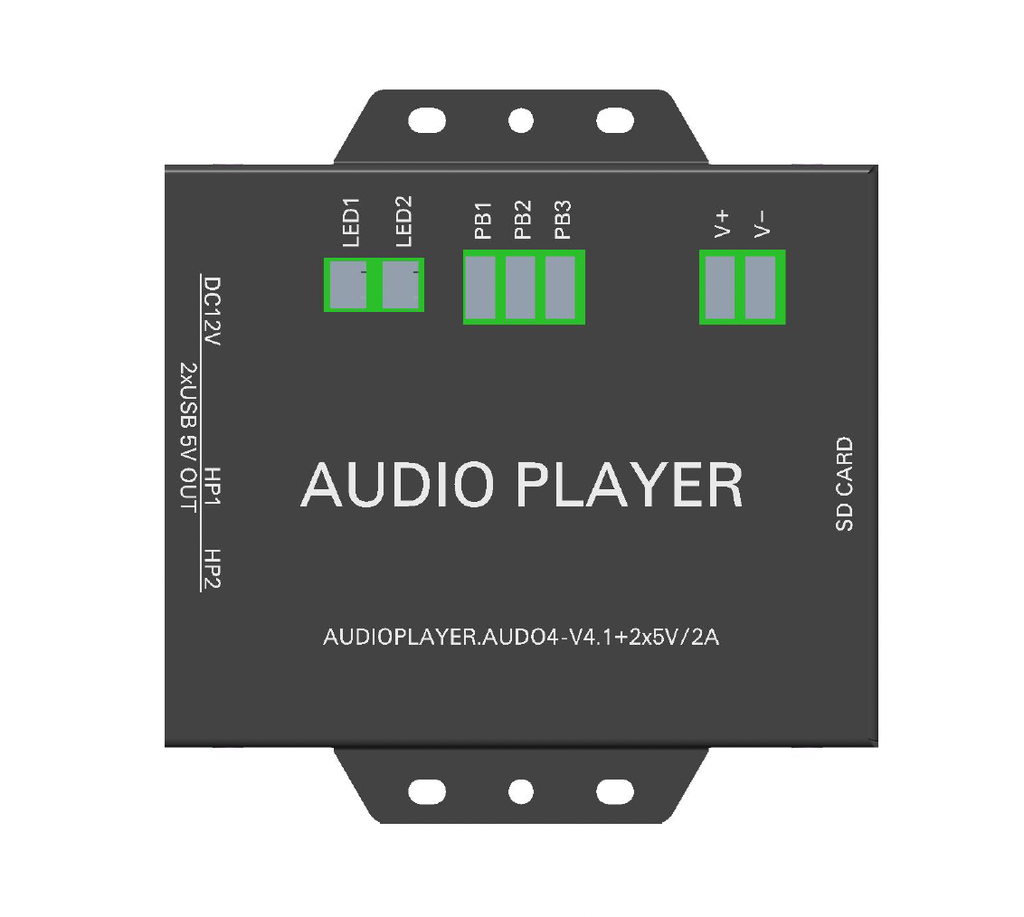

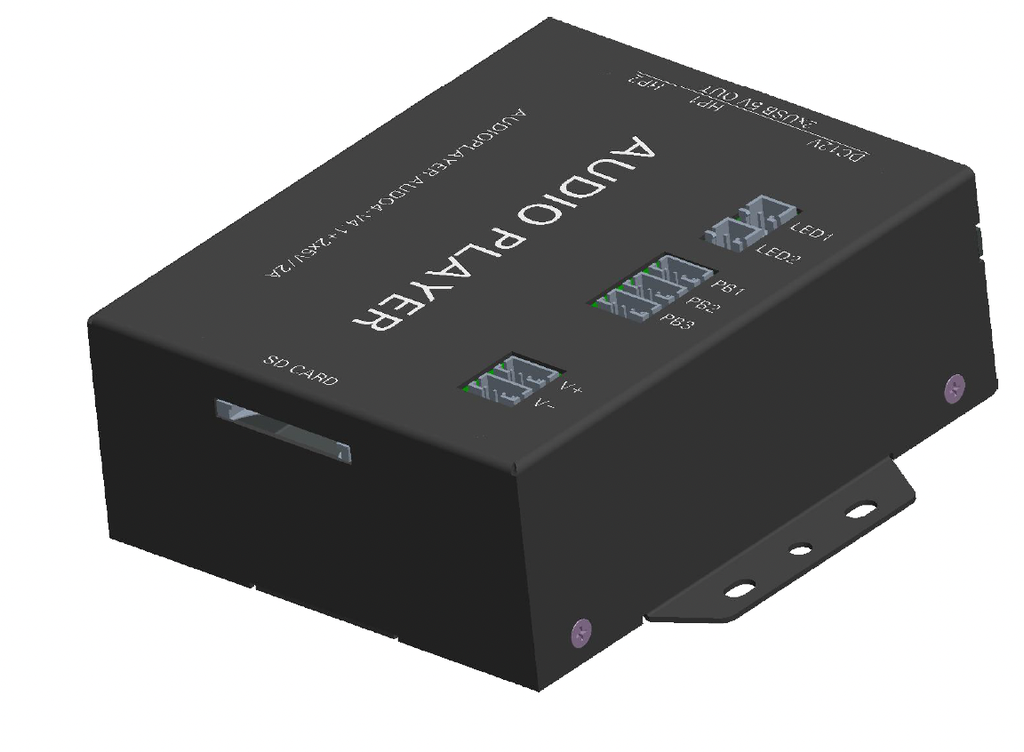

AudioPlayer AUD04 with 2x AUX + 2x LED out + 6x Pushbutton
Product Code: AT1504-AUD04-V4.1+2USB-5V2A
AUD04-4.1 Audio player for headphone or speaker demonstration
Support Audiofiles: wav. Mp3
(Wav: 48000/44100 Hz-16 bit)
(MP3: 48000/44100/32000 Hz-16 bit)
Interface Portals:
2x Input 3.5 Aux Jack-plug out
3x Input for Pushbutton / trigger, activation of headphone / speaker (f.i. Play-next or next or previous)
2x Input for Pushbutton / trigger, to adjust volume up and down.
2x Input USB Portal with 5V-2A out (f.i. to power/charge headphone / speaker)
1x SD card reader to play the Audio content from.
1x Input power adapter 12V-1.5A
2x LED power output for LED strips / LED panel
Optional: Change volume per AUX portal by adjusting the XML file which needs to be added on the SD card with the Audiofiles.

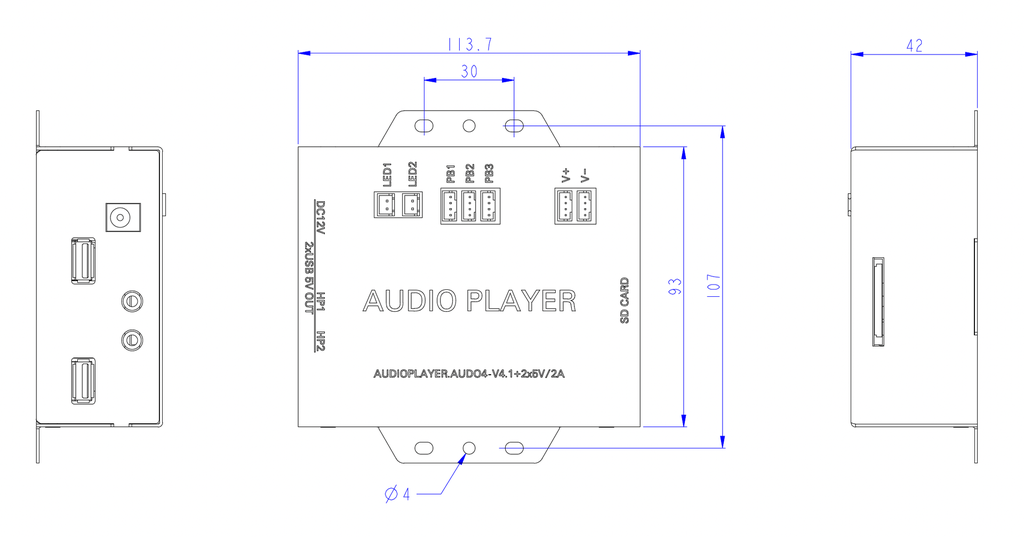

Housing: Metal powder coated housing with imprint of the interface portals
