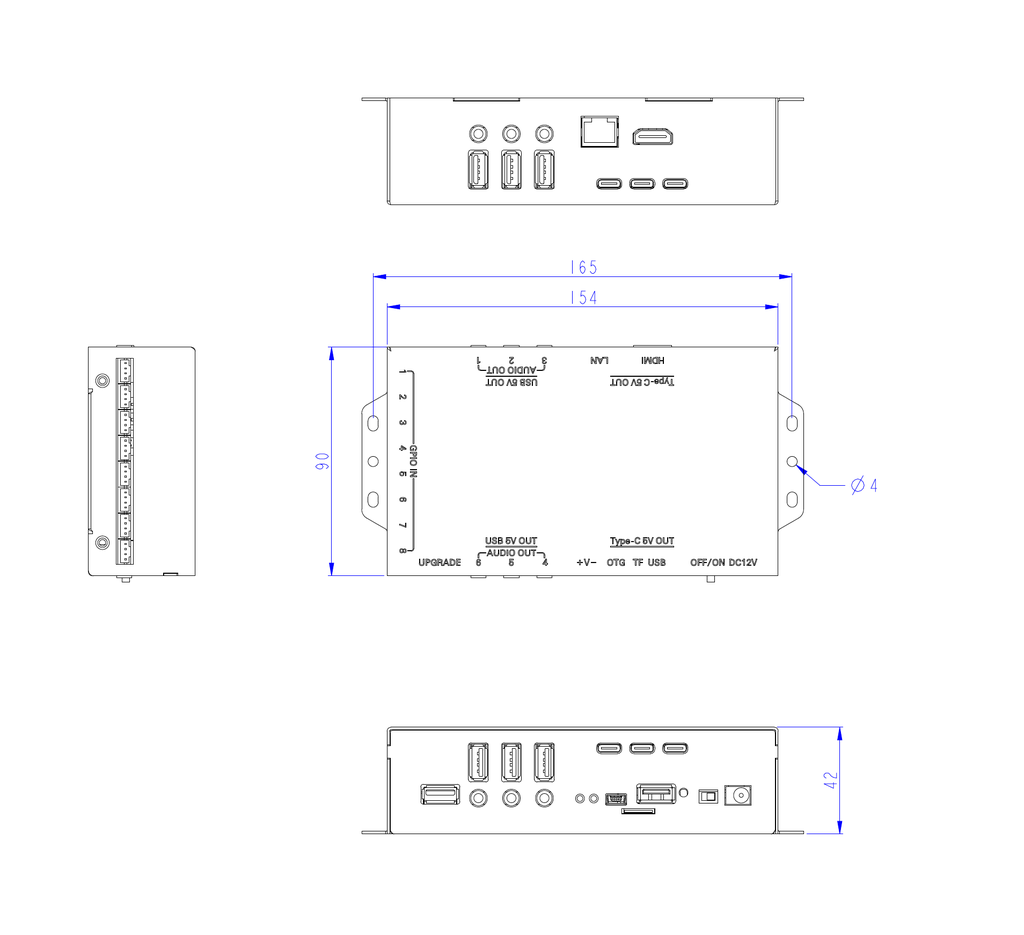

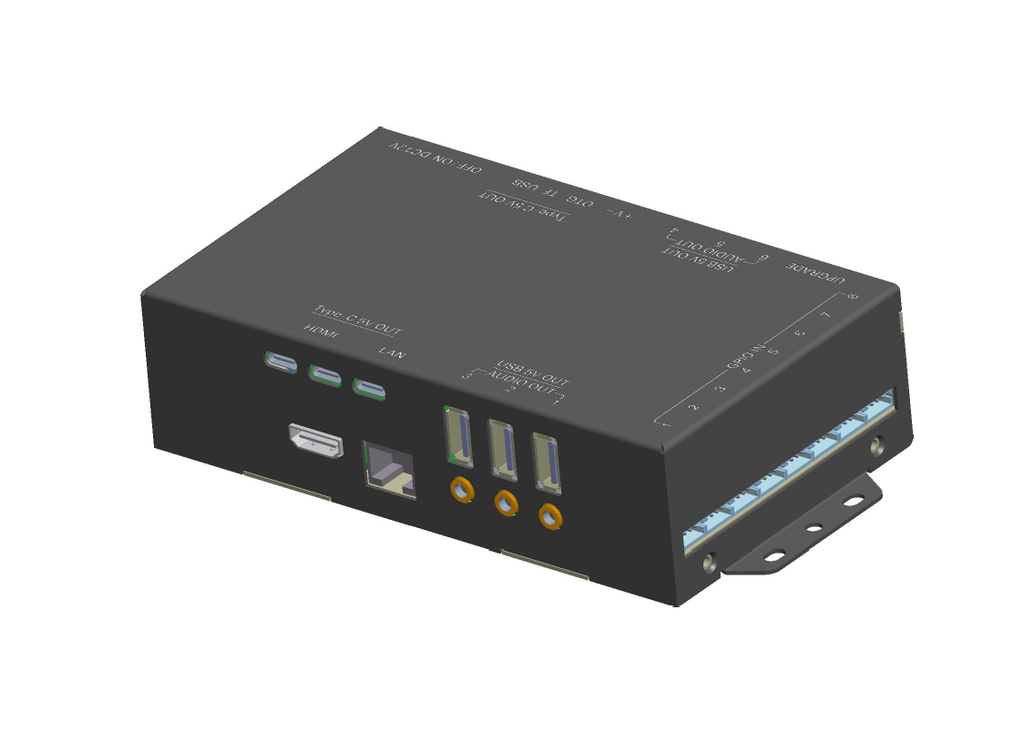

4K Mediaplayer - support 6x BlueTooth + Jack + USB Power
Product Code: AC-4K-AudMP-6xBT+6xJACK

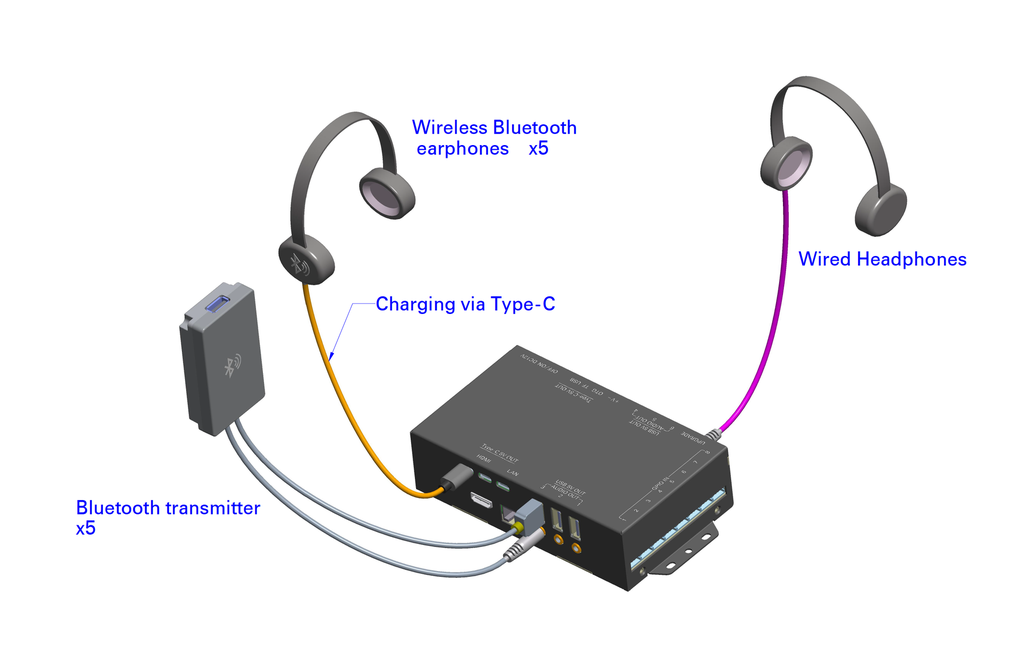

6x Bluetooth Dongles can be connected (our BT dongles)
Headphone, and will have dedicated connection due to this MAC address.
The jack portals on the mediaplayer can also be used for Headphone with wired jack.
There are 6x USB-C portals on the mediaplayer, so you can charge each Headphone by USB-C power cable.
There are 8x Trigger inputs for f.i. Pushbuttons to start audio and video, volume, next, previous track etcetera. Optional: There can be added extra: UART connnector to add a Capacitve Multi touch board.
There is 1x HDMI Out, to connect the mediaplayer to a Monitor LCD Screen and show the attraction video and trigger videos about the headphones.
There is LAN RJ45 for internet connection. Wi-Fi by Antenna is optional.
USB Portal to do auto-update content by USB Stick
TF card for content
USB upgrade portal (only needed to upgrade Android OS version / settings Android).
EU or UK Power adapter (let us know which one you will need).
NOTE: This mediaplayer comes without the BT dongles and Triggers. You can add these seperately.
