Audioboard 4xUSB-C+Audio+5V + 4xJack3.5m
Product Code: AC-1505-AUD03-V20.0
Audio portals: 4x Audio Jack 3.5mm, Audio portals: 4x USB-C with Audio and 5V power output, Pushbutton Portals: 4x inputs for external Pushbuttons or other trigger to play your audio tracks, Pushbutton Portals: 2x inputs for exteral Pushbutton to change volume up and down, LED light output: 4x Led output for led strips, PowerAdapter: 12V input, Media Input: SD Card or USB Stick, UpdatePortal: USB portal, Optional: 12V out portal for extra power board 12V
Including EU power adapter 12V-3.5A
| Audio portals | 4x Audio Jack 3.5mm 4x USB-C with Audio and 5V power output |
| Pushbutton Portals | 4x inputs for external Pushbuttons or other trigger to play your audio tracks 2x inputs for exteral Pushbutton to change volume up and down |
| LED light output | 4x Led output for led strips |
| PowerAdapter | 12V input |
| Media Input | SD Card or USB Stick |
| UpdatePortal | USB portal |
| Optional | 12V out portal for extra power board 12V |

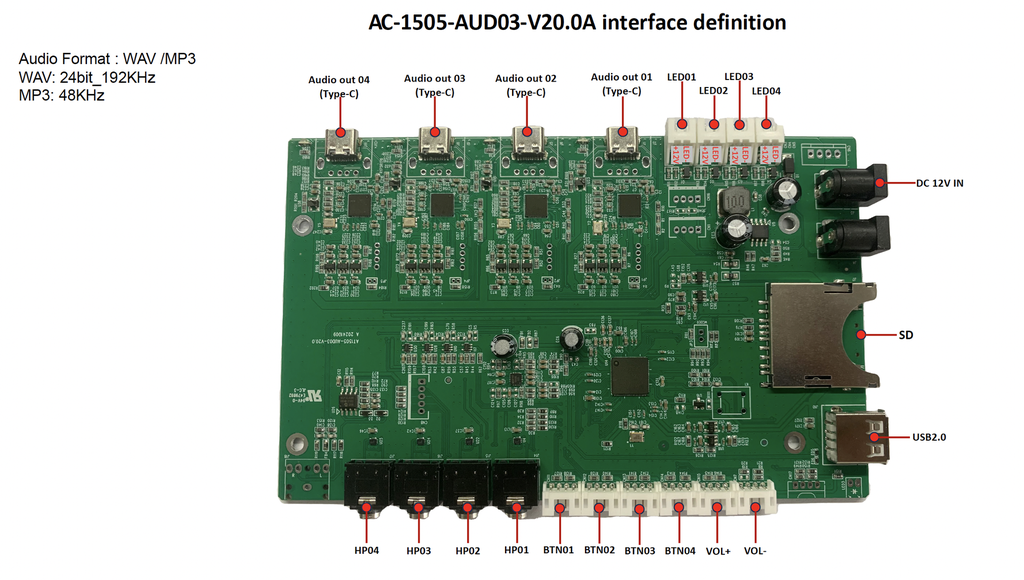

AC-1505-AUD03-V20.0 Audioboard 4xUSB-C Audio+5V + 4xJack3.5mm interface definition.pdf
Download
