8.1inch Long Stretched Display
Product Code: AC-081MF-MP-IPS-LS
Screen size: 8.1inch, Screen type: Non-Touchscreen, Screen type: Ultra Wide Stretched, LCD Panel resolution: 1600*480, LCD Panel Type: TFT LCD, Ratio: 3:1, Usage: 14/7, Housing type: Closed Metal Frame, Start-Up: AutoStart by plug-in the power-adapter, Interface - Connection portals: SD Cardreader, Interface - Connection portals: USB Portal, Interface - Connection portals: Mini USB Portal, Interface - Connection portals: Power Input DC 12V/1A, Operation System: Internal VideoPlayer (optional Android OS), Optional Features: External Trigger Buttons, Optional Features: HDMI IN portal
8inch Stretched Wide Screen
Dimensions: 218,5 x 85,85 x 24,2mm
This MediaScreen has an Internal VideoPlayer with Full HD resolution (1080P).
Video Format: MPEG1, MPEG2, AVI, MOV
Plug in a SD Card with your content and directly play your video (or slideshow). It will plays your video(s) continiously in a loop.
The mainboard can optionally come with extra in-outputs for interactivity.

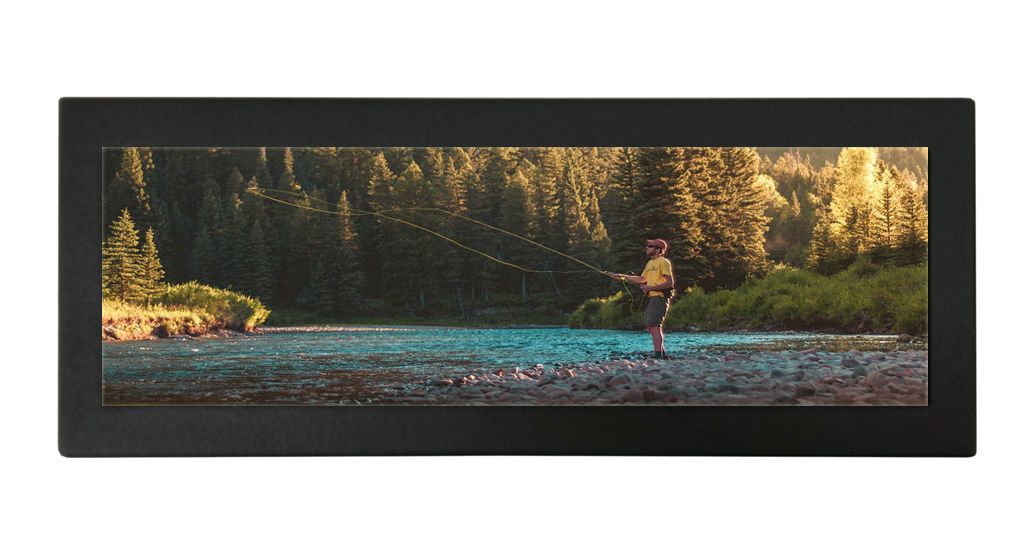

Wide stretched LCD
All kind of sizes
Can come with HDMI IN, internal videoplayer and Android OS with Wi-Fi and LAN connection.
List of Features
easy setup and plug and play!
Auto Start - Play - Loop your content (video/slides)
8" Full HD - TFT Panel 1600x480 pixels
Internal HD videoplayer 1080P

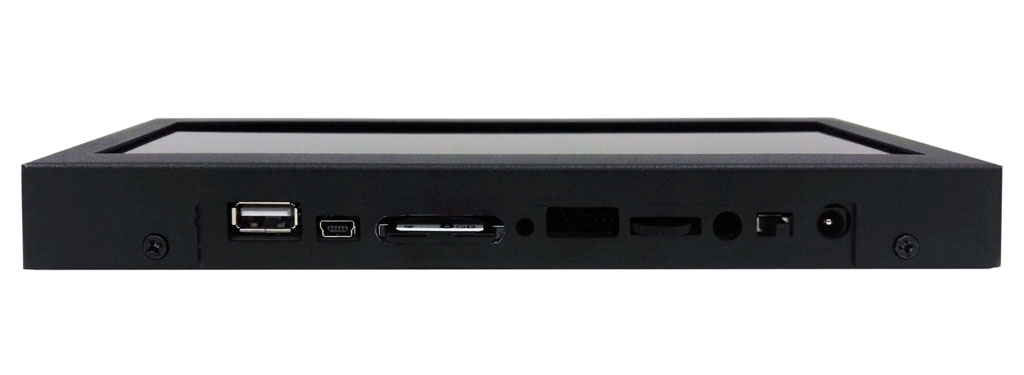

SD cardreader, USB portal and Micro USB
3.5mm Jack Output
Remote Control

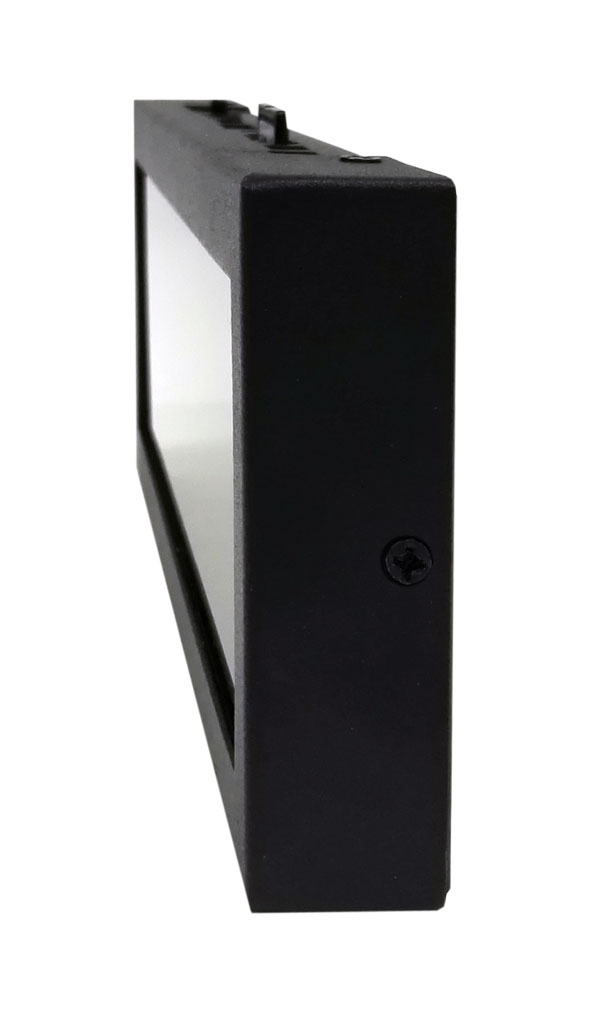

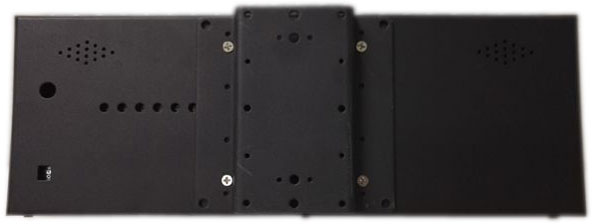

Closed Metal Frame
Color housing standard Black
12V Power adapter with 2.5 meter long cable
14/7: Usage up to 14 hours a day
Purposes
can be used in many places
Digital Signage Display
Built-in ShopDisplays
Advertisement Display
OPTIONAL:The mainboard can be turned into a multi-functionboard, serveral in-outputs can be added, and software can be made tailormade. Example features:
ADD INTERACTIVE FEATURES:
- Trigger Buttons for selection video / volume combined with LED lighting
- Output for LED lightning 5V/12V
- Motion Sensor / Lift-up light Sensor
- Multiple Audio Outputs for Speakers & Headphones
- Input Audio for Mobile Phone / iPod (auto-sensing)
- TouchScreen
- External Speakers
- 8D-Cell Batterybox for battery operated power
- Internal Memory to load your content on it.
- AutoCopy function by USB Stick to internal memory
- Software adjustments for you needs
Available Sizes for stretched models
The operating system can be: Android or HDMI or Interal Player
| Screen type | Non-Touchscreen or Ultra Wide Stretched |
| Optional Features | External Trigger Buttons or HDMI IN portal |
| Interface - Connection portals | SD Cardreader or USB Portal or Mini USB Portal or Power Input DC 12V/1A |
| Screen size | 8.1inch |
| LCD Panel Type | TFT LCD |
| LCD Panel resolution | 1600*480 |
| Ratio | 3:1 |
| Operation System | Internal VideoPlayer (optional Android OS) |
| Housing type | Closed Metal Frame |
| Start-Up | AutoStart by plug-in the power-adapter |
| Usage | 14/7 |
