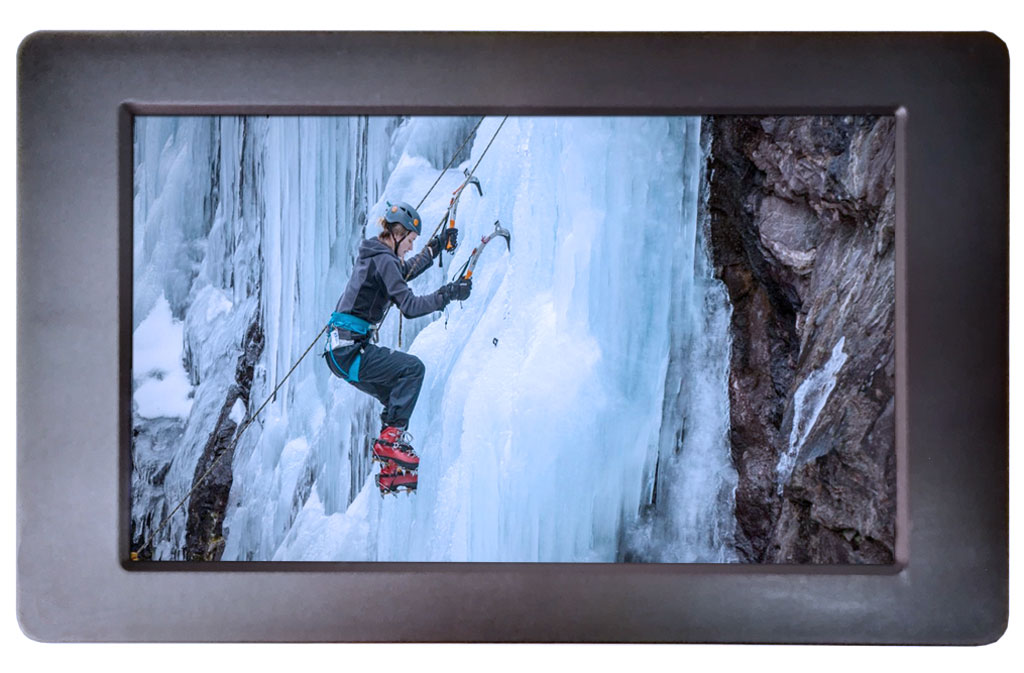

7inch MediaScreen - Plastic Housing
Product Code: AC-070PH-HD
[AC-070PH-HD] 7inch MediaScreen - Plastic Housing
Screen size: 7inch, Screen type: LCD screen only - no touch, LCD Panel Type: LCD Panel, LCD Panel resolution: 1024*600, Connection portals: SD Cardreader, USB Portal, Interface - Connection portals: 3.5mm Jack, Power Input DC 12V/1.5A, HDMI (MINI), Housing type: Closed plastic housing, Usage: 14/7, Speakers: 2x2OW, Mounting options: VESA Backstand, Addition Features: Internal Mediaplayer 1080P
Function: Monitor - HDMI IN and can play looping video from internal mediaplayer via USB Stick or SD card.
7inch MediaScreen - AutoStart-Play Video or Slides
- AutoStart when you switch on the shop electricity.
- Plays directly the Video and / or Slideshow when you turn on the display.
- Connect an external player (PC,Raspberry, Mediaplayer) by HDMI IN to play your content.
- Auto Loop: plays video / slideshow continuously in a loop.
- Auto ON-OFF clock to set up shop opening and closing times.
- Optional: OTG Function: AutoUpdate content by USB Stick (please request us!)
- Additional: Interactive triggers and sensors, see below more info.
Similar models available in: 7 / 10.1 / 11.6 / 13.3 / 14 / 15.6 / 18.5 / 21.5
/ 24 / 27 / 32inch
Display & Stands: Ideal for installation in retail store displays or exhibition stands.
MediaScreens: How does it work?
Watch the video to see how our MediaScreens work and what can be added additionally.
In this video we demonstrate our closed frame and open-frame mediascreen models and also some short demonstration about external features, such as External selection buttons, RFID trigger, LED lightning and Motion sensor.
You can find more information about the additional triggers via the section: Add Ons - Triggers, Sensors & Light
ADD ON's for these screens:
triggers, sensors, light, touch
Many kind of interactive elements can be plugged in our screens, plug and play and easy setup for content playing.
ask for our solutions, the setup can be made upon your custom demands!
List of Features
easy setup and plug and play!
Timer Clock Function (Optional)
SD cardreader and USB portal
Internal Speakers
3.5mm Jack Output
Remote Controll
Thin Closed Frame Plastic Housing

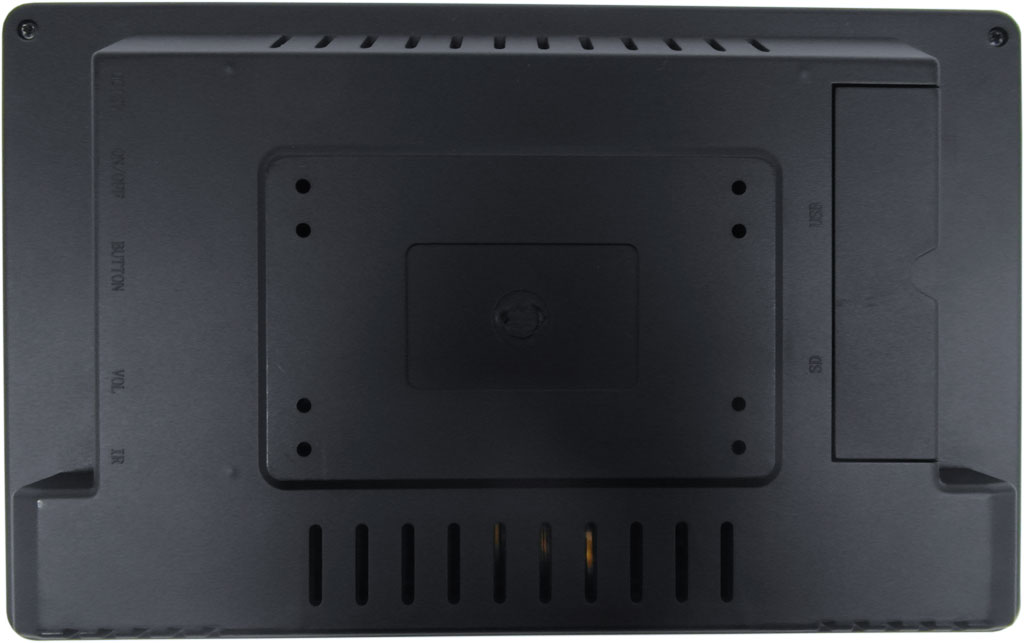

On backside: ScrewHoles for hangup or built-in & Backstand
Color housing standard Black, Optional white.
12V Power adapter with 3 meter long cable
14/7: Usage up to 14 hours a day
Purposes
can be used in many places
Digital Signage Display
Built-in ShopDisplays
Advertisement Display
Shelf-edge Display
CounterDisplay
ADD INTERACTIVE FEATURES:
- Trigger Buttons for selection video / volume combined with LED lighting
- Output for LED lightning 5V/12V
- Motion Sensor / Lift-up light Sensor
- Multiple Audio Outputs for Speakers & Headphones
- Input Audio for Mobile Phone / iPod (auto-sensing)
- TouchScreen
- External Speakers
- 8D-Cell Batterybox for battery operated power
- Internal Memory to load your content on it.
- AutoCopy function by USB Stick to internal memory.
- Software adjustments for you needsUSAGE:
This MediaScreen has an Internal VideoPlayer with HD resolution (1080P). Plug in a SD card or USB Stick with your content and directly play your video (or slideshow). It will play your video(s) continiously in a loop. The timer function can be used for Automatic On-Off (optional, not included.
Optional Features | (External) Liftup Sensor or (External) RFID Trigger or (External) Touch Buttons - capacitive or (External) Light Sensor or (External) Magnet Trigger or (External) Pushbuttons or (External) Barcode Scanner or (External) Speakers or (External) Volume buttons or (External) IR receiver |

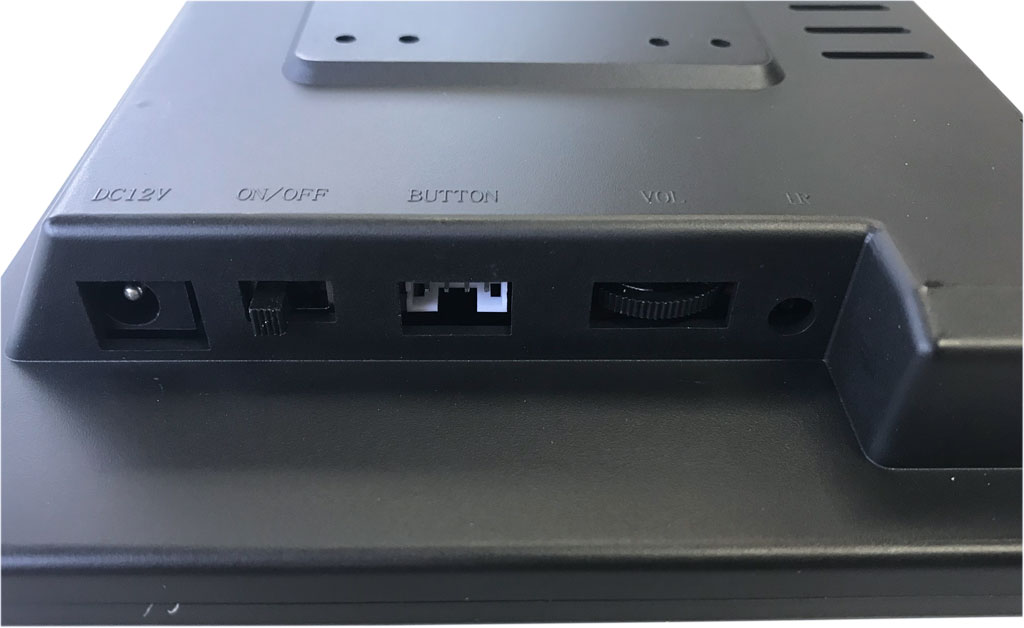

Interface - Connection portals | SD Cardreader or USB Portal or 3.5mm Jack or Power Input DC 12V/1.5A or HDMI (MINI) |
Screen size | 7inch |
Screen type | LCD screen only - no touch |
LCD Panel Type | IPS Panel , LCD Panel |
LCD Panel resolution | 1024*600 |
Housing type | Closed plastic housing |
Usage | 14/7 |
Speakers | 2x2OW |
Mounting options | VESA Backstand |
Addition Features | Internal Mediaplayer 1080P |
Function | Monitor - HDMI IN |
7inch MediaScreen - AutoStart-Play Video or Slides
- AutoStart when you switch on the shop electricity.
- Plays directly the Video and / or Slideshow when you turn on the display.
- Connect an external player (PC,Raspberry, Mediaplayer) by HDMI IN to play your content.
- Auto Loop: plays video / slideshow continuously in a loop.
- Auto ON-OFF clock to set up shop opening and closing times.
- Optional: OTG Function: AutoUpdate content by USB Stick (please request us!)
- Additional: Interactive triggers and sensors, see below more info.
Similar models available in: 7 / 10.1 / 11.6 / 13.3 / 14 / 15.6 / 18.5 / 21.5
/ 24 / 27 / 32inch
Display & Stands: Ideal for installation in retail store displays or exhibition stands.
MediaScreens: How does it work?
Watch the video to see how our MediaScreens work and what can be added additionally.
In this video we demonstrate our closed frame and open-frame mediascreen models and also some short demonstration about external features, such as External selection buttons, RFID trigger, LED lightning and Motion sensor.
You can find more information about the additional triggers via the section: Add Ons - Triggers, Sensors & Light
ADD ON's for these screens:
triggers, sensors, light, touch
Many kind of interactive elements can be plugged in our screens, plug and play and easy setup for content playing.
ask for our solutions, the setup can be made upon your custom demands!
List of Features
easy setup and plug and play!
Timer Clock Function (Optional)
SD cardreader and USB portal
Internal Speakers
3.5mm Jack Output
Remote Controll
Thin Closed Frame Plastic Housing
On backside: ScrewHoles for hangup or built-in & Backstand
Color housing standard Black, Optional white.
12V Power adapter with 3 meter long cable
14/7: Usage up to 14 hours a day
Purposes
can be used in many places
Digital Signage Display
Built-in ShopDisplays
Advertisement Display
Shelf-edge Display
CounterDisplay
ADD INTERACTIVE FEATURES:
- Trigger Buttons for selection video / volume combined with LED lighting
- Output for LED lightning 5V/12V
- Motion Sensor / Lift-up light Sensor
- Multiple Audio Outputs for Speakers & Headphones
- Input Audio for Mobile Phone / iPod (auto-sensing)
- TouchScreen
- External Speakers
- 8D-Cell Batterybox for battery operated power
- Internal Memory to load your content on it.
- AutoCopy function by USB Stick to internal memory.
- Software adjustments for you needsUSAGE:
This MediaScreen has an Internal VideoPlayer with HD resolution (1080P). Plug in a SD card or USB Stick with your content and directly play your video (or slideshow). It will play your video(s) continiously in a loop. The timer function can be used for Automatic On-Off (optional, not included.
