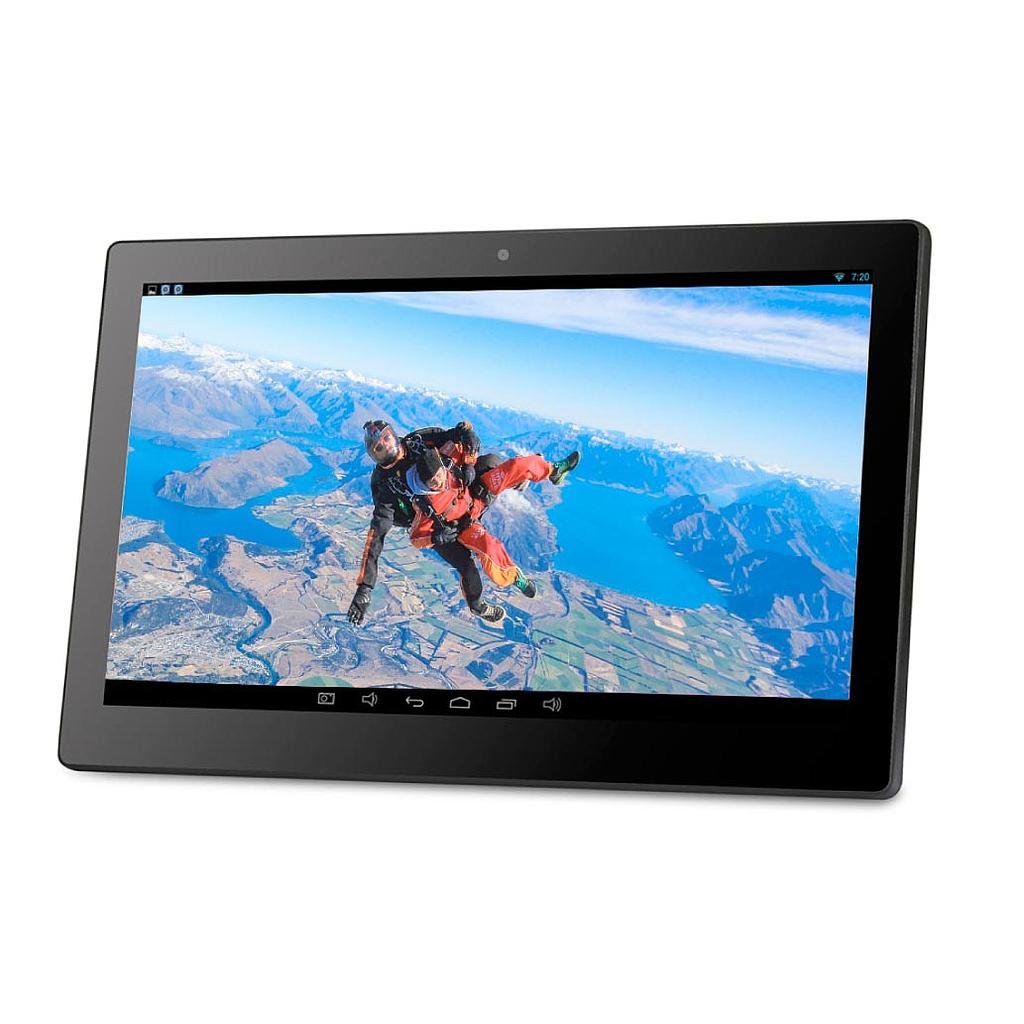

15.6inch Android Display - TouchScreen
Product Code: EL-1562AIO-T-OS6.0-RK3288
Screen type: Touchscreen - Capacitive, Operation System & CPU: Android 6.0 - Rockchip RK3288, Rooted, Quad Core Cortex A17, 1.8G, Screen size: 15.6inch, Housing type: Closed Plastic Frame, LCD Panel resolution: 1920*1080, Ratio: 16:9, LCD Panel Type: IPS Panel, LCD Panel resolution: 1920*1080, Interface - Connection portals: SD/MMC Cardreader, LAN input for Internet connection - RJ45, Mini USB Portal, 3.5mm Jack, USB Portal, Network options: Wi-Fi, LAN/WLAN, Bluetooth 4.0, Mounting options: Backstand, VESA 100x100mm - screwholes 4mm, Memory: RAM 2GB - Internal Memory: 16GB, Start-Up: AutoStart by plug-in the power-adapter, Usage: 24/7, Speakers: Internal Speakers: 2x 2W-8Ohm
Including:
EU Power Adapter
Installation of your software:
Install your own software (or from your client) by USB Stick. Most public software APK files you can download from websites like www.apkmirror.com.
Note: this is a rooted industrial Android screen, which means the Google Playstore is mostly not working in many regions. Please install an other Store if needed.
Android Display
Our Android Displays are commercial models, specially designed and to use in a retail environment, online digital signage screens, info touch kiosk, etcetera.
The Android has a standard some programm apps installed, like a browser, google play store, explorer, and some extra apps.
You can install your own application on it. For instance a digital signage app or kiosk web app, webstore, etcetera.
We
can also provide and help you with some retail app solutions, to help
you to start your project. Find more about these apps at the software section.
These Android Displays have the following features:
- - Touchscreen & Non-Touchscreen
- - ROOTED ANDROID 6.0 software version
- - WIFI network
- - LAN (RJ45) input socket for a cable network connection (not for all models)
- - 3G-4G connection via USB SIM dongle (optional, not included
This desk-model shape is available in: 10.1 / 13.3 / 14 / 15.6 / 18.5 / 21.5 / 24 / 27 / 32 / 43 / 55 inch sizes.
Different models, sizes & shapes
Watch this video to have an impression how these Android screens work and which models are available!
How does it work?
Watch this video to have an more detailed explanation how these Android screen work.
List of Features
easy setup and plug and play!
Auto Start when plug in the power adapter
Rooted Android 6.0 / Chip RK3288 / RAM 2GB-IM 16GB / CPU Quad core cortex A17, 1.8G
Capacitive Touchscreen.
15.6" IPS LCD panel 1920x1080 pixels (16:9 ratio)
Internal HD videoplayer 1080P
WIFI, Bluetooth, optional LAN and 3G
SD cardreader and 1x USB portal
Internal Speakers
3.5mm Jack Output
Thin Closed Frame Plastic Housing
Color housing standard Black, Optional white.
12V Power adapter with 3 meter long cable
24/7 usage
Timer Clock Function (optional app)
Rooted Android 6.0 / Chip RK3288 / RAM 2GB-IM 16GB / CPU Quad core cortex A17, 1.8G
Capacitive Touchscreen.
WIFI, Bluetooth, optional LAN and 3G
SD cardreader and 1x USB portal
Internal Speakers
3.5mm Jack Output
Thin Closed Frame Plastic Housing
Color housing standard Black, Optional white.
12V Power adapter with 3 meter long cable
24/7 usage
Timer Clock Function (optional app)
Purposes
can be used in many places
Digital Signage Display
Built-in ShopDisplays
Advertisement Display
Shelf-edge Display
CounterDisplay
USAGE:
Plug in the power adapter, and immediately the Android display will turn on (no need to push a ON-OFF button).
You can hide the top and bottom bar in the Settings menu.
Install your software easily and lets play!
OPTIONAL:
- with or without internal battery
- LAN converter box, to connect to the portal at the backside.
MORE SPECS:
see SPECIFICATIONS TAB or download the specification sheet in the DOWNLOAD TAB, above.
| Operation System | Quad Core Cortex A17, 1.8G or Rooted or Android 6.0 - Rockchip RK3288 |
| Interface - Connection portals | SD/MMC Cardreader or USB Portal or Mini USB Portal or LAN input for Internetconnection - RJ45 or 3.5mm Jack |
| Network options | Wi-Fi or LAN/WLAN or Bluetooth 4.0 or Mobile Network (3G-4G) - Optional by USB SIM Dongle |

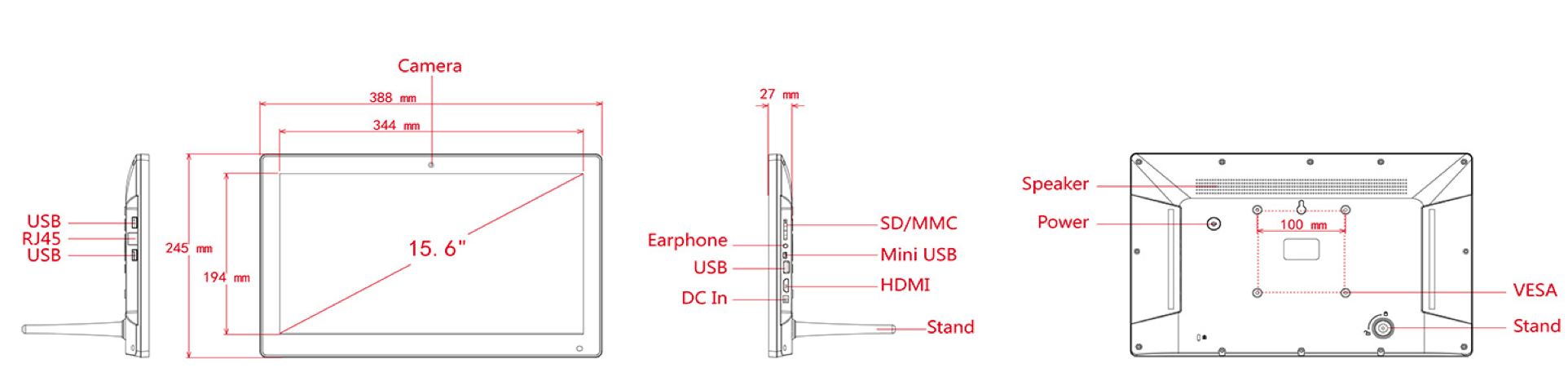

| Mounting options | Backstand or VESA 100x100mm - screwholes 4mm |
| Screen size | 15.6inch |
| Screen type | Touchscreen - Capacitive |
| LCD Panel Type | IPS Panel |
| LCD Panel resolution | 1920*1080 |
| Ratio | 16:9 |
| Optional Features | Software Systems for Digital Signage & Kiosks |
| Housing type | Closed Plastic Frame |
| Start-Up | AutoStart by plug-in the power-adapter |
| Usage | 24/7 |
| Speakers | Internal Speakers: 2x 2W-8Ohm |
| Memory | RAM 2GB - Internal Memory: 16GB |
Android Display
Our Android Displays are commercial models, specially designed and to use in a retail environment, online digital signage screens, info touch kiosk, etcetera.
The Android has a standard some programm apps installed, like a browser, google play store, explorer, and some extra apps.
You can install your own application on it. For instance a digital signage app or kiosk web app, webstore, etcetera.
We
can also provide and help you with some retail app solutions, to help
you to start your project. Find more about these apps at the software section.
These Android Displays have the following features:
- - Touchscreen & Non-Touchscreen
- - ROOTED ANDROID 6.0 software version
- - WIFI network
- - LAN (RJ45) input socket for a cable network connection (not for all models)
- - 3G-4G connection via USB SIM dongle (optional, not included
This desk-model shape is available in: 10.1 / 13.3 / 14 / 15.6 / 18.5 / 21.5 / 24 / 27 / 32 / 43 / 55 inch sizes.
Different models, sizes & shapes
Watch this video to have an impression how these Android screens work and which models are available!
How does it work?
Watch this video to have an more detailed explanation how these Android screen work.
List of Features
easy setup and plug and play!
Auto Start when plug in the power adapter
Rooted Android 6.0 / Chip RK3288 / RAM 2GB-IM 16GB / CPU Quad core cortex A17, 1.8G
Capacitive Touchscreen.
15.6" IPS LCD panel 1920x1080 pixels (16:9 ratio)
Internal HD videoplayer 1080P
WIFI, Bluetooth, optional LAN and 3G
SD cardreader and 1x USB portal
Internal Speakers
3.5mm Jack Output
Thin Closed Frame Plastic Housing
Color housing standard Black, Optional white.
12V Power adapter with 3 meter long cable
24/7 usage
Timer Clock Function (optional app)
Rooted Android 6.0 / Chip RK3288 / RAM 2GB-IM 16GB / CPU Quad core cortex A17, 1.8G
Capacitive Touchscreen.
WIFI, Bluetooth, optional LAN and 3G
SD cardreader and 1x USB portal
Internal Speakers
3.5mm Jack Output
Thin Closed Frame Plastic Housing
Color housing standard Black, Optional white.
12V Power adapter with 3 meter long cable
24/7 usage
Timer Clock Function (optional app)
Purposes
can be used in many places
Digital Signage Display
Built-in ShopDisplays
Advertisement Display
Shelf-edge Display
CounterDisplay
USAGE:
Plug in the power adapter, and immediately the Android display will turn on (no need to push a ON-OFF button).
You can hide the top and bottom bar in the Settings menu.
Install your software easily and lets play!
OPTIONAL:
- with or without internal battery
- LAN converter box, to connect to the portal at the backside.
MORE SPECS:
see SPECIFICATIONS TAB or download the specification sheet in the DOWNLOAD TAB, above.
