14inch Android Display - Touchscreen
Product Code: EL-1413AIO-T-OS7.1-RK3399
Housing type: Closed Plastic Frame, Screen size: 14inch, Screen type: Touchscreen - Capacitive, LCD Panel Type: LCD, LCD Panel resolution: 1920*1080, Resolution Internal VideoPlayer: 1920*1080, Operation System & CPU: Rooted, Dual Core A72, Quad Core A53, RockChip RK3399, Android 7.1, Memory: RAM 2GB - Internal Memory: 16GB, Network options: LAN/WLAN, Bluetooth 4.0, Wifi, Interface - Connection portals: USB Portal, Mini USB Portal, HDMI OUT, 3.5mm Jack, SD Cardreader, Power Input DC 12V/1.5A, Camera: 2.0MP front camera, Speakers: 2*2W, Mounting options: VESA 100x100mm - screwholes 4mm, Ratio: 16:9, Start-Up: AutoStart by plug-in the power-adapter, Usage: 24/7, PowerAdapter: AC/DC 12V/1.5A
Including:
EU Power Adpater
Installation of your software:
Install your own software (or from your client) by USB Stick. Most public software APK files you can download from websites like www.apkmirror.com.
Note: this is a rooted industrial Android screen, which means the Google Playstore is mostly not working in many regions. Please install an other Store if needed.
How does it work?
Watch this video to have an more detailed explanation how these Android screens work.
List of Features
easy setup and plug and play!
Rooted Android 7.1 / Chip RK3399 / RAM 2GB-IM 16GB / CPU Quad core cortex A53, 2.0G
Capacitive TouchScreen (10 points, optional NON-touchscreen)
WIFI, Bluetooth, optional LAN and 3G
SD cardreader and 1x USB portal
Internal Speakers
3.5mm Jack Output
Thin Closed Frame Plastic Housing
Color housing standard Black, Optional white.
12V Power adapter with 3 meter long cable
24/7 usage
Timer Clock Function (optional app)
Purposes
can be used in many places
Digital Signage Display
Built-in ShopDisplays
Advertisement Display
Shelf-edge Display
CounterDisplay
USAGE:
Plug in the power adapter, and immediately the Android display will turn on (no need to push a ON-OFF button).
You can hide the top and bottom bar in the Settings menu.
Install your software easily and lets play!
OPTIONAL:
- with or without internal battery
- LAN converter box, to connect to the portal at the backside.
MORE SPECS:
see SPECIFICATIONS TAB or download the specification sheet in the DOWNLOAD TAB, above.
| Optional Features | Software Systems for Digital Signage & Kiosks or 3G Network via USB-SimCard Dongle |
| Operation System | Android 7.1 - RockChip RK3399 or Dual Core A72 or Quad Core A53 or Rooted or RockChip RK3399 |

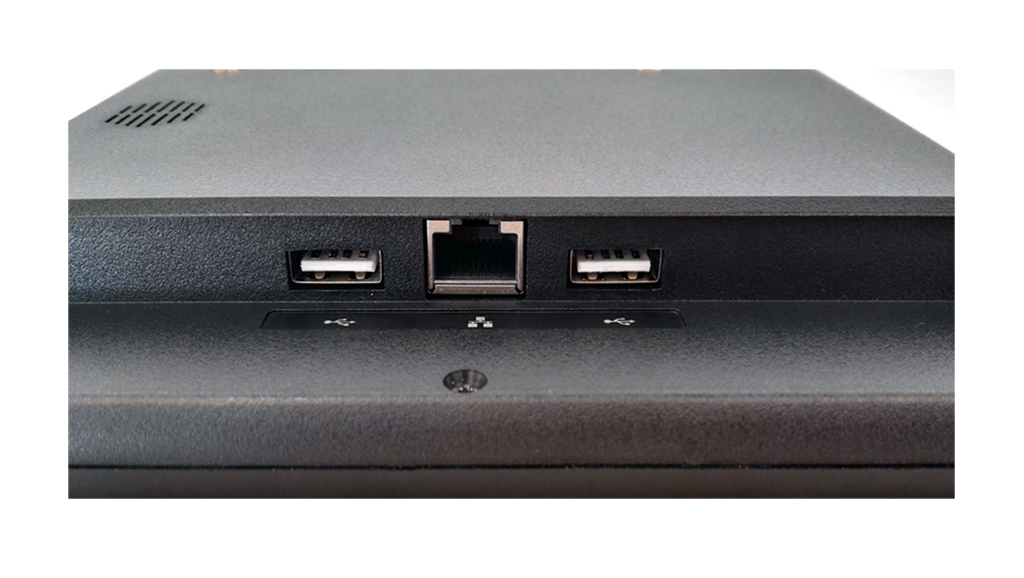

| Interface - Connection portals | HDMI OUT or SD Cardreader or USB Portal or Mini USB Portal or 3.5mm Jack or Power Input DC 12V/1.5A |
| Network options | Wifi or LAN/WLAN or Bluetooth 4.0 or Mobile Network (3G-4G) - Optional by USB SIM Dongle |
| Screen size | 14inch |
| Screen type | Touchscreen - Capacitive |
| LCD Panel Type | LCD |
| LCD Panel resolution | 1920*1080 |
| Ratio | 16:9 |
| Resolution Internal VideoPlayer | 1920*1080 |
| Housing type | Closed Plastic Frame |
| Start-Up | AutoStart by plug-in the power-adapter |
| Usage | 14/7 , 24/7 |
| Speakers | 2*2W |

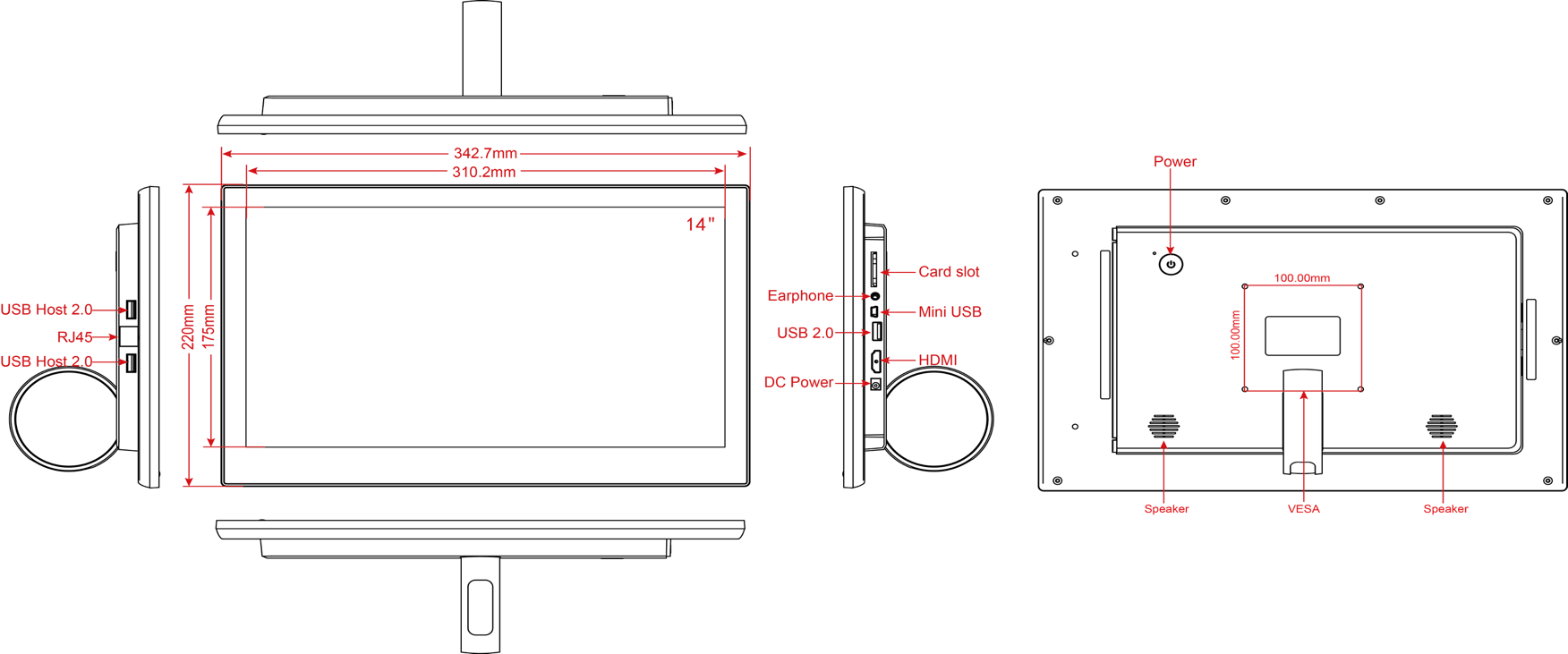

| Mounting options | VESA 100x100mm - screwholes 4mm |
| Memory | RAM 2GB - Internal Memory: 16GB |
| Camera | 2.0MP front camera |
| PowerAdapter | AC/DC 12V/1.5A |
