10.1inch Android MeetingRoom Display - TouchScreen - White - INCLUDING: POE / NFC / RFID

Product Code: EL-1053AIO-T-LEDBAR-WH-OS10-RK3399

30-day money-back guarantee
Free Shipping in U.S.
Buy now, get in 2 days

MeetingRoom & Desk booking screens

Android (touch) Screens which can be used outside the Meeting Room to indicate the status of the occupancy of the room and when it can be available again. The screen has led light edges to show the status of the occupancy.

These kind of screens can also be used as desk occupancy screens; put the screen on a desk for status indication of occupancy and timings.

Odoo • Image and Text

Download the productsheet

Find all information about this product in this productsheet including specifacations and drawing.


Roombooking explained on the ISE event.


Room Booking Display

Android (touch) displays which can be used as Room Booking displays. Or can also be used as normal (touch displays)

Contact us


Google Play store is not always working in some regions, but do not be afraid: most of the times you do not need this store. You just can install your own/clients (signage) APK by USB Stick or download it from a website and install it. Quiet often, you can download APK files from or or ask your client for the APK needed to install.
The benefit of not using the Google Playstore: you are not being watched by Google and Google will not get your userdata which you do not want to share with them anyway.

PS: if you really need Google Playstore, we can check if it is possible, but only for larger order quantites.

List of Features

easy setup and plug and play!
 Auto Start when plug in the power adapter

Rooted Android 10 Chip RK3399, RAM 2GB-IM 16GB / Dual-core ARM Cortex-A72 MPCore processor and Quad-core ARM Cortex-A53 MPCore processor, Mali T860 MP4 GPU

Capacitive TouchScreen (10 points, optional NON-touchscreen

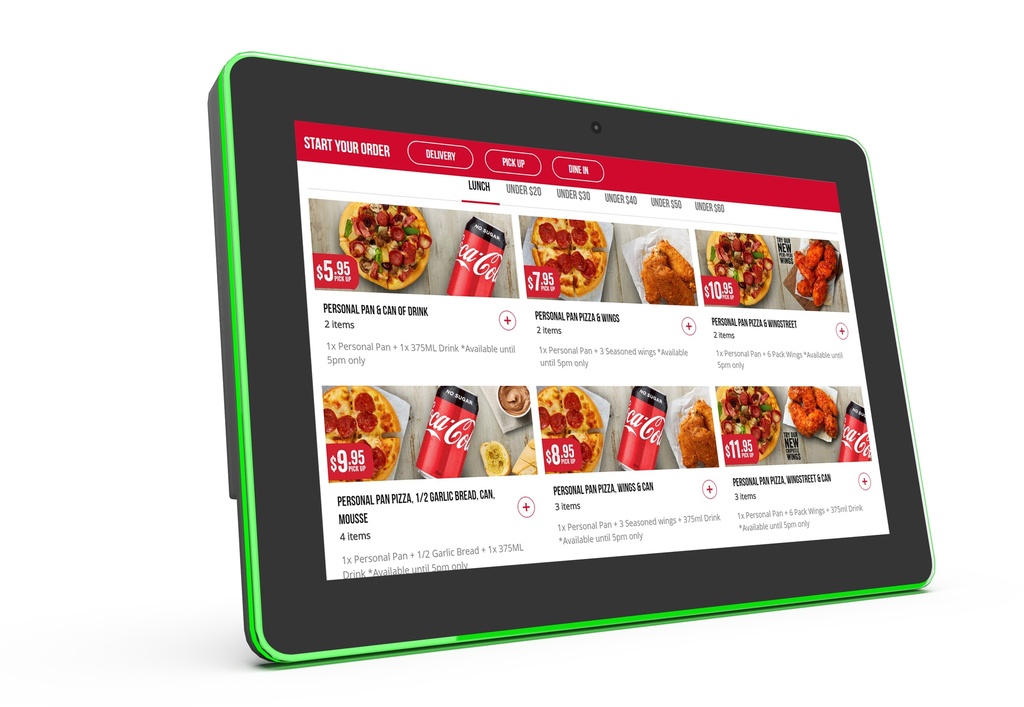

LED Bars around the screen, can be interactive with f.i. Roombooking software to indicate the status of the Meeting Room occupation

Colors can change in all kind of RGB Colors

10.1" IPS LCD panel 1280x800 pixels (16:10 ratio)

Internal HD videoplayer 1080P

WIFI, Bluetooth, optional LAN and 3G

SD card reader, USB portal and Micro USB portal

Internal Speakers

3.5mm Jack Output

Thin Closed Frame Plastic Housing

Color housing Black or White

12V Power adapter with 2.5 meter long cable

24/7 usage

Timer Clock Function (optional app)

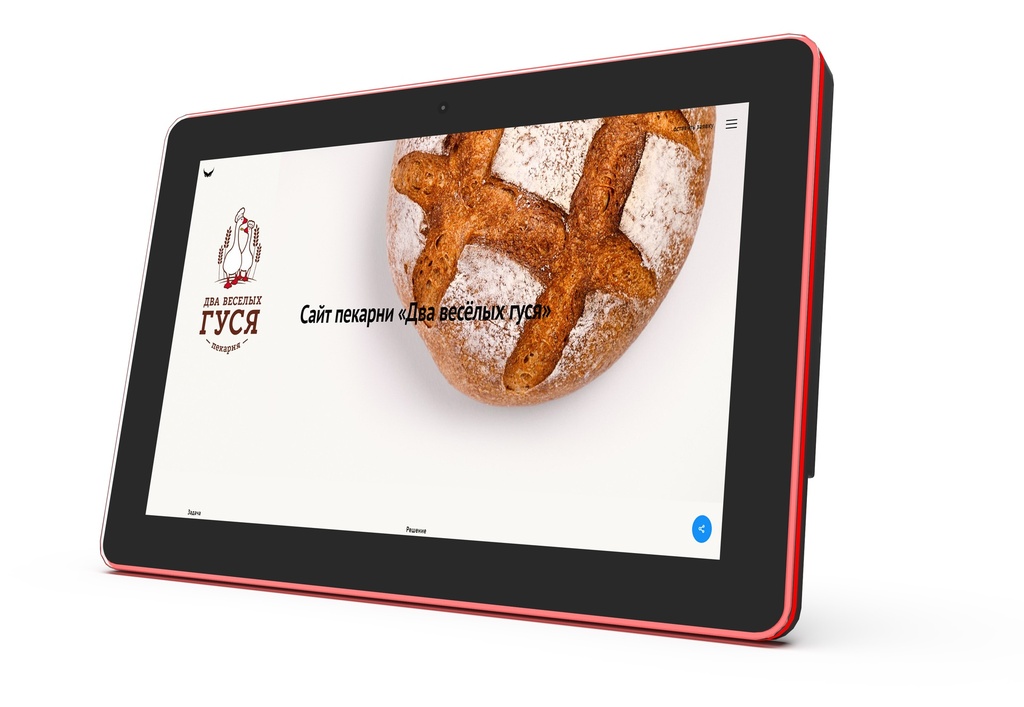

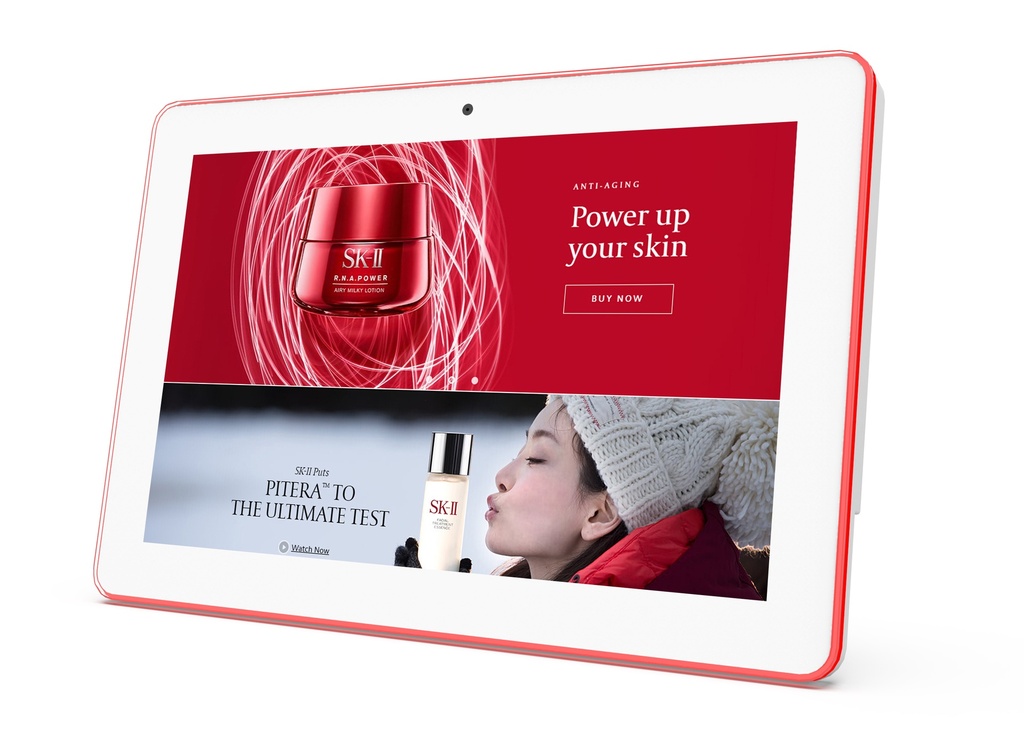

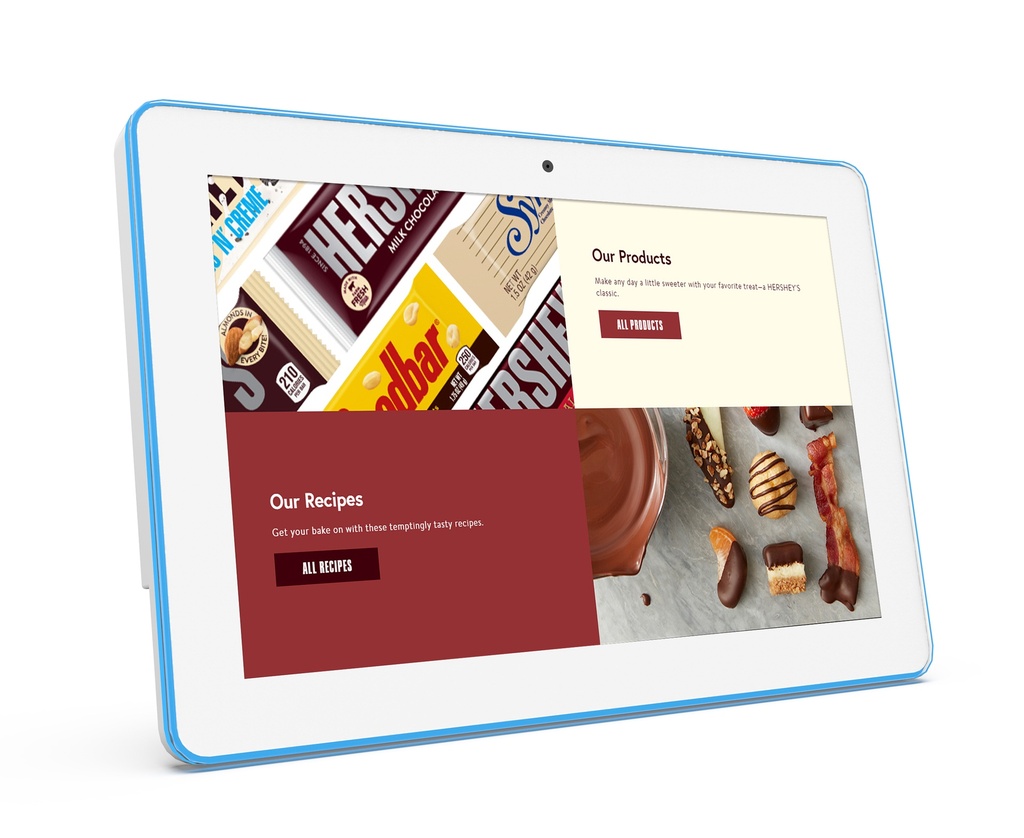

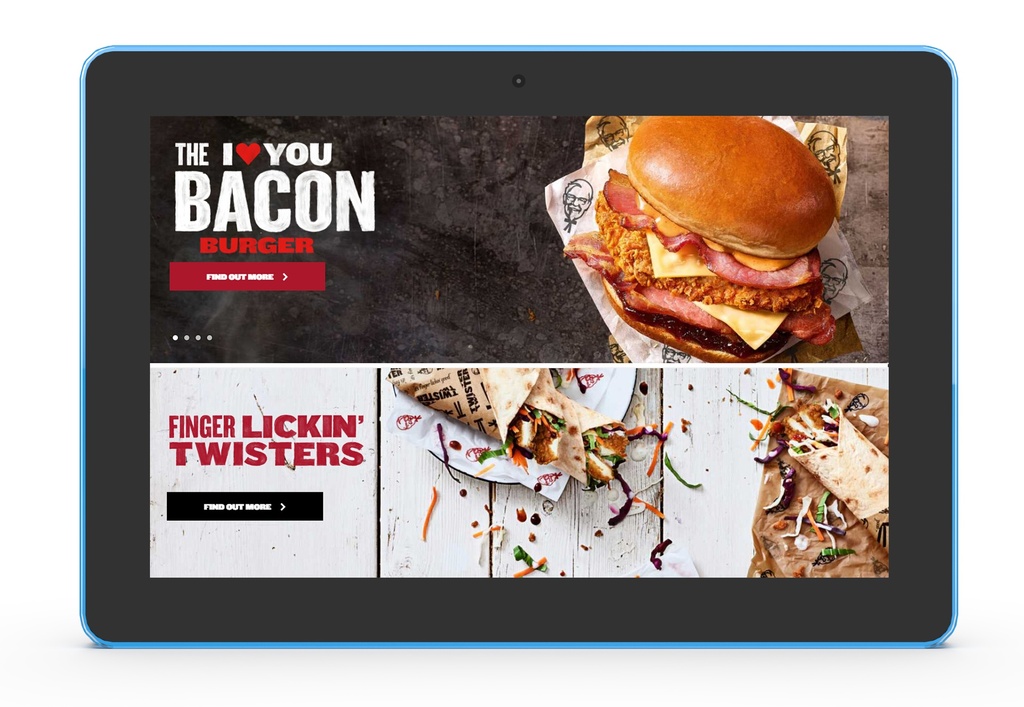

RoomBooking screen for reservation & occupation status + Digital Signage features (f.i. logos / videos)


Occupation status is indicated OnScreen and LedLight color at the sides.


You can install your own software or we can suggest you some software options.


This Android Display can be used in a commercial environment. The Display has Rooted Android OS.

Powering the screen is possible by LAN cable (PoE) and normal Power Adapter.


- NFC Reader to scan NFC tags / RFID Reader.

- If detection movement, it will turn on (by camera movement)


Additionally, we can provide you Room Booking Software with an online CMS system (standard not included) or we can install your software on the devices for larger order quantities. The Internal Memory can be upgraded.

Screen size


Screen type

Touchscreen - Capacitive

LCD Panel Type

IPS Panel

LCD Panel resolution




Operation System

Rooted , Android 10 0 RockChip RK3399 , Dual-core ARM Cortex-A72 MPCore processor and Quad-core ARM Cortex-A53 MPCore processor , Mali T860 MP4 GPU

Interface - Connection portals

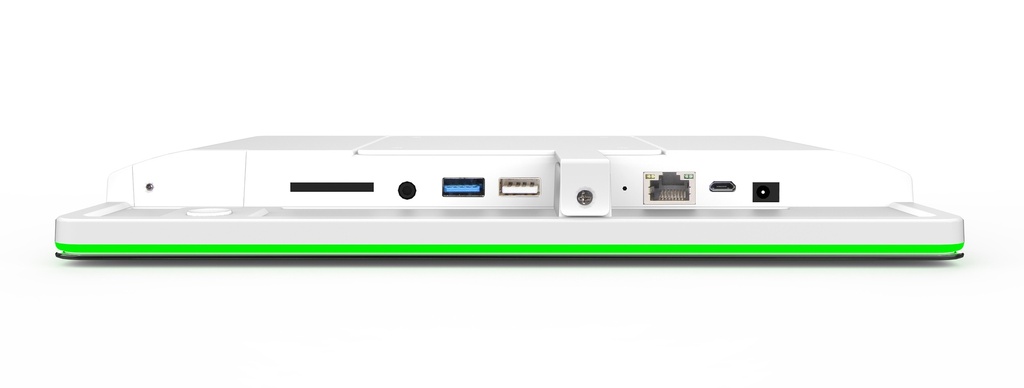

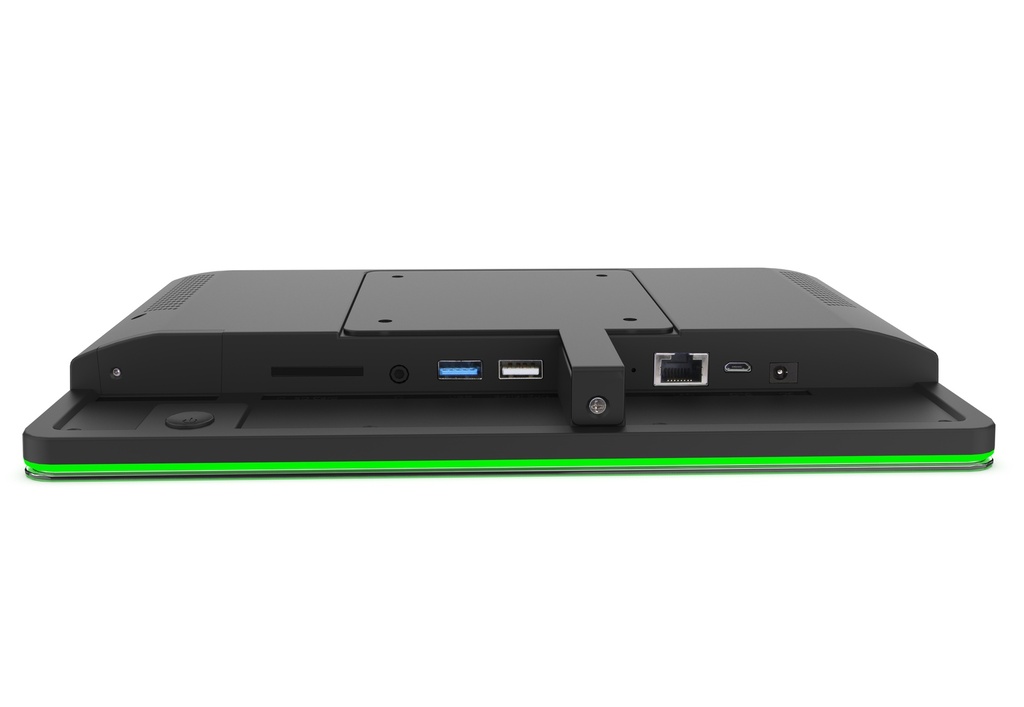

PoE (power over ethernet) , SD Cardreader , USB Portal , LAN input for Internetconnection - RJ45 , Micro USB Portal , 3.5mm Jack , Power Input DC 12V/1.5A , RFID SENSOR , NFC SENSOR

Resolution Internal VideoPlayer


Housing type

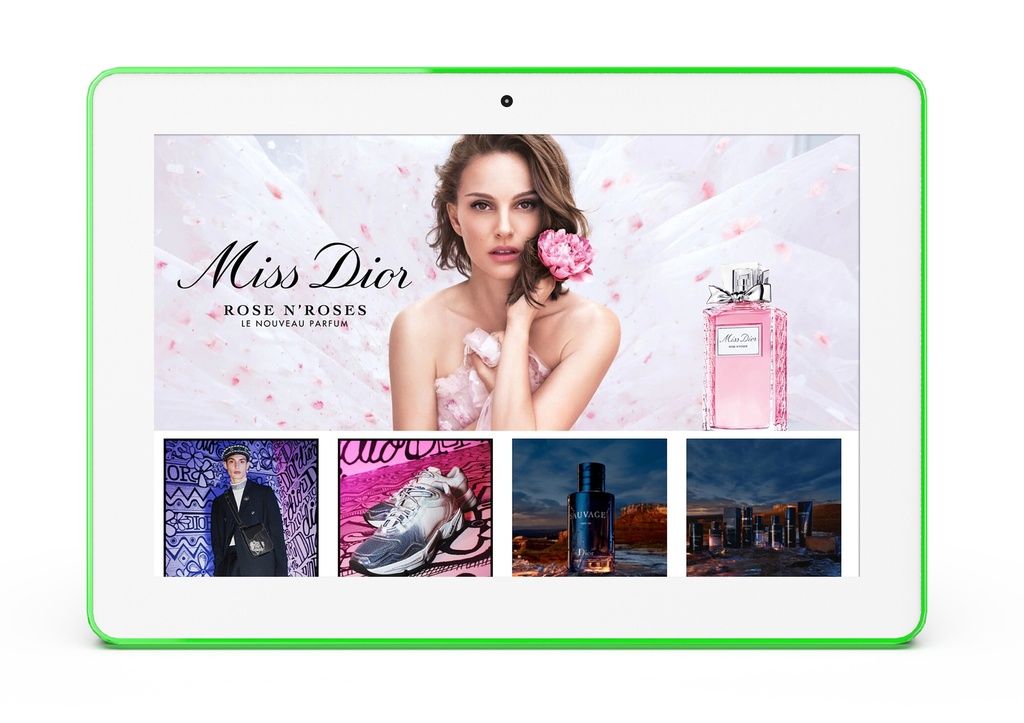

White Housing , Full Color LED Light Edge for f.i. RoomBooking applications



Network options

Wifi , LAN/WLAN , Bluetooth 4.0


Internal Speakers: 2x 1.5W/8Ohm

Mounting options

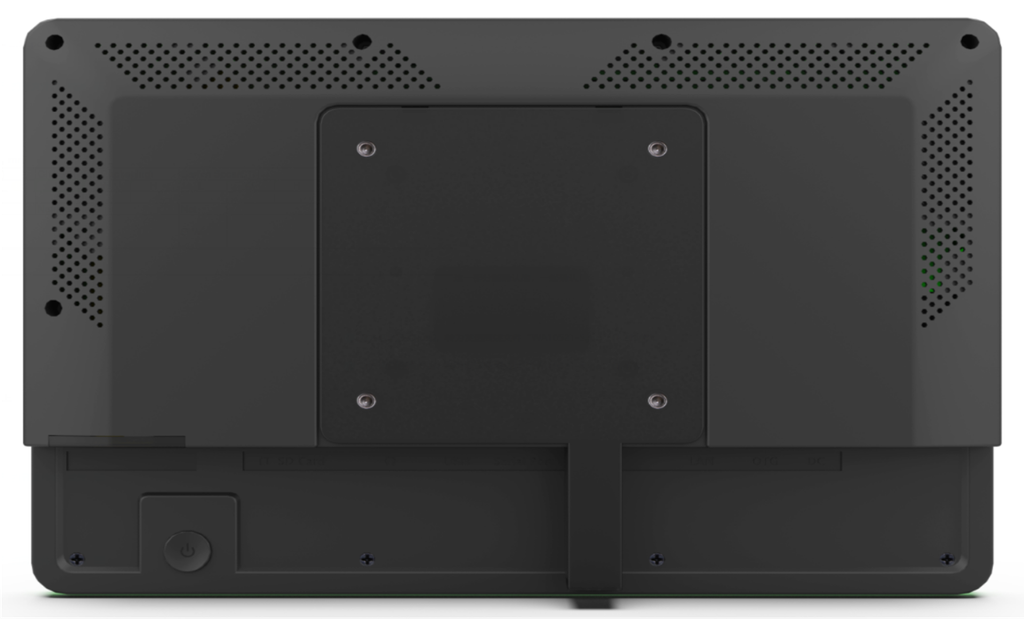

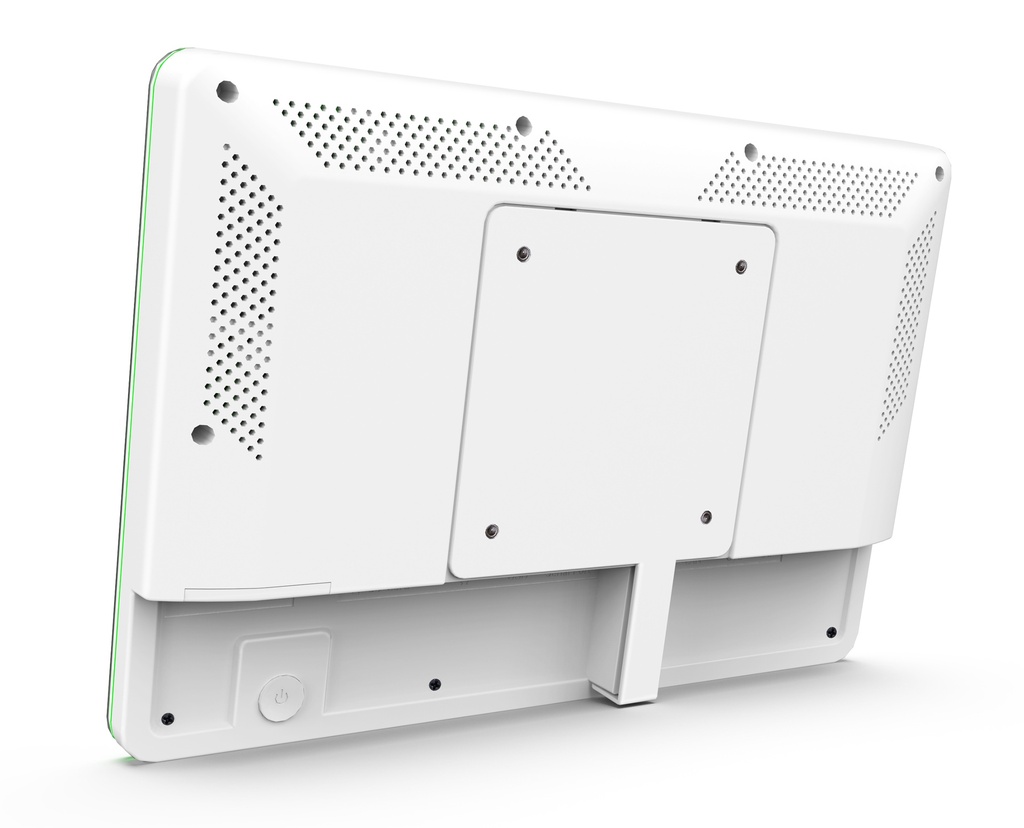

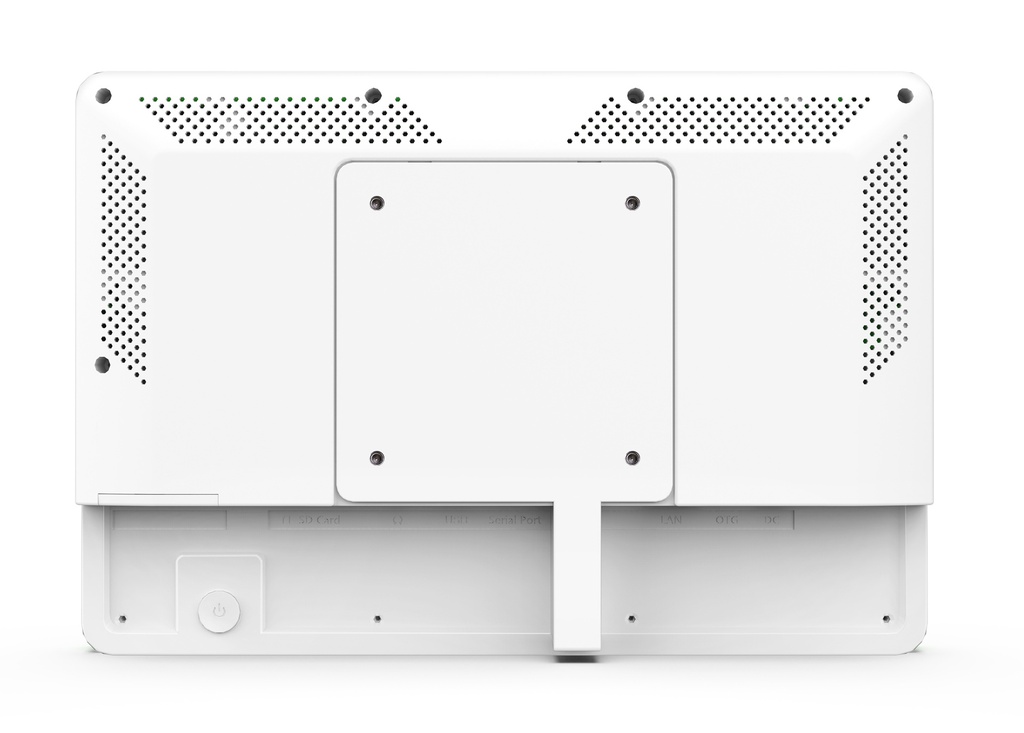

VESA 75x75mm - screwholes 4M


RAM 2GB - Internal Memory: 16GB


2.0MP front camera


AC/DC 12V/1.5A
