10.1inch Android MeetingRoom Display - TouchScreen - Black / Black
Product Code: EL-1012AIO-T-LEDBAR-BB-OS5.1-RK3288

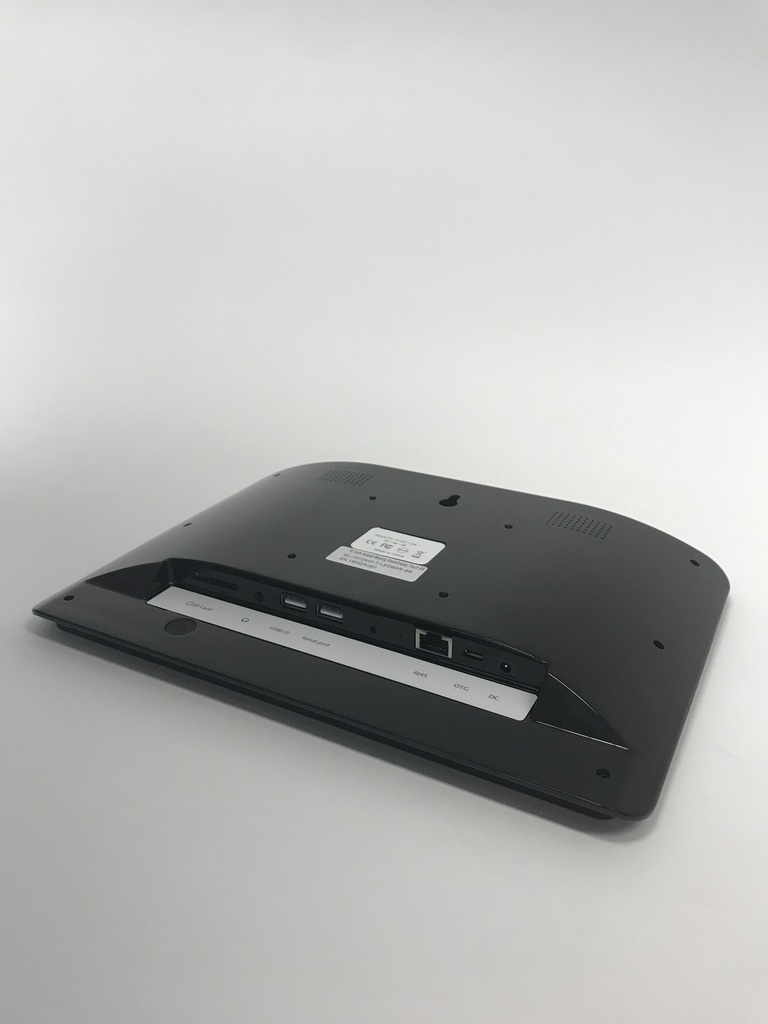

Screen size: 10.1inch, Screen type: Touchscreen - Capacitive, Operation System: Android 5.1 - Rockchip RK3288, Quad Core Cortex A17, 1.8G, Rooted, Interface - Connection portals: PoE (power over ethernet), SD Cardreader, USB Portal, LAN input for Internetconnection - RJ45, Micro USB Portal, 3.5mm Jack, Power Input DC 12V/1.5A, LCD Panel Type: IPS Panel, LCD Panel resolution: 1280*800, Memory: RAM 2GB - Internal Memory: 8GB, Resolution Internal VideoPlayer: 1080P, Ratio: 16:10, Network options: Wifi, LAN/WLAN, Bluetooth 4.0, Housing type: Black - Black, Speakers: Internal Speakers: 2x 1.5W/8Ohm, PowerAdapter: AC/DC 12V/1.5A, Usage: 24/7, Camera: 2.0MP front camera, Mounting options: VESA 75x75mm - screwholes 4M
Including:
EU Power Adapter
Installation of your software:
Install your own software (or from your client) by USB Stick. Most public software APK files you can download from websites like www.apkmirror.com.
Note: this is a rooted industrial Android screen, which means the Google Playstore is mostly not working in many regions. Please install an other Store if needed.
10.1inch Android Meeting Room Display - Touch
Black - Black Housing
Introduction RoomBooking Display video
E-Door / RoomBooking Displays
Watch this video for an impression for these displays on the ISE Amsterdam.
Room Booking Display
Android (touch) displays which can be used as Room Booking displays. Or can also be used as normal (touch displays)
NOTE:
Google
Play store is not always working in some regions, but do not be afraid:
most of the times you do not need this store.
You just can install your own/clients (signage) APK by USB Stick or
download it from a website and install it.
Quiet often, you can download APK files from www.apkmirror.com or
www.apkpure.com or ask your client for the APK needed to install.
The
benefit of not using the Google Playstore: you are not being watched by
Google and Google will not get your userdata which you do not want to
share with them anyway.
PS: if you really need Google Playstore, we can check if it is possible, but only for larger order quantites.
List of Features
easy setup and plug and play!
Rooted Android 5.1 / Chip RK3288 / RAM 2GB-IM 16GB / CPU Quad core cortex A17, 1.8G
Capacitive TouchScreen (10 points, optional NON-touchscreen

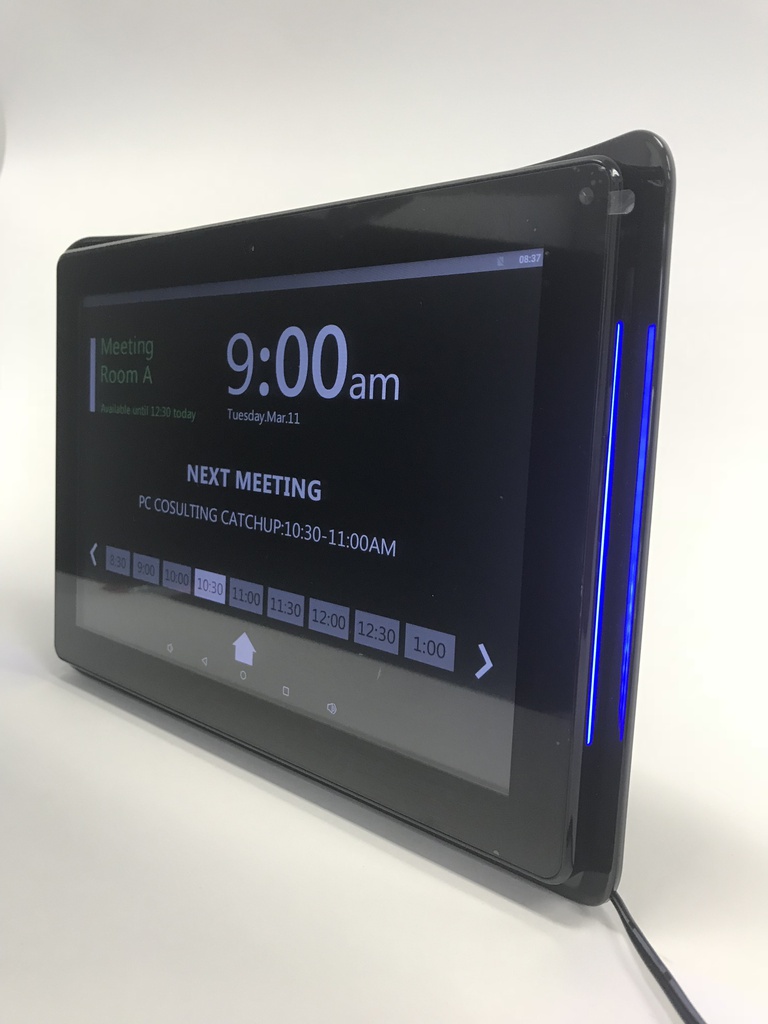

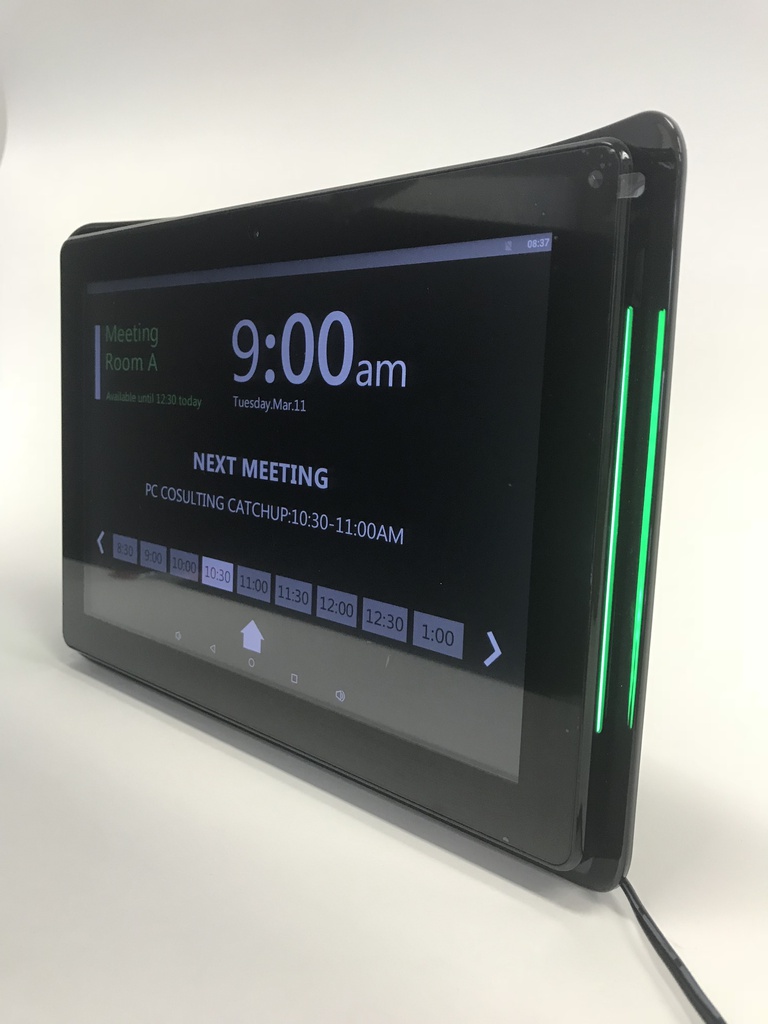

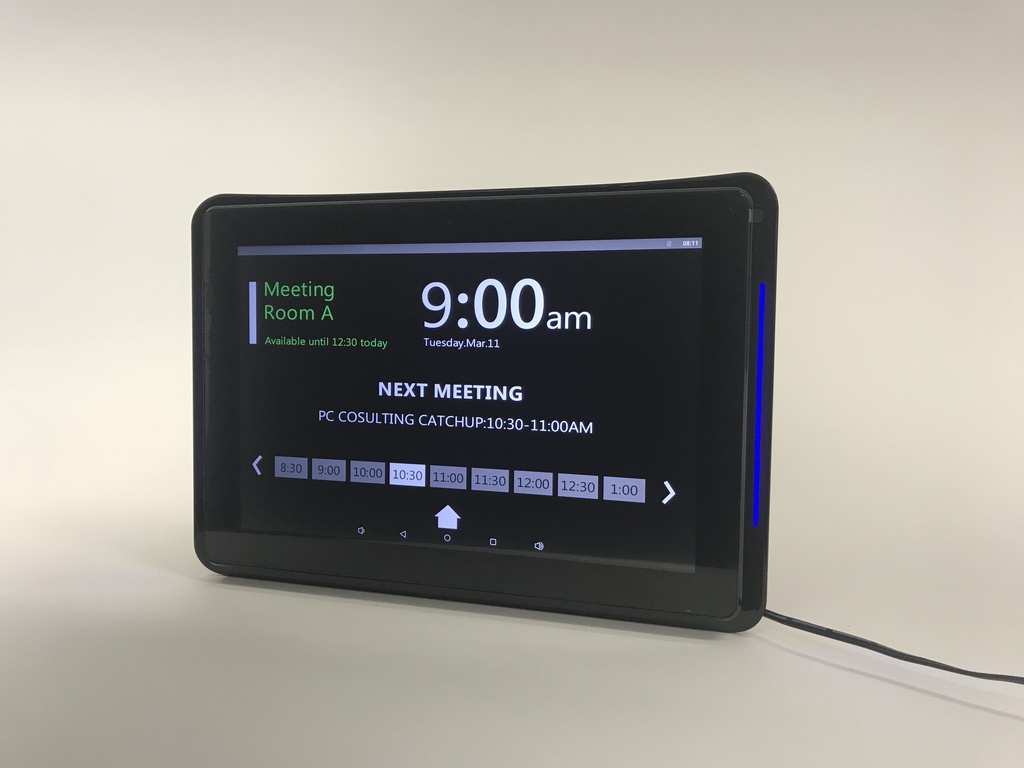

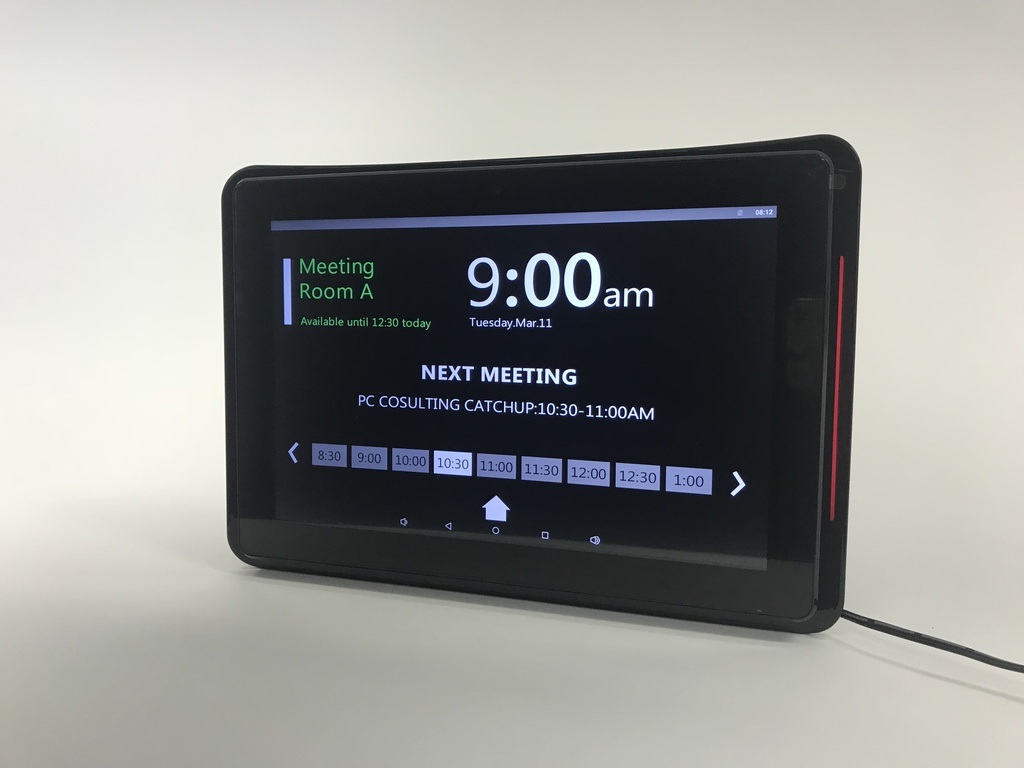

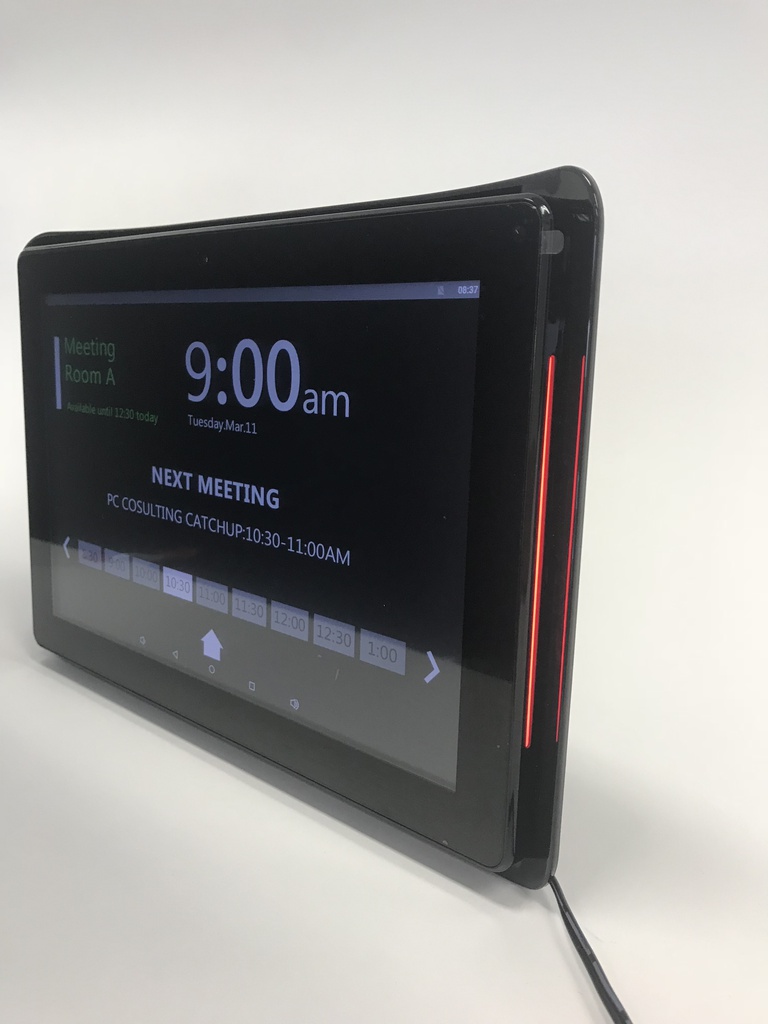

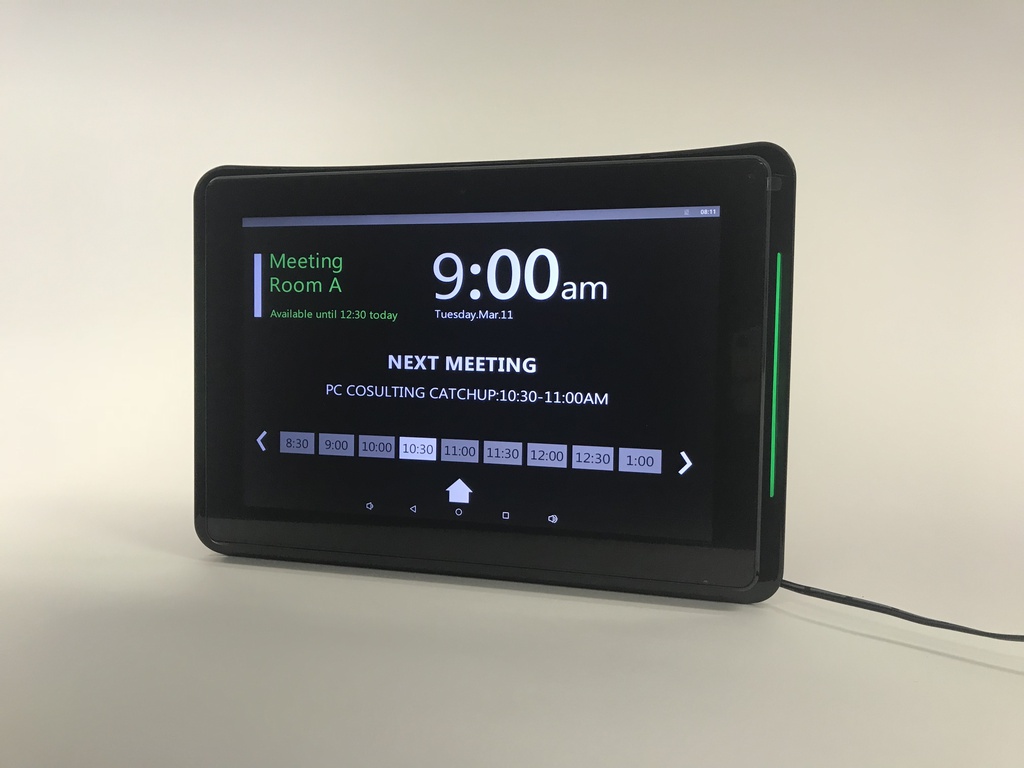

LED Bars at the side of the screen, indicates the status of the Meeting Room occupation
Colors can change in Red / Blue / Green
10.1" IPS LCD panel 1280x800 pixels (16:9 ratio)
Internal HD videoplayer 1080P
WIFI, Blutooth, optional LAN and 3G
SD cardreader, USB portal and Micro USB portal
Internal Speakers
3.5mm Jack Output
Thin Closed Frame Plastic Housing
Color housing Black - Black
12V Power adapter with 2.5 meter long cable
24/7 usage
Timer Clock Function (optional app)
Purposes
can be used in many places
Meeting room Screen for Reservation Occupation status + Digital Signage features (logo's / video's on screen), indicated on screen and LED Bar coloring.
Book reservation online via Google Calender and Outlook System
We can provide online CMS system to create your layouts with logo's pictures and video's for attraction and advertising.
USAGE:
This Android Display can be used in a commercial environment. The Display has Rooted Android 5.1 operating system.
Powering the screen is possible by LAN cable (PoE) and normal Power Adapter.
OPTIONAL:

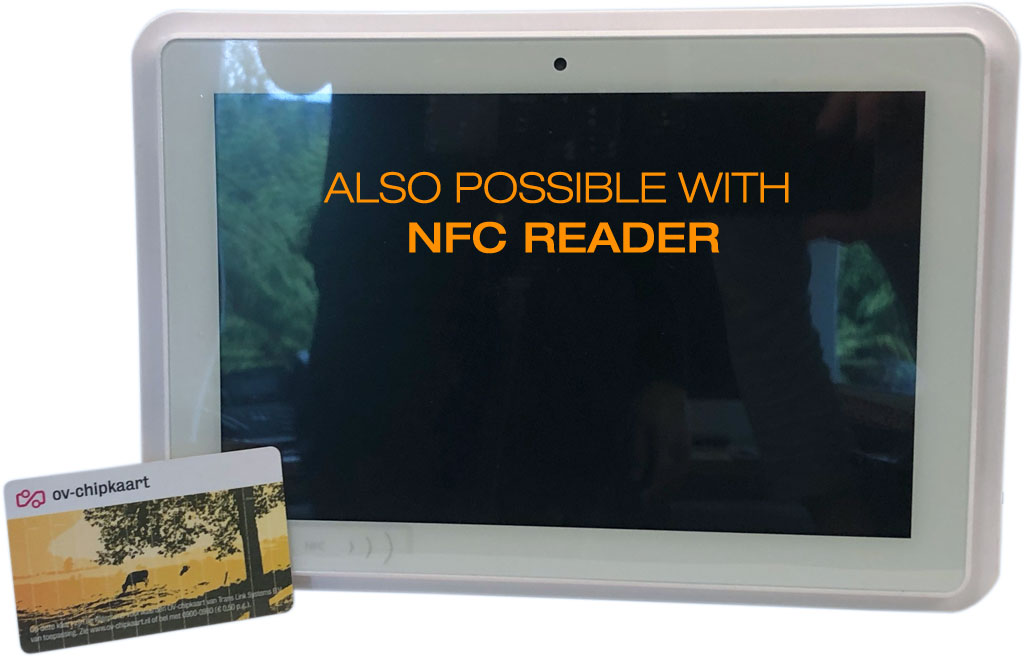

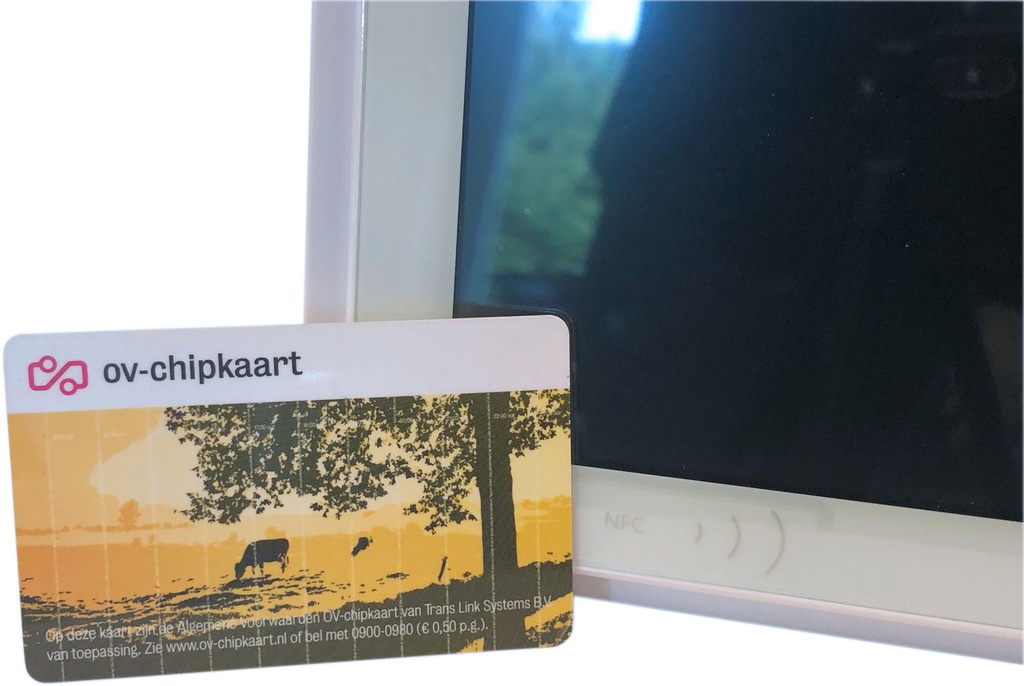

- NFC Reader to scan NFC tags
- If detection movement, it will tun on
- Color Black Front - White Back
SOFTWARE:
Additionally, we can provide you Room Booking Software with online CMS system (standard not included) or we can install your software on the devices for larger order quantities. The Internal Memory can be upgraded.
Similar sizes available: 10.1 / 13.3 / 15.5inch
| Operation System | Android 5.1 - Rockchip RK3288 or Quad Core Cortex A17, 1.8G or Rooted |

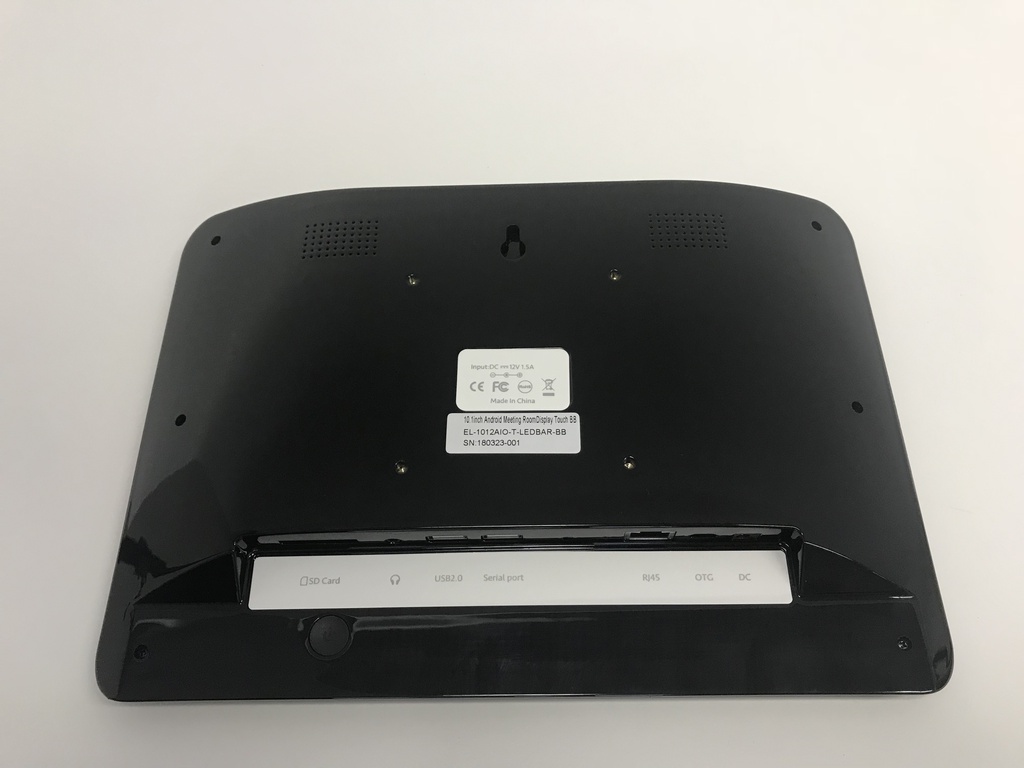

| Interface - Connection portals | PoE (power over ethernet) or SD Cardreader or USB Portal or LAN input for Internetconnection - RJ45 or Micro USB Portal or 3.5mm Jack or Power Input DC 12V/1.5A |
| Network options | Wifi or LAN/WLAN or Bluetooth 4.0 |
| Screen size | 10.1inch |
| Screen type | Touchscreen - Capacitive |
| LCD Panel Type | IPS Panel |
| LCD Panel resolution | 1280*800 |
| Ratio | 16:10 |
| Resolution Internal VideoPlayer | 1080P |
| Housing type | Black - Black |
| Usage | 24/7 |
| Speakers | Internal Speakers: 2x 1.5W/8Ohm |

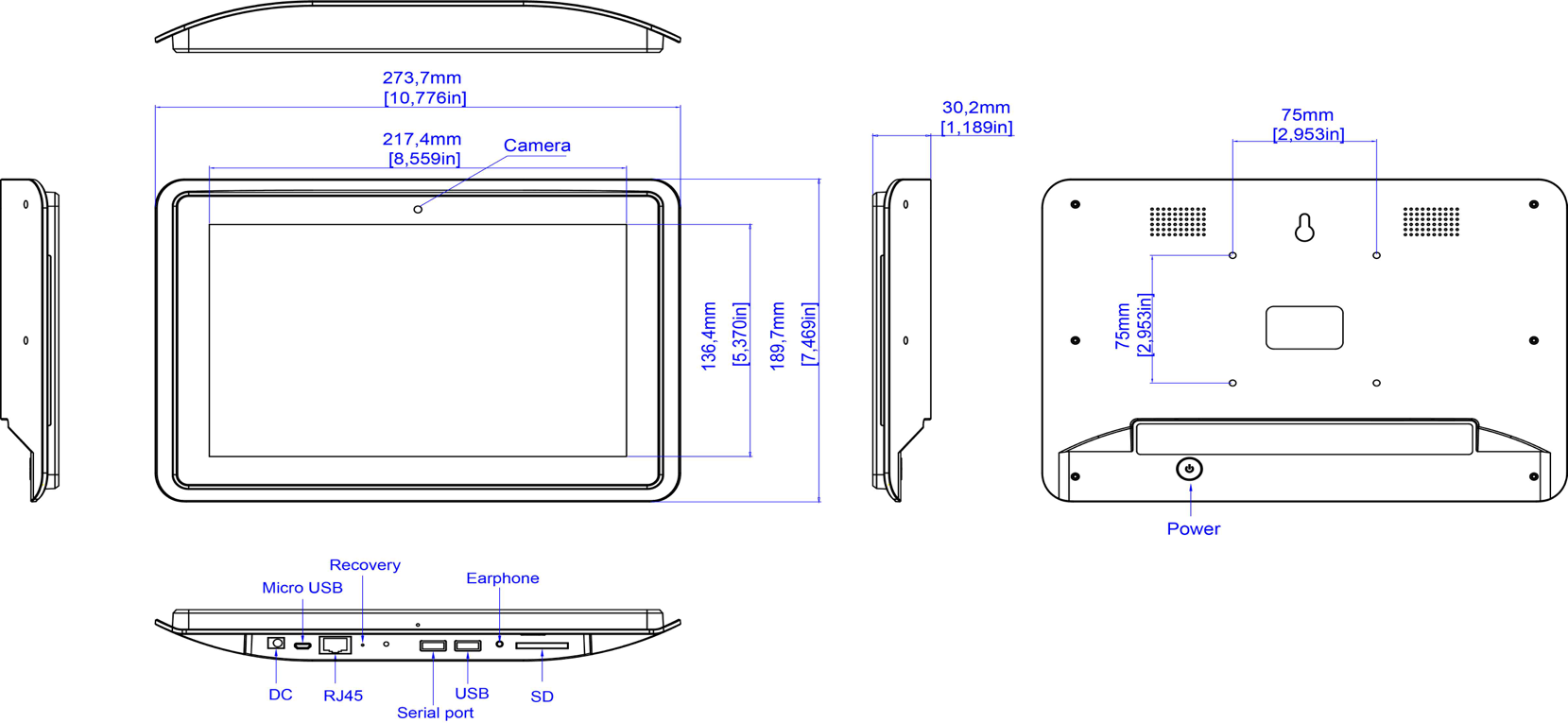

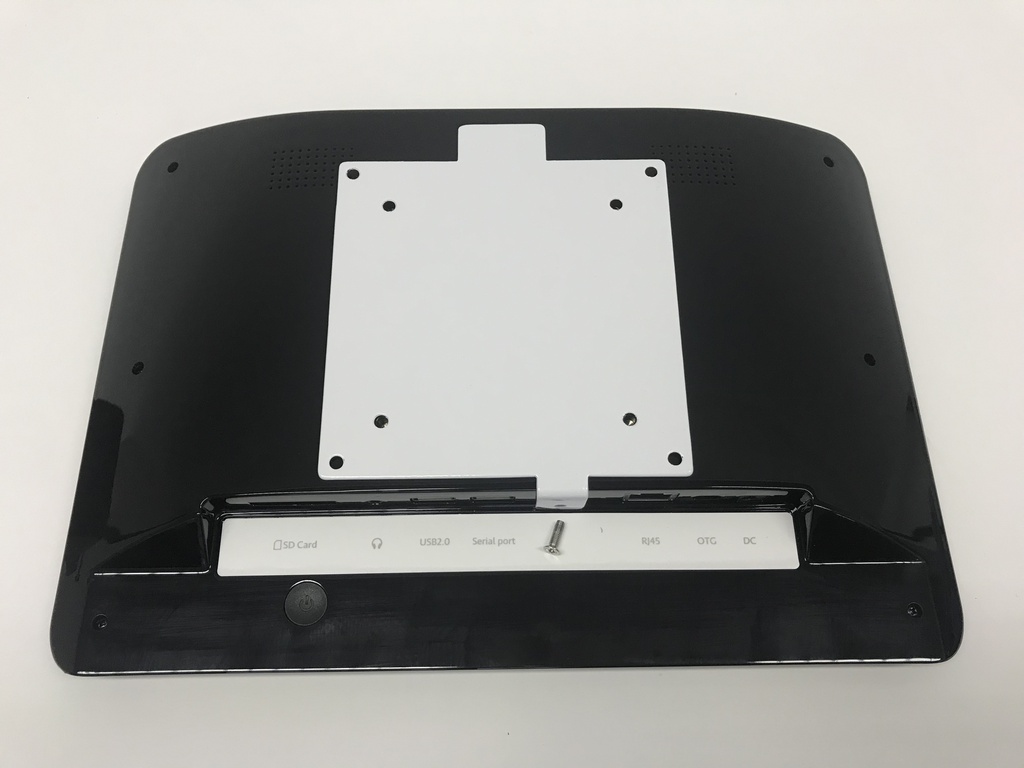

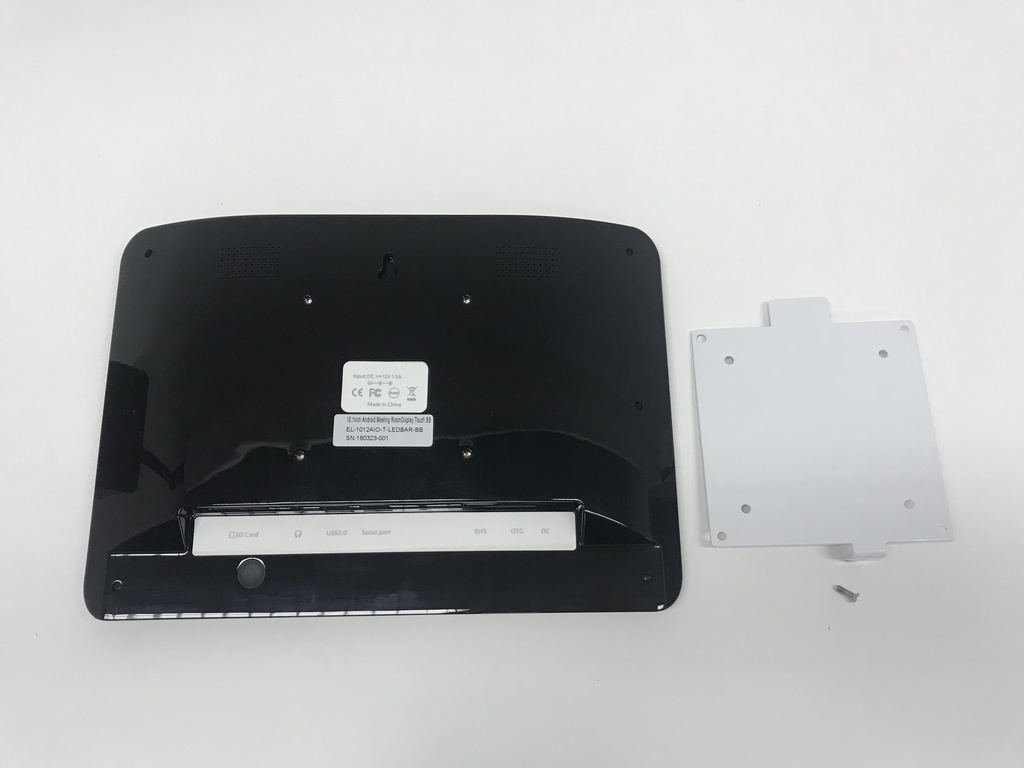

| Mounting options | VESA 75x75mm - screwholes 4M |
| Memory | RAM 2GB - Internal Memory: 8GB |
| Camera | 2.0MP front camera |
| PowerAdapter | AC/DC 12V/1.5A |
