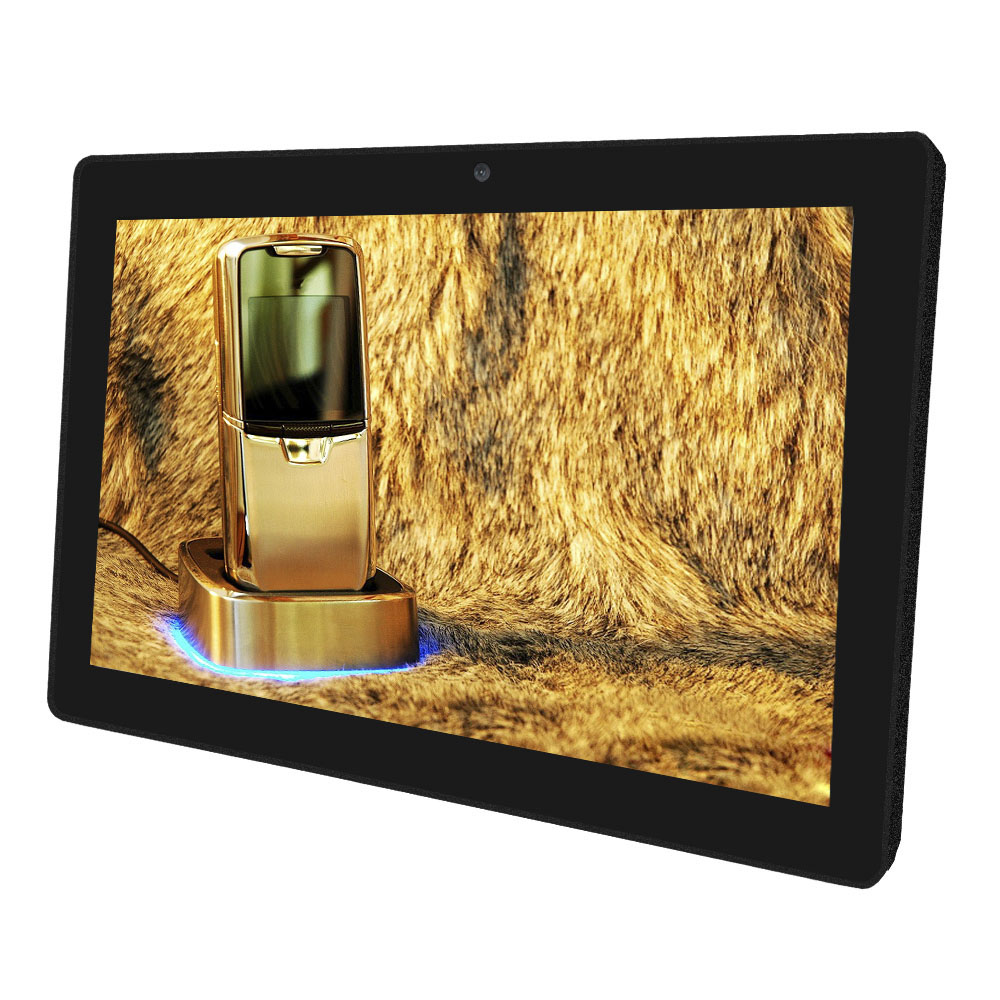

15.6inch Android Display - Touch - Closed Frame
Product Code: AC-1562AIO-T
Screen size: 15.6inch, Screen type: Touchscreen - Capacitive, LCD Panel Type: IPS Panel, LCD Panel resolution: 1920*1080, Operation System: Android 5.1 - Rockchip RK3288, Cortex A17, GPU Mali-T764 - 2.2Ghz, Rooted, Network options: Wifi, LAN/WLAN, Bluetooth 4.0, Interface - Connection portals: SD Cardreader, USB Portal, 3.5mm Jack, Power Input DC 12V/1.5A, Start-Up: AutoStart by plug-in the power-adapter, Memory: RAM 2GB - Internal Memory: 8GB, Speakers: Internal Speakers: 2x 2W-8Ohm, Camera: 2.0MP front camera, Housing type: Closed Plastic Frame, Usage: 14/7
Including:
EU Power Adapter
Installation of your software:
Install your own software (or from your client) by USB Stick. Most public software APK files you can download from websites like www.apkmirror.com.
Note: this is a rooted industrial Android screen, which means the Google Playstore is mostly not working in many regions. Please install an other Store if needed.
Android Display
Our Android Displays are commercial models, specially designed and to use in a retail environment, online digital signage screens, info touch kiosk, etcetera.
The Android has a standard some programm apps installed, like a browser, google play store, explorer, and some extra apps.
You can install your own application on it. For instance a digital signage app or kiosk web app, webstore, etcetera.
We can also provide and help you with some retail app solutions, to help you to start your project. Find more about these apps at the software section.
These Android Displays have the following features:
- - Touchscreen & Non-Touchscreen
- - ROOTED ANDROID 5.1 software version
- - WIFI network
- - LAN (RJ45) input socket for a cable network connection (optional)
- - 3G-4G connection
- This desk-model shape is available in: 10.1 / 11.6 / 13.3 / 15.6 / 21.5 / 24 / 27 / 32inch
How does it work?
Watch this video to have an more detailed explanation how these Android screens work.
List of Features
easy setup and plug and play!
Rooted Android 5.1 / Chip RK3288 / RAM 2GB-IM 8GB / CPU Quad core cortex A17
Capacitive Touch (10-points)
15.6" IPS LCD panel 1920x1080 pixels (16:9 ratio)
Internal HD videoplayer 1080P
WIFI, Bluetooth and LAN
SD cardreader and USB portal
Internal Speakers
3.5mm Jack Output
Thin Closed Frame Plastic Housing
Color housing standard Black
12V Power adapter with 2.5 meter long cable
14/7: Usage up to 14 hours a day
Timer Clock Function (optional app)
Purposes
can be used in many places
Digital Signage Display
Built-in ShopDisplays
Advertisement Display
Shelf-edge Display
CounterDisplay
USAGE:
Plug in the power adapter, and immediately the Android display will turn on (no need to push a ON-OFF button).
You can hide the top and bottom bar in the Settings menu.
Install your software easily and lets play!
OPTIONAL:
- with or without internal battery
- LAN converter box, to connect to the portal at the backside.
MORE SPECS:
see SPECIFICATIONS TAB or download the specification sheet in the DOWNLOAD TAB, above.
| Operation System | Android 5.1 - Rockchip RK3288 or Cortex A17, GPU Mali-T764 - 2.2Ghz or Rooted |
| Interface - Connection portals | SD Cardreader or USB Portal or 3.5mm Jack or Power Input DC 12V/1.5A |
| Network options | Wifi or LAN/WLAN or Bluetooth 4.0 |
| Screen size | 15.6inch |
| Screen type | Touchscreen - Capacitive |
| LCD Panel Type | IPS Panel |
| LCD Panel resolution | 1920*1080 |
| Housing type | Closed Plastic Frame |
| Start-Up | AutoStart by plug-in the power-adapter |
| Usage | 14/7 |
| Speakers | Internal Speakers: 2x 2W-8Ohm |
| Memory | RAM 2GB - Internal Memory: 8GB |
| Camera | 2.0MP front camera |
