Software license cost (one-time fee) per device.

Screen size: 8inch, Screen type: Touchscreen - Capacitive, LCD Panel Type: IPS Panel, LCD Panel resolution: 1920*1200, Ratio: 16:10, Interface - Connection portals: HDMI IN, Interface - Connection portals: USB Portal, Interface - Connection portals: Power Input DC 12V/1.5A, Housing type: Open Metal Frame, Start-Up: AutoStart by plug-in the power-adapter

Optional:
- Speakers: Internal Speakers: 2x 2W-8Ohm
- Audio Jack 3.5 portal

Including:
EU Power Adapter
HDMI IN
USB with cable - 1.8 meter
Remote Control

Sticker, Export Carton and GiftBox - GIFTBOX: WHITE BOXES
10,1inch Touch Monitor - AC-080OMF-HDMI-IPS-T-500nit-1920x1200
SN Number:

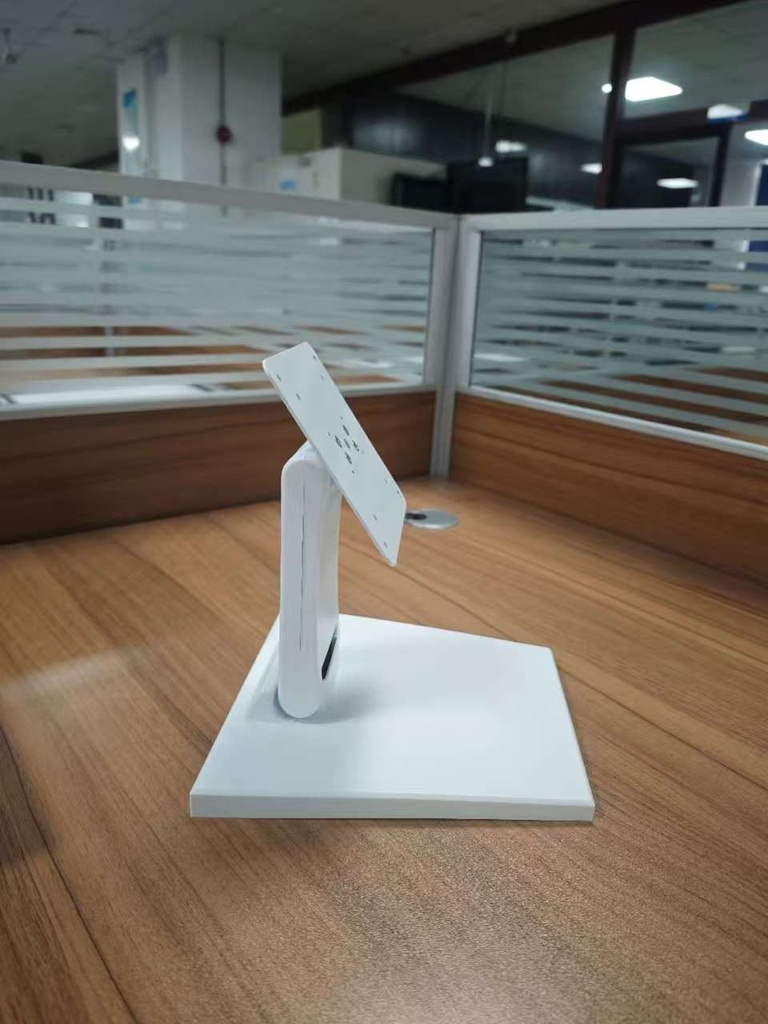

Very stable deskmount, with adjustable bracket: tilt screen forward or backward.

The bracket can be fixed to screen by VESA with Screws
The bottom of the bracket can be fixed by screws to a desk or table.
On the bottom the bracket there will be rubber dots to avoid sliding on the desk or table.

Available in black or white color.

Material of the bracket: metal

Screen size: 43inch, LCD Panel resolution: 1920*1080, ViewAngles: 89/89/89/89, Brightness: 1000nit, Housing type: Black Metal Housing, Interface - Connection portals: HDMI IN / DVI / VGA / USB Portal, Touchscreen type: Optional: touchscreen, PowerAdapter: DC12V

Audio Output: 2xUSB-C + 2x3.5jack
Playable AudioFormats: WAV / MP3
Audio Format : 16bit_48Khz
Interface Connection portals:
SD Cardreader, 1x USB Portal to play AudioContent
4x 12V Out for Ledstrip,
6x Pushbutton for Select Channel,
2x Pushbutton for Volume Up/Down,
12V OUT portal, 12V IN portal

PowerAdapter: 1x 12V EU power adapter

[EL-2138AIO-T-OS11-RK3568] 21.5inch Android Display - Touchscreen

Screen size: 21.5inch, Screen type: Touchscreen - Capacitive, LCD Panel Type: LCD, LCD Panel resolution: 1920*1080, Ratio: 16:9

Operation System: Android 11 - RockChip RK3568, Rooted, Quad Core A55,
Interface - Connection portals: LAN, HDMI IN, HDMI OUT, SD Cardreader, USB Portal, Mini USB Portal, 3.5mm Jack, Power Input DC 12V/3A,
Network options: Wifi, LAN/WLAN, Mobile Network (3G-4G) - Optional by USB SIM Dongle, Bluetooth

Resolution Internal VideoPlayer: 1920*1080, Housing type: Closed Plastic Frame, Start-Up: AutoStart by plug-in the power-adapter, Usage: 24/7, , Speakers: 2x 3W, Mounting options: VESA 100x100mm - screwholes 4mm, Memory: RAM 4GB - Internal Memory: 32GB, NO CAMERA, PowerAdapter: AC/DC 12V/3A

Including:
- EU Power Adapter
- Date & Time: European Time Amsterdam
- 4GB RAM - 32GB ROM

Sticker, Export Carton and GiftBox - GIFTBOX: WHITE BOXES
21,5inch Android Tablet Display Touch - EL-2138AIO-T-OS11-RK3568-NO-CAM

SN Number:

Screen size: 10.1inch, Screen type: Touchscreen - Capacitive, LCD Panel Type: IPS Panel, LCD Panel resolution: 1280*800, Ratio: 16:10, Operation System: Rooted, Operation System: Quad Core A55, Operation System: RK3568, Interface - Connection portals: SD Cardreader, Interface - Connection portals: USB Portal, Interface - Connection portals: LAN input for Internetconnection - RJ45, Interface - Connection portals: Micro USB Portal, Interface - Connection portals: 3.5mm Jack, Interface - Connection portals: Power Input DC 12V/1.5A, Resolution Internal VideoPlayer: 1080P, Housing type: Black - Black, Usage: 24/7, Network options: Wifi, Network options: LAN/WLAN, Network options: Bluetooth 4.0, Speakers: 2x3W, Mounting options: VESA 75x75mm - screwholes 4M, Memory: RAM 2GB -Internal Memory 16GB, Camera: 2.0MP front camera, PowerAdapter: AC/DC 12V/1.5A

4K Resolution Mediaplayer for Videowall - 4x HDMI OUT.
Internal Android OS system, with Retail software app.
Internal Memory 2GB-16GB

8x input for Pushbuttons for example:
- 6x input button for Selecting Video (JST connection) - Function can be adjusted according to needs.
-2x input button for Volume up and down (JST connection)
4x HDMI OUT
2x USB (files and auto update function)
1s USB Mini (upgrade the internal OS system)
1x 12V IN

Including 12V-1.5A EU power adapter (AC-DC).

Audio portals: 4x Audio Jack 3.5mm, Audio portals: 4x USB-C with Audio and 5V power output, Pushbutton Portals: 4x inputs for external Pushbuttons or other trigger to play your audio tracks, Pushbutton Portals: 2x inputs for exteral Pushbutton to change volume up and down, LED light output: 4x Led output for led strips, PowerAdapter: 12V input, Media Input: SD Card or USB Stick, UpdatePortal: USB portal, Optional: 12V out portal for extra power board 12V

Including EU power adapter 12V-3.5A

Screen size: 10.1inch, Screen type: Touchscreen - Capacitive, LCD Panel Type: IPS Panel, LCD Panel resolution: 1280*800, Operation System: Rooted, Operation System: Octacore: Quad core cortex A53+Quad core cortex A72, Operation System: Android OS14, Operation System: Rockchip RK35768S, Interface - Connection portals: HDMI OUT, Interface - Connection portals: SD Cardreader, Interface - Connection portals: USB Portal, Interface - Connection portals: Power Input DC 12V/2A, Interface - Connection portals: LAN input for Internetconnection - RJ45, Interface - Connection portals: Micro USB Portal, Interface - Connection portals: 3.5mm Jack, Resolution Internal VideoPlayer: 1080P, Start-Up: AutoStart by plug-in the power-adapter, Network options: Wifi, Network options: LAN network, Network options: Bluetooth 4.0, Network options: Optional: SimCard Slot, Speakers: 2*1.5W, Mounting options: VESA 75x75mm - screwholes 4M, Mounting options: Including VESA Bracket Holder "Flat on Wall", Memory: RAM 4GB, ROM 32GB, Memory: Optional extra memory, f.i. RAM8GB, ROM128GB, Camera: 5.0MP front camera, Optional Features: NFC reader, Optional Features: PoE function, Optional Features: Sim Slot: Optional 4G module, Optional Features: RFID Reader

Including:
- EU Power Adapter
- Date & Time: European Time Amsterdam
- Exchange Account

Specifications: Screen size: 8inch, Screen type: Touchscreen - Capacitive, LCD Panel Type: IPS Panel, LCD Panel resolution: 1280*800, Ratio: 16:10, , Operation System: Rooted, Android 7.1/8.0, USB Portal, LAN input for Internetconnection - RJ45, Power Input DC 12V/1.5A, Resolution Internal VideoPlayer: 1920*1080, Housing type: Metal Housing, Network options: Wi-Fi, LAN/WLAN, Bluetooth, Memory: RAM 2GB - Internal Memory: 16GB. External WIFI Antenna.

Including: EU PowerAdapter
Including: external WIFI Antenna.
Metal Housing: - Customized metal housing according 3D drawing file:
AC-08028AIO-T-16+1508-12+TP 8inch Android Metal Housing Secrid 20251203-3D-V3.stp
Including Metal housing spray-painted in RAL7030 silver-grey.
Extra: this model can autocopy video to internal memory from USB Stick

Screen size: 14inch, Screen type: Touchscreen - Capacitive, LCD Panel Type: LCD, LCD Panel resolution: 1920*1080, Ratio: 16:9, Optional Features: Software Systems for Digital Signage & Kiosks, Optional Features: 3G Network via USB-SimCard Dongle, Operation System: Rooted, Operation System: CPU Quad Core Coretex A55, Operation System: RK3576S, Interface - Connection portals: HDMI OUT, Interface - Connection portals: SD Cardreader, Interface - Connection portals: USB Portal, Interface - Connection portals: Mini USB Portal, Interface - Connection portals: 3.5mm Jack, Interface - Connection portals: Power Input DC 12V/1.5A, Resolution Internal VideoPlayer: 1920*1080, Housing type: Closed Plastic Frame, Start-Up: AutoStart by plug-in the power-adapter, Usage: 24/7, Network options: Wifi, Network options: LAN/WLAN, Network options: Bluetooth 4.0, Network options: Mobile Network (3G-4G) - Optional by USB SIM Dongle, Speakers: 2*2W, Mounting options: VESA 100x100mm - screwholes 4mm, Memory: RAM 2GB - Internal Memory: 16GB, Camera: 2.0MP front camera, PowerAdapter: AC/DC 12V/1.5A

Screen size: 14inch, Screen type: Touchscreen - Capacitive, LCD Panel Type: LCD, LCD Panel resolution: 1920*1080, Ratio: 16:9, Optional Features: Software Systems for Digital Signage & Kiosks, Operation System: Rooted, Operation System: RK3576S, Interface - Connection portals: HDMI OUT, Interface - Connection portals: SD Cardreader, Interface - Connection portals: USB Portal, Interface - Connection portals: Mini USB Portal, Interface - Connection portals: 3.5mm Jack, Interface - Connection portals: Power Input DC 12V/1.5A, Resolution Internal VideoPlayer: 1920*1080, Housing type: Closed Plastic Frame, Start-Up: AutoStart by plug-in the power-adapter, Usage: 24/7, Network options: Wifi, Network options: LAN/WLAN, Network options: Bluetooth 5.3, Mounting options: VESA 100x100mm - screwholes 4mm, Memory: 4GB-64GB, PowerAdapter: AC/DC 12V/1.5A

Screen size: 18.5inch, Screen type: LCD screen only - no touch, LCD Panel Type: LCD Panel, LCD Panel resolution: 1920*1080, Ratio: 16:9, Interface - Connection portals: HDMI IN, SD Cardreader, USB Portal, 3.5mm Jack, Power Input DC 12V/1.5A, Housing type: Open Metal Frame, No mounting strips model, Usage: 14/7, Speakers: Internal Speakers: 2x 2W-8Ohm, Additional Features: Internal Mediaplayer 1080P - loop video.

EU or UK power adapter?
Remote control
Autostart internal mediaplayer or HDMI IN?

Screen size: 27inch, Screen type: Touchscreen - Capacitive, LCD Panel Type: LCD, LCD Panel resolution: 1920*1080, Ratio: 16:9, Optional Features: Software Systems for Digital Signage & Kiosks, Optional Features: 3G Network via USB-SimCard Dongle, Operation System: Rooted, Operation System: OS14 -RK3576, Interface - Connection portals: LAN, Interface - Connection portals: HDMI OUT, Interface - Connection portals: SD Cardreader, Interface - Connection portals: USB Portal, Interface - Connection portals: Mini USB Portal, Interface - Connection portals: 3.5mm Jack, Interface - Connection portals: Power Input DC 12V/4A, Resolution Internal VideoPlayer: 1920*1080, Housing type: Closed Plastic Frame, Start-Up: AutoStart by plug-in the power-adapter, Usage: 24/7, Network options: Wifi, Network options: LAN/WLAN, Network options: Mobile Network (3G-4G) - Optional by USB SIM Dongle, Network options: Bluetooth, Speakers: 2x 3W, Mounting options: VESA 100x100mm - screwholes 4mm, Memory: 4GB - 32GB, Camera: 5.0MP front camera, PowerAdapter: AC/DC 12V/4A

Create your Kiosk by adding extra add-ons at ease, or choose for one of our standard solutions.

These Android Touch Screens have at each 4 sides a USB-C connections, to add for instance:

QR code Scanner
Printer
Card Swiper
ATM cashing machine
NFC reader
Camera
etcetera.

Designed for restaurants, retail, shopping malls or any environment, to streamline operations, boost efficiency and enhance customer experience.

Download below the productsheets for all the sizes 15-21-24-27-32inch models.

[EL-1109AIO-T-OS14-RK3576S] 11inch Android Display - RK3576S

Screen size: 11inch, Screen type: Touchscreen - Capacitive, LCD Panel Type: LCD Panel, LCD Panel resolution: 1920*1200, Ratio: 16:10
Optional Features: Software Systems for Digital Signage & Kiosks
Operation System: Rooted, Android OS14, RK3576S Quad core cortex A72+Quad core cortex A53, Memory: 4GB-64GB
Interface - Connection portals: PoE (power over ethernet), TF cardreader, USB Portal, LAN input for Internet connection - RJ45, Micro USB Portal, 3.5mm Jack, Power Input DC 12V/1.5A, USB Type-C
Resolution Internal VideoPlayer: 1920*1080
Network options: Wi-Fi, LAN/WLAN, Mobile Network (3G-4G) - Optional by USB SIM Dongle, Bluetooth 5.4
Speakers: Internal Speakers 4Ohm - 2Wx2
Camera: 5.0MP front camera
Frame Housing type: Closed Plastic Frame

Including:
- EU PowerAdapter (if other type needed, please let us know).
- Flatwall metal bracket (standard included in the packaging)
- Date & Time: European Time Amsterdam (is this correct? this setting only for bulk orders possible)

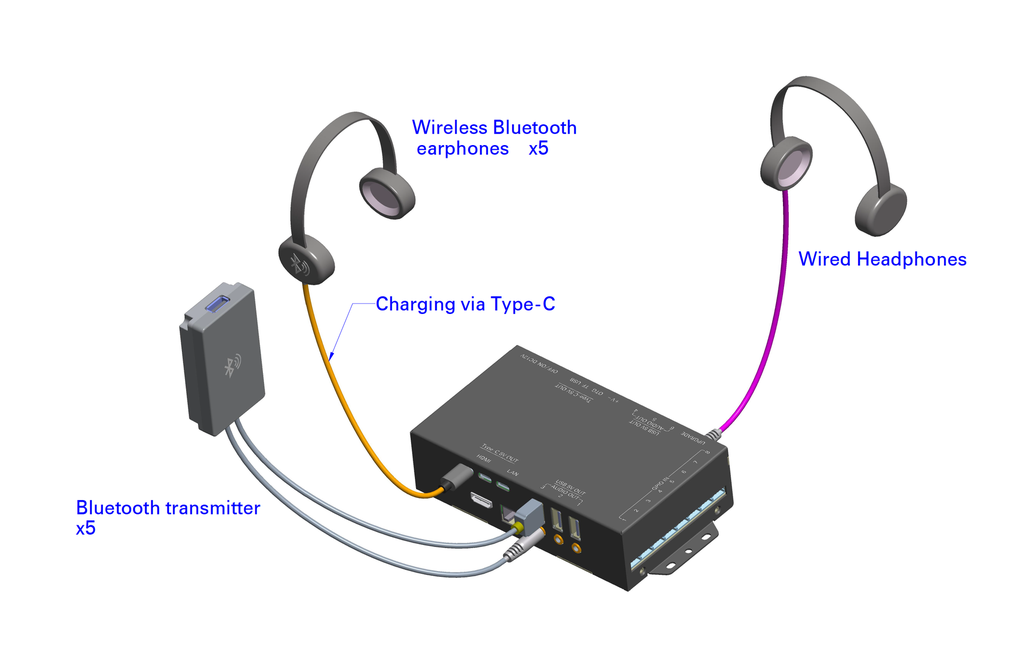

6x Bluetooth Dongles can be connected (our BT dongles)
Headphone, and will have dedicated connection due to this MAC address.
The jack portals on the mediaplayer can also be used for Headphone with wired jack.
There are 6x USB-C portals on the mediaplayer, so you can charge each Headphone by USB-C power cable.
There are 8x Trigger inputs for f.i. Pushbuttons to start audio and video, volume, next, previous track etcetera. Optional: There can be added extra: UART connnector to add a Capacitve Multi touch board.
There is 1x HDMI Out, to connect the mediaplayer to a Monitor LCD Screen and show the attraction video and trigger videos about the headphones.
There is LAN RJ45 for internet connection. Wi-Fi by Antenna is optional.
USB Portal to do auto-update content by USB Stick
TF card for content
USB upgrade portal (only needed to upgrade Android OS version / settings Android).

EU or UK Power adapter (let us know which one you will need).

NOTE: This mediaplayer comes without the BT dongles and Triggers. You can add these seperately.

Screen size: 21.5inch, Screen type: Touchscreen - Capacitive, LCD Panel Type: IPS Panel, LCD Panel resolution: 1920*1080, Ratio: 16:9, Optional Features: Software Systems for Digital Signage & Kiosks, Optional Features: PoE function, Operation System: Rooted, Operation System: CPU Quad Core Cortex A55+A76, Operation System: RK3588 - OS12, Interface - Connection portals: HDMI IN, Interface - Connection portals: USB Portal, Interface - Connection portals: LAN input for Internetconnection - RJ45, Interface - Connection portals: 3.5mm Jack, Interface - Connection portals: Power Input DC 12V/1.5A, Resolution Internal VideoPlayer: 1920*1080, Frame Housing type: Closed Plastic Frame, Start-Up: AutoStart by plug-in the power-adapter, Usage: 24/7, Network options: Wifi, Network options: Mobile Network (3G-4G) - Optional by USB SIM Dongle, Network options: Ethernet: 100Mbps, Network options: Bluetooth, Network options: RJ45, Speakers: 2*3W, Mounting options: VESA 100x100mm - screwholes 4mm, Memory: RAM 4GB +Internal Memory 32GB, Memory: Different Memory options, please contact us, Camera: 5.0MP front camera, PowerAdapter: 12V-3A

Screen size: 21.5inch, Screen type: Touchscreen - Capacitive, LCD Panel Type: IPS Panel, LCD Panel resolution: 1920*1080, Ratio: 16:9, Optional Features: Software Systems for Digital Signage & Kiosks, Optional Features: PoE function, Operation System: Rooted, Operation System: CPU Quad Core Cortex A55+A76, Operation System: RK3588 - OS12, Interface - Connection portals: HDMI IN, Interface - Connection portals: USB Portal, Interface - Connection portals: LAN input for Internetconnection - RJ45, Interface - Connection portals: 3.5mm Jack, Interface - Connection portals: Power Input DC 12V/1.5A, Resolution Internal VideoPlayer: 1920*1080, Frame Housing type: Closed Plastic Frame, Start-Up: AutoStart by plug-in the power-adapter, Usage: 24/7, Network options: Wifi, Network options: Mobile Network (3G-4G) - Optional by USB SIM Dongle, Network options: Ethernet: 100Mbps, Network options: Bluetooth, Network options: RJ45, Speakers: 2*3W, Mounting options: VESA 100x100mm - screwholes 4mm, Memory: RAM 4GB +Internal Memory 32GB, Memory: Different Memory options, please contact us, PowerAdapter: 12V-3A
