[EL-1562AIO-T-OS10-RK3288] 15.6inch Android Display - Touch
Screen size: 15.6inch, Screen type: Non-Touchscreen, LCD Panel Type: IPS Panel, LCD Panel resolution: 1920*1080, Ratio: 16:9, VideoPlayer: 1920*1080,
Operation System: Quad Core Cortex A17, 1.8G,Rooted, Android 10 - RockChip 3288, Memory: RAM 2GB - Internal Memory: 16GB,
Interface - Connection portals: SD/MMC Cardreader, USB Portal, Mini USB Portal, Power Input DC 12/3A, LAN input for Internet connection - RJ45, 3.5mm Jack, Camera: 2.0MP front camera, Resolution Internal
Start-Up: AutoStart by plug-in the power-adapter, Usage: 24/7, Speakers: Internal Speakers: 2x 2W-8Ohm,
Housing type: Closed Plastic Frame,
Mounting options: Backstand, Mounting options: VESA 100x100mm - screwholes 4mm, PowerAdapter: AC/DC 12V/3A

Optional Features: Software Systems for Digital Signage & Kiosks

Including:
EU Power Adapter

Screen size: 21.5inch, Screen type: Touchscreen - Capacitive, LCD Panel Type: LCD, LCD Panel resolution: 1920*1080, Ratio: 16:9, Operation System: Quad Core Cortex A17, 1.8G, Rooted, Android 10 - RockChip 3288, Interface - Connection portals: SD/MMC Cardreader, USB Portal, Mini USB Portal, Power Input DC 12/3A, LAN input for Internetconnection - RJ45, 3.5mm Jack, Resolution Internal VideoPlayer: 1920*1080, Housing type: Closed Plastic Frame, Start-Up: AutoStart by plug-in the power-adapter, Usage: 24/7, Network options: Wi-Fi, LAN/WLAN, Bluetooth 4.0, Mobile Network (3G-4G) - Optional by USB SIM Dongle, Speakers: 2x 5W, Mounting options: VESA 75x75mm - screwholes 4M, Mounting options: Backstand, Memory: RAM 2GB - Internal Memory: 16GB, Camera: 2.0MP front camera, PowerAdapter: AC/DC 12V/3A

Screen size: 32inch, Screen type: Touchscreen - Capacitive, LCD Panel Type: LCD, LCD Panel resolution: 1920*1080, Ratio: 16:9, Optional Features: Software Systems for Digital Signage & Kiosks, Operation System: Quad Core Cortex A17, 1.8G, Operation System: Rooted, Operation System: Android 10 - RockChip 3288, Interface - Connection portals: SD/MMC Cardreader, Interface - Connection portals: USB Portal, Interface - Connection portals: Mini USB Portal, Interface - Connection portals: LAN input for Internetconnection - RJ45, Interface - Connection portals: 3.5mm Jack, Interface - Connection portals: Power Input DC 12V/4A, Resolution Internal VideoPlayer: 1920*1080, Housing type: Closed Plastic Frame, Start-Up: AutoStart by plug-in the power-adapter, Usage: 24/7, Network options: Wi-Fi, Network options: LAN/WLAN, Network options: Bluetooth 4.0, Network options: Mobile Network (3G-4G) - Optional by USB SIM Dongle, Speakers: 2x 3W, Mounting options: Backstand, Mounting options: VESA 100x100mm - screwholes 4mm, Memory: RAM 2GB - Internal Memory: 16GB, Camera: 5.0MP front camera, PowerAdapter: AC/DC 12V/4A

Screen type: Touchscreen - Capacitive, Operation System & CPU: Rooted, Android 11- Rockchip RK3568, Quad Core Cortex A9, 1.6G, Screen size: 8inch, Housing type: Closed Plastic Frame, Housing type: Counter Model, LCD Panel resolution: 1280*800, Ratio: 16:10, LCD Panel Type: IPS Panel, Resolution Internal VideoPlayer: 1920*1080, Interface - Connection portals: Power Input DC 12V/1,5A, 3.5mm Jack, USB Portal, HDMI OUT, PoE (power over ethernet), Micro USB Portal, LAN input for Internet connection - RJ45, Network options: Wi-Fi, LAN/WLAN, Bluetooth 4.0, Memory: RAM 2GB - Internal Memory 16GB

Including:
EU Power Adapter

Screen size: 32inch, Screen type: LCD screen only - no touch, LCD Panel Type: LCD Panel, LCD Panel resolution: 1920*1080, LCD Panel resolution: 500nit brightness, Ratio: 16:9
Connection portals: HDMI IN, SD Cardreader, Interface, USB Portal, 3.5mm Jack, Power Input DC 12V/3A, Housing type: Open Metal Frame, Speakers: Internal Speakers: 2x 2W-8Ohm, Addition Features: Internal Mediaplayer 1080P, Function: Monitor - HDMI IN

AutoRun Mode: Button Mode or Movie Mode????

Including:
EU Power Adapter
Remote Control
8x PushButton Inputs

Optional Features: External Trigger Buttons, External Motion Sensor, External Liftup Sensor, External LED strips, (External) RFID Trigger, (External) Touch Buttons, (External) Light Sensor, External) Magnet Trigger, (External) Pushbuttons, (External) Barcode Scanner, (External) Speakers, (External) Volume buttons, (External) IR receiver

Specifications: Samsung QM32C - 32 inch Mainstream UHD - 1920x1080 (16:9), 400 cd/m2, 24/7, Tizen 7.0 - WiFi - 8GB, Ambient Sensor, new Home UI, 2nd Gen B2B Design. Details over de VESA, HDMI and DP are TBD (to be discussed). Expected launch Dec 2023.

Screen size: 10.1inch, Screen type: LCD screen only - no touch, LCD Panel Type: IPS Panel, LCD Panel resolution: 1920x1200, Interface - Connection portals: HDMI IN, Interface - Connection portals: SD Cardreader, Interface - Connection portals: USB Portal, Interface - Connection portals: 3.5mm Jack, Interface - Connection portals: Power Input DC 12V/1.5A, Housing type: Open Plastic Frame, Speakers: Internal Speakers: 2x 2W-8Ohm, PowerAdapter: AC/DC 12V/1.5A, Addition Features: Internal Mediaplayer 1080P, Brightness: 1000nit, Function: Monitor - HDMI IN

Screen size: 32inch, Screen type: High Brightness LCD, LCD Panel Type: IPS Panel, LCD Panel resolution: 1920*1080, Interface - Connection portals: HDMI IN, Interface - Connection portals: USB Portal, Housing type: Closed metal housing, Speakers: No internal speakers, PowerAdapter: 110-220V model, PowerAdapter: 220V cable, Brightness: 700nits

Screen size: 32inch, Screen type: High Brightness LCD, LCD Panel Type: IPS Panel, LCD Panel resolution: 1920*1080, Interface - Connection portals: HDMI IN, Interface - Connection portals: USB Portal, Housing type: Closed metal housing, Speakers: Internal Speakers: 2x 2W-8Ohm, PowerAdapter: 110-220V model, PowerAdapter: 220V cable, Brightness: 1000nit, Brightness: 2000nit

Interactivity: Trigger In- & Outputs (f.i. Pushbuttons / Touchless Buttons / Capacitive Touch buttons) & interactive LED lightning strips, Operation System: Android OS, Interface - Connection portals: 8x PushButton Inputs, HDMI OUT, TF cardreader, USB Portal, USB 2.0 OTG, LAN input for Internet connection - RJ45, Digital Sound Output (SPDIF), 3.5mm Jack, 2x ARC, 4x LED light output Voltage, USB upgrade portal (for software updates), Resolution Internal VideoPlayer: 4K, Housing type: Black Metal Housing, Start-Up: AutoStart by plug-in the power-adapter, PowerAdapter: PowerAdapter: AC/DC 12V/3.5A

- Play Next symbol + lightring
- Metal Black Brushed Steel
- 19mm ø Thread
- Length button 31,3mm
- White light illumination - 4000K White
- Cable length 1.5 meter + JST connector

Interface - Connection portals: 6x 3.5mm Jack Output, Interface - Connection portals: 6x PushButton Input, Interface - Connection portals: 2x Input for Volume up/down PushButtons, Interface - Connection portals: 1x 12V IN, Interface - Connection portals: 6x LED output 12V, Interface - Connection portals: 6x USB portals 5V, Housing type: Closed metal housing, PowerAdapter: AC-DC 12V-6A power adapter

Specifications: AutoRotation sensor, Screen size: 10.1inch, LCD Panel Type: IPS Panel, LCD Panel resolution: 1280*720, Operation System: Android 8.1 - PX30 chip, Operation System: 1GB + 16GB memory, Interface - Connection portals: TF cardreader, Interface - Connection portals: USB Portal, Interface - Connection portals: LAN input for Internetconnection - RJ45, Interface - Connection portals: 3.5mm Jack, Interface - Connection portals: JST Connectors for Triggering - Motion Sensor - Pushbuttons - Etcetera, Interface - Connection portals: Power Input 12V, Housing type: Open Plastic Frame

Specifications: Retail function; auto-start, play, loop attraction video. Use pushbuttons to activate video, Interactivity: 5x Pushbuttons (on external cables), Screen size: 10.1inch, Screen type: LCD screen only - no touch, LCD Panel Type: IPS Panel, LCD Panel resolution: 1280*800, Interface - Connection portals: TF cardreader, Interface - Connection portals: Power input 5V, Resolution Internal VideoPlayer: 1080P, Housing type: Closed Plastic Frame, Usage: 18/7, Brightness: 350nit, ViewAngles: 85/85/85/85

Including:
- 1x EU Power adapter 5V
- 5x Metal Silver Pushbuttons with 30cm cable and connectors (multi colors cabling for indications).

Specifications: Model YT32-O Drive Board YD2680HV-V6 (HD display driver board, mainly for industrial applications, with low EMC radiation and superior anti-interference performance. Input signal type: 1 HDMI input, 1 VGA input. Internal Power Panel LD4200P input:100-240V~50/60HZ output:24V⎓4.5A/12V⎓5A Backlight LED Backlight Display Type 16:9 Brightness 1000 nits Native Resolution 1920 x 1080 Screen Type No Touch with anti-glare Contrast Ratio Typically 1000:1 Viewing Angle(L/R/U/D) 89° /89° /89° /89° Input Video Format Analog RGB, CVBS NTSC/PAL (AUTO) Colors 16.7 million Backlight Lamp life Hrs 50,000 Sychronization Range 30-80 KHz horizontal, 55-75 Hz Vertical Luminousness 75-85% Power Supply AC110-240V Anti-interference EMI filter socket Power Consumption 100w around Operating Temperature Operating: 0℃-60℃, Storage:-20℃-70℃ Humidity Non Condensing Operating:10%-90%, Storage 5%-90% Color Black Warranty 1 Year Certificate CE FCC ROHS Packing Details Packing 89 X20.5X59cm Weight 20KG Accessories Power adapter, VGA HDMI cable

Specifications: Model YT236 Drive Board YD2680HV-V6 (HD display driver board, mainly for industrial applications, with low EMC radiation and superior anti-interference performance. Input signal type: 1 HDMI input, 1 VGA input. Internal Power panel LD1215P input:100-240V~50/60HZ output:12V⎓9A Backlight LED Backlight Display Type 16:9 Brightness 1000nits Screen Type Touch Screen with Anti-glare Native Resolution 1920 x 1080 Contrast Ratio Typically 1000:1 Viewing Angle(L/R/U/D) 89° /89° /89° /89° Input Video Format Analog RGB, CVBS NTSC/PAL (AUTO) Colors 16.7 million Backlight Lamp life Hrs 50,000 Sychronization Range 30-80 KHz horizontal, 55-75 Hz Vertical Luminousness 75-85% Power Supply AC110-240V Anti-interference EMI filter socket Power Consumption ≤80 W Touch type 10 points capacitive touch Touch screen Interface US Touch Response Time 8ms Touch Sensitivity Fixed Touch Pen Hitting Life >= 1milions times Humidity Non Condensing Operating:10%-90%, Storage 5%-90% Color Black Warranty 1 Year Certificate CE FCC ROHS Packing Details Packing 71x28.5x47cm Weight 16KG Accessories Power adapter, VGA HDMI USB cable

Screen size: 10.1inch, Screen type: Touchscreen - Capacitive, LCD Panel Type: IPS Panel, LCD Panel resolution: 1280*800, Operation System: Rooted, Android 11 - RockChip RK3568, CPU Quad Core Coretex A55, Interface - Connection portals: HDMI OUT, SD Cardreader, USB Portal, Power Input DC 12V/2A, LAN input for Internetconnection - RJ45, Micro USB Portal, 3.5mm Jack, Resolution Internal VideoPlayer: 1080P, Start-Up: AutoStart by plug-in the power-adapter, Network options: Wifi, LAN network, Bluetooth 4.0, Optional: SimCard Slot, Speakers: 2*1.5W, Mounting options: VESA 75x75mm - screwholes 4M, Mounting options: Including VESA Bracket Holder "Flat on Wall", Memory: RAM 2GB - Internal Memory: 16GB, Camera: 5.0MP front camera, Optional Features: NFC reader, PoE function, Sim Slot: Optional 4G module, RFID Reader

Including: EU Power Adapter

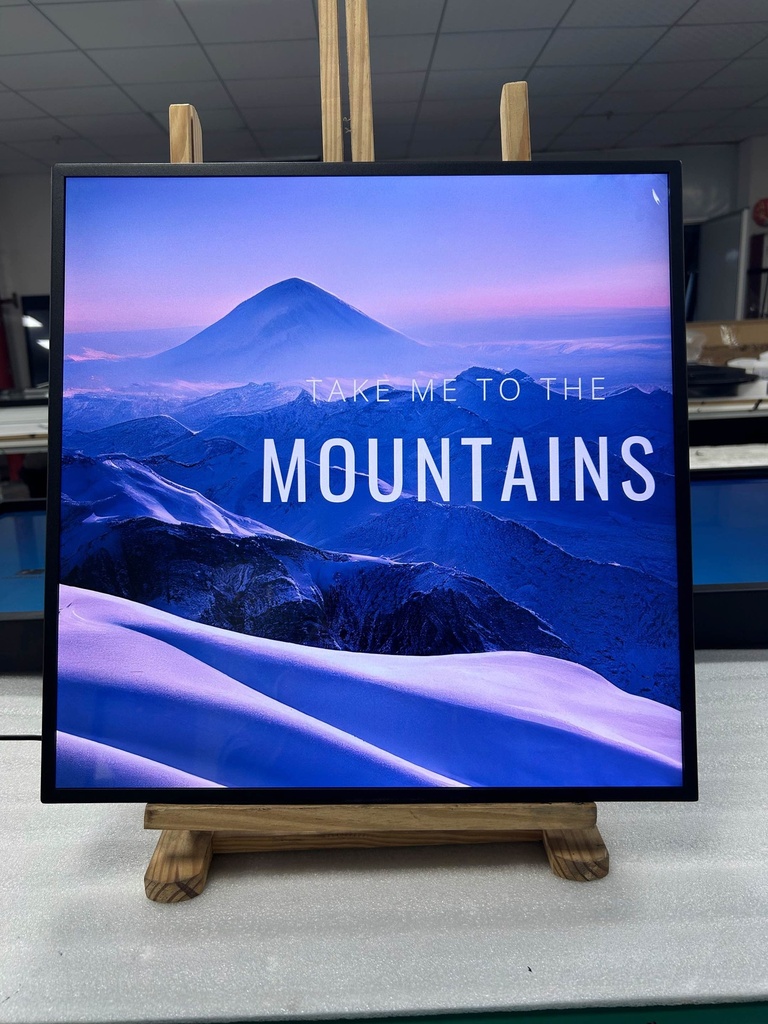

26.5inch Square LCD - Android OS
matt screen, no touch, Android OS with WIFI and LAN

Can be used stand-alone or as VideoWall.
Huidu Android PCB board to play IN-SYNC together as a video wall. The additional software "Huidu Videowall Soft" is needed to setup the videowall function.
