Screen size: 21.5inch, LCD Panel Type: LCD Panel, LCD Panel resolution: 1920*1080, Ratio: 16:9, Optional Features: (External) RFID Trigger, Optional Features: (External) Barcode Scanner, Optional Features: NFC reader, Operation System: Android 7.1 - RK3288, Operation System: ARM Mali-T764, Operation System: Quad Core ARM Cortex-A17, 1.8Ghz, Interface - Connection portals: LAN input for Internetconnection - RJ45, Interface - Connection portals: 2x USB 2.0, Housing type: Metal Totem-Kiosk Stand, Start-Up: AutoStart by plug-in the power-adapter, Network options: Wi-Fi, Network options: LAN/WLAN, Network options: Optional 4G, Memory: RAM 2/4GB DDR3, Memory: ROM 8/16 GB Flash, PowerAdapter: AC100/240V 50HZ/60HZ, Brightness: 300cd/m2

LCD Panel Type: LCD, Housing type: Closed plastic housing, Screen size: 18.5inch, Screen type: LCD screen only - no touch, LCD Panel resolution: 1920x1080, Function: Monitor - HDMI IN, Interface - Connection portals: HDMI IN, SD Cardreader, USB Portal, Power Input DC 12V/5A, Mounting options: VESA screwholes, PowerAdapter: AC/DC 12V/5A, Usage: 14/7, Speakers: Internal Speakers: 2x 2W-8Ohm, Ratio: 16:9, Addition Features: Internal Mediaplayer 1080P

Including:
EU Power Adapter
Remote Control

Optional:
Audio Jack 3.5mm Output, External Trigger Buttons, External Motion Sensor, External LED strips, (External) Pushbuttons, (External) Touch Buttons - capacitive, (External) Light Sensor, (External) Liftup Sensor, (External) Barcode Scanner, (External) Speakers, (External) IR receiver, LED Light Pads, (External) RFID Trigger, (External) Magnet Trigger, (External) Volume buttons, Internal Memory + AutoCopy Content: 4GB

Dimensions: 930x175mm, Screen size: 35.5inch, Screen type: LCD screen only - no touch, Operation System: RockChip PX30, Operation System: OS Android 8.1, Network options: Wi-Fi

Operation System: Quad Core ARM Cortext - A53 up to 1.6GHz, Android OS,

Interface - Connection portals:
8x PushButton Inputs,
6x 3.5mm Jack Output,
1x USB Portal, 1x USB OTG portal, TF cardreader,
1x HDMI OUT,
WiFi Antenna, LAN RJ45
Power Input DC 12V/2A,
Housing type: Black Metal Housing,
PowerAdapter: AC/DC 12V/1.5A

Including:
EU Power adapter
Packaging: White GiftBox
Sticker on Packaging and Product.
Text on sticker: AC-MP4K-AUDIO-6JACKS-ANDROID
SN number: SN:

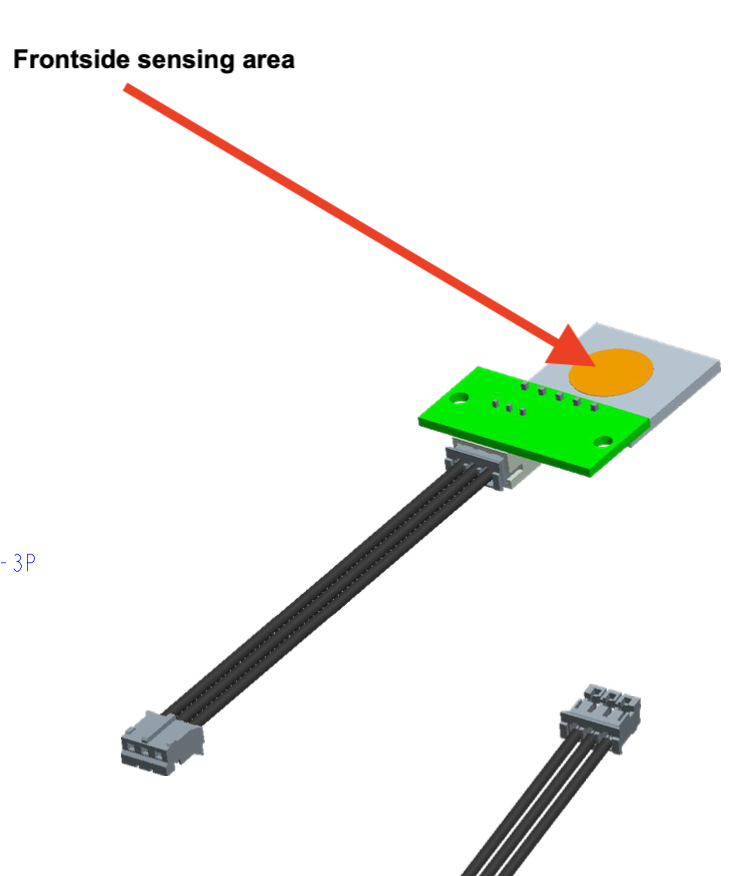

Sensing Area: 0.1 - 10 meter range, Sensing Area: note: must be adjusted in the software, Delay time of sensor: Sensor will be inactive after Sensor Video has finished. This can vary in timing. Standard it will be 10 seconds, Delay time of sensor: note: must be adjusted inthe software, Material on Top: The sensor can be behind glass, wood, plastic. NOT behind metal., Multiple Sensors: Multiple sensors connected is possible., Sensing angle: 120 degrees circle area

[AC-1562AIO-9xPB-9xLED-9xLED-HQAUDIO] 15.6inch Android Multi-Functions Screen: 9x Push / 9x LED Interactive / 9x LED ON

Including:
IPS Panel 1920x1080
Internal Android player + audio player
Metal OpenFrame housing
9x pushbuttons inputs

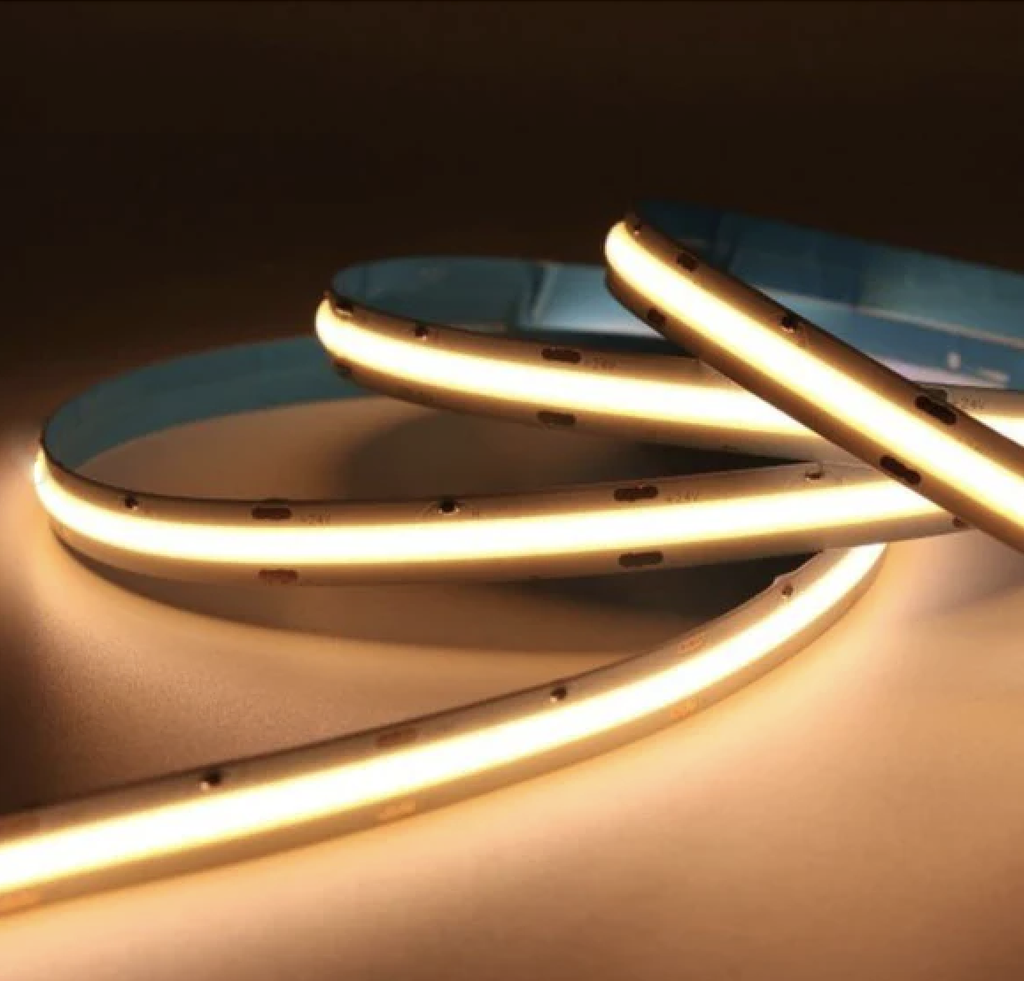

9x LED strips output (interactive with pushbuttons)
9x LED strips output (always on)
3x Jack 3.5mm out
High Quality Sound output: Full HD 24Bit 192Khz audio player: can Play 24Bit 192khz WAV.

No Adaptor included
No LED strip included
No PushButton included

Content updates:
- Can be via USB Stick, with AutoUpdate function to the internal memory.
- Online via Internet Connection via f.i. Dropbox or Own Server.

Software function:
- With XML Scripting
- Pushbutton blinking sequence must be:
800msecond ON - 800msecond OFF !!!!!

Software function:

No triggering: MU is looping video and All LED strips are ON

Function Pushbutton 1, 2, 3, 4, 5, 6:
Press button 1: LED strip 1 is ON, Video 01 is playing, LED Strips 2-9 are OFF, press again button 1, it will play again video 01
Press button 2: LED strip 2 is ON, Video 02 is playing, LED strips 1,3-9 are OFF
Similar function for Pushbutton 3-4-5-6.

Function Pushbutton 7,8,9:
They are connected with Headphones 1,2,3

Press button 7, LED strip 7 is ON, Video 07 is playing, LED Strips 1-6,8,9 are OFF
=> Headphone 1 is connected and when press Pushbutton 7:
- Video 07 is playing on the screen
- Audio is playing on Headphone 1. There are 5x Soundtracks.
- If the screen play video 07 and audio play soundtrack 01 mouth (audio will be inconsistent from video)
- If Press again Pushbutton 7, it will only go to next soundtrack, video 07 is still continu playing, if press again, it will go to next soundtrack.
- When video 7 is ready, it will go to looping video (mu). Button 7 will be active again, only after video 07 has finished to play the video 07 again.
- Audio: There will be 5x separate Audio-tracks (WAV or MP3 files). When press button 7 it will start playing Audio-track 01. When press again Button 7, it will play next track. If do not press button 7, it will finish Audio-track 01 and will automatically to the next Audio-track. When Track 05 is playing and finished and video 07 is still playing, than start again with AudioTrack 01.

Press button 8, LED strip 8 is ON, Video 08 is playing, LED Strips 1-7,9 are OFF
o Same function as button 7.
o If sound and video is still playing from button 7, and push on button 8, sound will change audio-jack-channel continue playing on Headphone 8 and video 08 will start playing.
Press button 9, same function as 7 and 8.

Screen size: 23.6inch, LCD Panel resolution: 848*848, Brightness: 700nits

Specifications: touch monitor without stand, widescreen, 16:9, 33,8cm (13,3''), Touchscreen, Projected Capacitive, multi touch (10 points), Full HD 1920x1080 pixels, VESA mount (75x75 mm), 25ms, brightness: 270cd, viewing angle: 170/170°(H/V), contrast: 800:1, USB (type C, micro-USB), audio, VGA, HDMI, touch interface: USB, incl.: cable (USB, HDMI), power supply unit, power cable, QSG, colour: black, Warranty: 36 months, Screen size: 13.3inch, Screen type: Touchscreen - Capacitive

Specifications: Display Screen Size 32" Panel Technology Edge LED BLU Resolution FHD (1920 x 1080) Brightness 400 nits Contrast Ratio (Typical) 5000:1 Contrast Ratio (Dynamic) MEGA Viewing Angle (H/V) 178/178 Response Time 8ms(Typ.) Operation Hours 24/7 Connectivity Input RGB: Display Port 1.2 (1) VIDEO: HDMI 2.0 (2) HDCP: HDCP2.2 AUDIO: Stereo Mini Jack, HDMI/Audio (Common) USB: USB 2.0 x 2 Output AUDIO: Stereo Mini Jack External Control RS232C (In/Out) Thru Stereo Jack, RJ45, Specifications: Sensor IR Power Power Supply AC 100 - 240 V, 50/60 Hz Power Consumption (Typical/Max) 44 Power Consumption (Standby) 0.5 Environmental Conditions Operating Temperature 0℃~ 40℃ Operating Humidity 10~80% Features Key FHD Signage Display, Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0 Special HARDWARE: Temperature Sensor, Pivot Display, Clock Battery (168hrs Clock Keeping), Built-in Speaker(10W 2ch), IP5x Rating, Wi-Fi SOFTWARE: Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot Key Option, Plug&Play (Initial Setting) SMART Signage Platform Yes 24/7 Operation Yes Wi-Fi Yes Speaker Type Built-in Speaker Storage 8GB Built-in WiFi Yes Built-in Speakers Yes Cisco Certified Yes Internal Player Processor Cortex A72 1.7GHz Quad-Core CPU On-Chip Cache Memory L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB Clock Speed 1.7GHz Main Memory Interface 2.5GB LPDDR4 1.5GHz 64bit Graphics Graphic Resolution: 1920x1080 Output Resolution : 1920x1080 (Scale Up from Graphic Processing Result) Storage 8GB (3.88GB Occupied by O/S, 4.12GB Available) Multimedia Video Decoder: MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder : AC3 (DD), MPEG IO Ports USB 2.0 Operating System Tizen 4.0 (VDLinux) Dimensions Without Stand (W x H x D) 725.1 x 419.6 x 34.6 Packaging (W x H x D) 812 x 513 x 120 Bezel Width 8.8mm (U/L/R/B) Weight Product Weight 5.7 lbs Package Weight 8 lbs Accessories Included in Box Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries Optional Wall Mount Kit WMN4070SE (Land Only) WMN750ME Optional Stand STN-L3240E Specialty CML400XK Green Management ENERGY STAR® Certified ENERGY STAR 8.0 Mechanical Specs VESA Mount 200 X 200 Media Player Option Type Foot Stand (Optional)

Specifications: Diagonal Size 65" Type Edge LED BLU Resolution 3840*2160 (4K UHD) Pixel Pitch(mm) 0.372 x 0.372 Active Display Area(mm) 1428.48 (H) x 803.52 (V) Brightness(Typ.) 350 nit Contrast Ratio 4000:1 Viewing Angle(H/V) 178/178 Response Time(G-to-G) 8ms(Typ.) Display Colors 16.7M(True Display) 1.07B(Ditherd 10bit) Color Gamut 92% (DCI-P3, CIE 1976) Operation Hour 16/7 Haze 2% Display Dynamic C/R MEGA H-Scanning Frequency 30 ~ 81kHZ V-Scanning Frequency 48 ~ 75HZ Maximum Pixel Frequency 594MHz Sound Speaker Type Built in Speaker(10W + 10W) Connectivity Input RGB DVI-D Video HDMI 2.0 (2) HDCP HDCP 2.2 Audio Stereo Mini Jack, DVI/HDMI/Audio(Common) USB USB 2.0 x 2 Output Audio Stereo Mini Jack External Control RS232C(in/out) thru stereo jack, RJ45 External Sensor IR Power Type Internal Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz Power Consumption Max[W/h] 181.5 Typical[W/h] 128 Rating[W/h] 165 BTU(Max) 618.9 Sleep mode 0.5 Mechanical Specification Dimension (mm) Set 1453.9 x 831.0 x 46.3 Package 1611 x 973 x 185 Weight (kg) Set 24.9 Package 33.3 VESA Mount (mm) 400 X 400 Stand Type No Bezel Width (mm) 9.2mm(U/L/R), 11.2mm(B) Operation Operating Temperature 0 ℃ ~ 40 ℃ Humidity 10 % ~ 80 % Feature Key Features UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0 Orientation N/A Remote Control N/A Special Features H/W: Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x, Wi-Fi/BT S/W: Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting) Internal Player Processor Coretex A72 1.7GHz Quad-Core CPU On-Chip Cache Memory L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB Clock Speed 1.7GHz Main Memory Interface 2.5GB LPDDR4 1.5GHz 64bit Graphics Graphic resolution : 1920x1080 Output resolution : 3840x2160 (Scale up from graphic processing result.) Storage (FDM) 8GB (3.88GB Occupied by O/S, 4.12GB Available) Multimedia *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG IO Ports USB 2.0 Operating System Tizen 4.0 (VDLinux) Certification Safety 60950-1 EMC Class B Security 802.1x(WPA2 Enterprise): EAP-TLS, EAP-TTLS, EAP-PEAP Accessory Included Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries Optional Stand No Mount WMN4277SE

[AC-MP4K-AUDIO-1xUSB+5xJACKS-ANDROID] 4K Media&Audio Multi Player - 6x Jack Out - Interactive Trigger function (8x) - AutoStart

Operation System: Quad Core ARM Cortext - A53 up to 1.6GHz, Android OS,

Interface - Connection portals:
8x PushButton Inputs,
5x 3.5mm Jack Output,
1x USB Audio Output
1x USB Portal, 1x USB OTG portal, TF cardreader,
1x HDMI OUT,
WiFi Antenna, LAN RJ45
Power Input DC 12V/2A,
Housing type: Black Metal Housing,
PowerAdapter: AC/DC 12V/1.5A

Including:
EU Power adapter
Packaging: White GiftBox
Sticker on Packaging and Product.
Text on sticker: AC-MP4K-AUDIO-1xUSB-5xJACKS-ANDROID
SN number: SN:

[ELNW3295T] 32inch Android Touch - Ultra Narrow Bezel
CPU RK3588 Quad core cortex A55+Quad core cortex A76
RAM 8GB Internal memory 12GB
Operation system Android 12
Panel Size32" LCD - IPS
Resolution 1920*1080
Viewing angle89/89/89/89 (L/R/U/D)
Contrast ratio 1000:1
Luminance 250cdm2
Aspect Ratio 16:9
Model Type In cell touch 10 -Point
Interface for touch HID-USB
WiFi 802.11b/g/n/a/ac/ax (WiFi 6)d
Ethernet 100M/1000M
Bluetooth 5.0
Power Jack - DC power input
MIC IN
External microphone input
Earphone Output 3.5mm earphone output
Type-cFull Function ( Except for charging function )
SIM Slot: Optional 4G/5GM module
USB Host or USB touch
Standard USB Host , Optional USB touch function
HDMI IN Support HDMI 2.0
RJ45 Ethernet interface

Video format
MPEG-1,MPEG-2,MPEG-4,H.265,H.264,H.263,VC-1,VP8,VP9,MVC,AV1, etc.,max support up to8K@60fps

Audio format
MP3/WMA/AAC/WAV/OGG, etc

jpeg/png/gif,etc

Housing Color: BLACK

VESA 100mm*100mm
Button Power/Vol+/Vol-
Speaker 4Ω*5W*2
Microphone Built in dual Microphone , Support noise reduction and echo cancellation
NFC Optional ,13.56MHz，ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica
G-sensor Support 90 degrees
Camera Optional External USB type camera ( 2.0MPor 5.0MP )
Language Multi-language
Certificates CE/FCC
Power Type Adapter Input Voltage DC 12V/5A
Power consumption ≤30W
Storage Temperature -20℃---60℃
Working Temperature 0℃---50℃ 10~90%RH
Including EU Adapter,12V/5A
User manual

Screen size: 23.6inch, LCD Panel resolution: 848*848, Operation System: Android 7.1 - RockChip RK3399, Housing type: Metal Round Housing, Brightness: 700nits

14inch MediaScreen Open Metal Frame + HDMI IN
AC-140OMF-IPS

Screen type: LCD screen only - no touch, Screen size: 14inch, Housing type: Open Plastic Frame, LCD Panel resolution: 1920*1080, Ratio: 16:9, LCD Panel Type: IPS Panel, Function: Monitor - HDMI IN, Interface - Connection portals: HDMI IN, SD/MMC Cardreader, USB Portal, Mounting options: Mounting Strips, Additional Features: Internal MediaPlayer 1080P

Including:
EU Power Adapter
Remote Control

Optional (not included):
Audio Jack 3.5mm Output, External Trigger Buttons, External Motion Sensor, External LED strips, (External) Pushbuttons, (External) Touch Buttons - capacitive, (External) Light Sensor, (External) Liftup Sensor, (External) Barcode Scanner, (External) Speakers, (External) IR receiver, LED Light Pads, (External) RFID Trigger, (External) Magnet Trigger, (External) Volume buttons, HDMI IN portal, Internal Memory + AutoCopy Content: 4GB

Screen size: 75inch, LCD Panel resolution: 3840*2160, Interface - Connection portals: HDMI IN, Interface - Connection portals: USB 2.0 OTG, Features: 18/7 usage – Internal Player. 4K-400Cd/m2 , 18/7, UHD, Android, SoC, basic failover, USB auto play, Smart Player, LAN, RS240

Screen size: 32inch, Screen type: TouchScreen INCELL Touch, LCD Panel Type: IPS Panel, LCD Panel resolution: 1920*1080, Ratio: 16:9, Optional Features: Software Systems for Digital Signage & Kiosks, Operation System: Android 12 - RockChip 3588, Operation System: Dual Core Cortex A72, Operation System: Quad Core Cortex A53, Interface - Connection portals: HDMI IN, Interface - Connection portals: USB Portal, Interface - Connection portals: 3.5mm Jack, Interface - Connection portals: Power Input DC 18V/4A, Interface - Connection portals: MIC-IN, Interface - Connection portals: USB type C , Resolution Internal VideoPlayer: 1920*1080, Housing type: Closed plastic housing, Housing type: Slim bezel, Start-Up: AutoStart by plug-in the power-adapter, Usage: 24/7, Network options: Wifi, Network options: Bluetooth 5.0, Speakers: 2x5W, Mounting options: VESA 100x100mm - screwholes 4mm, Memory: RAM 4GB +Internal Memory 32GB, Camera: Optional External USB type camera ( 2.0MPor 5.0MP ), PowerAdapter: AC/DC 18V/4A

Including:
EU Power Adapter

Installation of your software:
Install your own software (or from your client) by USB Stick. Most public software APK files you can download from websites like www.apkmirror.com.
Note: this is a rooted industrial Android screen, which means the Google Playstore is mostly not working in many regions. Please install another Store if needed.

Dimensions: 394.6 x 394.6mm, Screen size: 22inch, Screen type: LCD screen only - no touch, LCD Panel Type: LCD Panel, LCD Panel resolution: 1920*1920, Ratio: 1:1, Interface - Connection portals: HDMI IN, Interface - Connection portals: DVI, Interface - Connection portals: VGA, Housing type: Closed metal housing, Start-Up: AutoStart by plug-in the power-adapter

Screen size: 10.1inch, Screen type: Touchscreen - Capacitive, LCD Panel Type: IPS Panel, LCD Panel resolution: 1280*800, Resolution Internal VideoPlayer: 1080P, Operation System: Android 11 - RockChip RK3566, Operation System: Quad Core A55, Interface - Connection portals: HDMI OUT, SD Cardreader, USB Portal, Power Input DC 12V/2A, LAN input for Internet connection - RJ45, Micro USB Portal, 3.5mm Jack, Network options: Wifi, LAN network, Bluetooth 4.0, Memory: RAM 2GB - Internal Memory: 16GB, Speakers: 2*1.5W, Camera: 2.0MP front camera, Mounting options: VESA 75x75mm - screwholes 4M, Start-Up: AutoStart by plug-in the power-adapter

Including:
EU Power Adapter

Installation of your software:
Install your own software (or from your client) by USB Stick. Most public software APK files you can download from websites like www.apkmirror.com.
Note: this is a rooted industrial Android screen, which means the Google Playstore is mostly not working in many regions. Please install an other Store if needed.
