Housing type: Closed plastic housing, Screen size: 11.6inch, Screen type: Touchscreen - Capacitive, LCD Panel resolution: 1024*600, LCD Panel Type: LCD, Ratio: 16:9, Speakers: Internal Speakers: 2x 2W-8Ohm, Interface - Connection portals: SD Cardreader, USB Portal, 3.5mm Jack, Power Input DC 12V/1.5A, Accessories: Remote Control, Power Adapter, Resolution Internal VideoPlayer: 1080P


Including:
EU Power Adapter
Remote Control

Screen size: 11.6inch, Screen type: Touchscreen - Capacitive, LCD Panel resolution: 1366*768, LCD Panel Type: IPS Panel, Operation System: Android 5.1 - Rockchip RK3288, Cortex A17, GPU Mali-T764 - 2.2Ghz, Rooted, Network options: Wifi, LAN/WLAN, Bluetooth 4.0, Interface - Connection portals: SD Cardreader, USB Portal, LAN input for Internet connection - RJ45, 3.5mm Jack, Power Input DC 12V/1.5A, Start-Up: AutoStart by plug-in the power-adapter, Memory: RAM 2GB - Internal Memory: 8GB, Speakers: Internal Speakers: 2x 2W-8Ohm, Camera: 2.0MP front camera, Housing type: Closed Plastic Frame, Usage: 14/7

Including:
EU Power Adapter

Installation of your software:
Install your own software (or from your client) by USB Stick. Most public software APK files you can download from websites like www.apkmirror.com.
Note: this is a rooted industrial Android screen, which means the Google Playstore is mostly not working in many regions. Please install an other Store if needed.

Screen size: 11.6inch, Screen type: Non-Touchscreen, LCD Panel Type: LCD Panel, LCD Panel resolution: 1366*768, Housing type: Closed plastic housing, Operation System: Android 5.1 - Rockchip RK3288, Quad Core Cortex A17, 1.8G, Rooted, Interface - Connection portals: SD Cardreader, USB Portal, LAN input for Internet connection - RJ45, 3.5mm Jack, Power Input DC 12V/1.5A, Network options: Wifi, LAN network, Bluetooth 4.0, Memory: RAM 1GB - Internal Memory 8GB, Start-Up: AutoStart by plug-in the power-adapter, Speakers: Internal Speakers: 2x 2W-8Ohm, Camera: 2.0MP front camera

Including:
EU Power Adapter

Installation of your software:
Install your own software (or from your client) by USB Stick. Most public software APK files you can download from websites like www.apkmirror.com.
Note: this is a rooted industrial Android screen, which means the Google Playstore is mostly not working in many regions. Please install an other Store if needed.

11.6inch MediaScreen Set - IPS Panel - Components Only

1. 11.6inch LCD IPS Panel
Screen size: 11.6inch, Screen type: LCD screen only - no touch, LCD Panel Type: IPS Panel, LCD Panel resolution: 1280x800, Ratio: 16:9,

2. PCB Board
Interface - Connection portals: Power Input DC 12V/2A, SD Cardreader, USB Input, HDMI In, 1x Input for PushButton
Usage: 14/7, Start-Up: AutoStart by plug-in the power-adapter

3. Control Board
For setup adjustments

4. Flat Cable
to connent Panel with PCB Board

5. Including:
- EU Power Adapter 2,5 meter
- Remote Control

6. Optional:
Audio Jack 3.5mm Output, External Trigger Buttons, External Motion Sensor, External LED strips, (External) Pushbuttons, (External) Touch Buttons - capacitive, (External) Light Sensor, (External) Liftup Sensor, (External) Barcode Scanner, (External) Speakers, (External) IR receiver, LED Light Pads, (External) RFID Trigger, (External) Magnet Trigger, (External) Volume buttons, HDMI IN portal, Internal Memory + AutoCopy Content: 4GB

Housing type: Closed plastic housing, Start-Up: AutoStart by plug-in the power-adapter, Screen size: 11.6inch, Screen type: Touchscreen - Capacitive, LCD Panel Type: IPS Panel, LCD Panel resolution: 1366*768, Ratio: 16:9, Interface - Connection portals: USB Portal, HDMI IN, Speakers: Internal Speakers: 2x 2W-8Ohm, Mounting options: VESA connection, Backstand, PowerAdapter: AC/DC 12V/1.5A, Usage: 16/7

Including:
EU Power Adapter

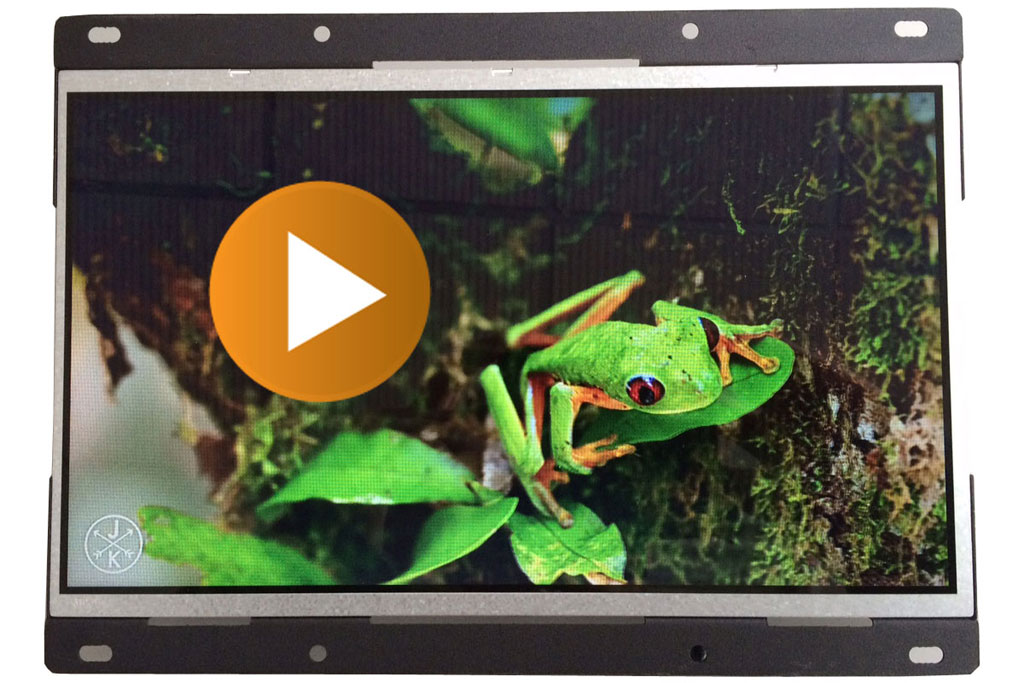

Housing type: Open Metal Frame, Screen size: 11.6inch, LCD Panel resolution: 1280*800, Ratio: 16:9, LCD Panel Type: LCD, Interface - Connection portals: HDMI IN, 3.5mm Jack, Power Input DC 12V/1.5A, Start-Up: AutoStart by plug-in the power-adapter, Usage: 14/7, Power Adapter: AC/DC 12V/1.5A

Including:
EU Power Adapter

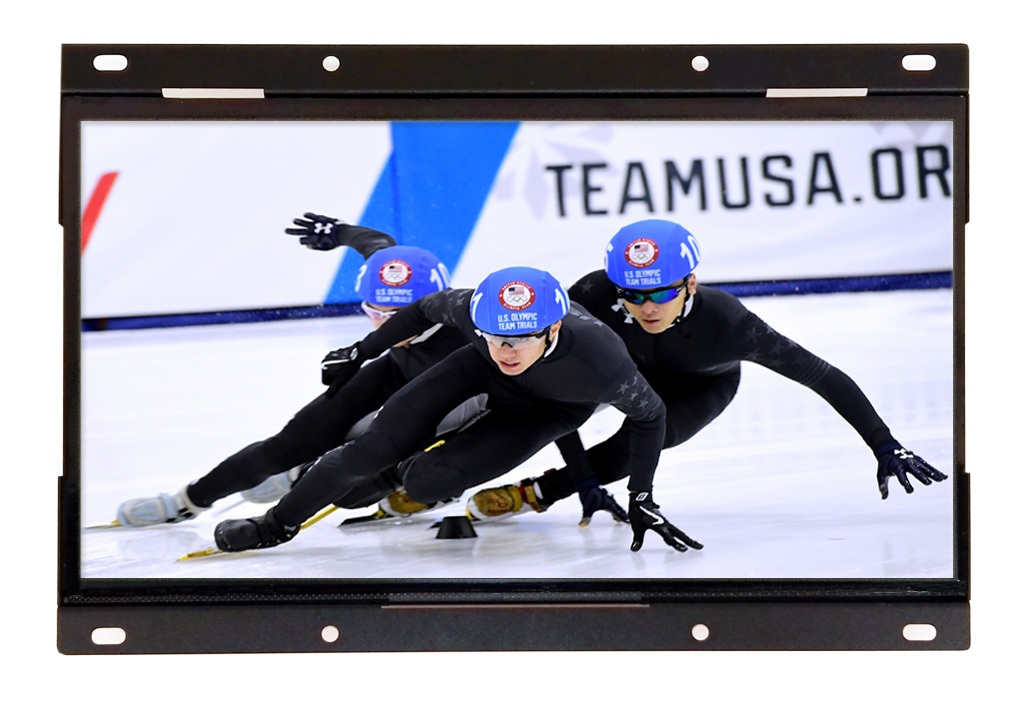

Screen size: 11.6inch, Screen type: LCD screen only - no touch, LCD Panel Type: IPS Panel, LCD Panel resolution: 1280*800, Housing type: Open Metal Frame, Interface - Connection portals: HDMI IN, SD Cardreader, USB Portal, 3.5mm Jack, Power Input DC 12V/1.5A, Function: Monitor - HDMI IN, Speakers: Internal Speakers: 2x 2W-8Ohm, Ratio: 16:9

Including:
EU Power Adapter
Remote Control

Optional:
Audio Jack 3.5mm Output, External Trigger Buttons, External Motion Sensor, External LED strips, (External) Pushbuttons, (External) Touch Buttons - capacitive, (External) Light Sensor, (External) Liftup Sensor, (External) Barcode Scanner, (External) Speakers, (External) IR receiver, LED Light Pads, (External) RFID Trigger, (External) Magnet Trigger, (External) Volume buttons, HDMI IN portal, Internal Memory + AutoCopy Content: 4GB

Screen type: LCD screen only - no touch, Screen size: 11.6inch, Housing type: Closed plastic housing, LCD Panel resolution: 1366*768, Ratio: 16:9, LCD Panel Type: IPS Panel, Interface - Connection portals: HDMI IN, SD Cardreader, USB Portal, 3.5mm Jack, Mounting options: VESA Backstand, Function: Monitor - HDMI IN

Including:
EU Power Adapter
Remote Control

Optional:
Audio Jack 3.5mm Output, External Trigger Buttons, External Motion Sensor, External LED strips, (External) Pushbuttons, (External) Touch Buttons - capacitive, (External) Light Sensor, (External) Liftup Sensor, (External) Barcode Scanner, (External) Speakers, (External) IR receiver, LED Light Pads, (External) RFID Trigger, (External) Magnet Trigger, (External) Volume buttons, HDMI IN portal, Internal Memory + AutoCopy Content: 4GB

Screen size: 11.6inch, Screen type: LCD screen only - no touch, LCD Panel Type: IPS Panel, LCD Panel resolution: 1280*800, Ratio: 16:9, Interface - Connection portals: HDMI IN, SD Cardreader, USB Portal, Power Input DC 12V/1.5A, Housing type: Open Plastic Frame, Speakers: Internal Speakers: 2x 2W-8Ohm, Addition Features: Internal Mediaplayer 1080P, Function: Monitor - HDMI IN - 8x PushButton input

Including:
EU Power Adapter
Remote Control
8x PushButton input

Optional:
Audio Jack 3.5mm Output, External Trigger Buttons, External Motion Sensor, External LED strips, (External) Pushbuttons, (External) Touch Buttons - capacitive, (External) Light Sensor, (External) Liftup Sensor, (External) Barcode Scanner, (External) Speakers, (External) IR receiver, LED Light Pads, (External) RFID Trigger, (External) Magnet Trigger, (External) Volume buttons, Internal Memory + AutoCopy Content: 4GB
