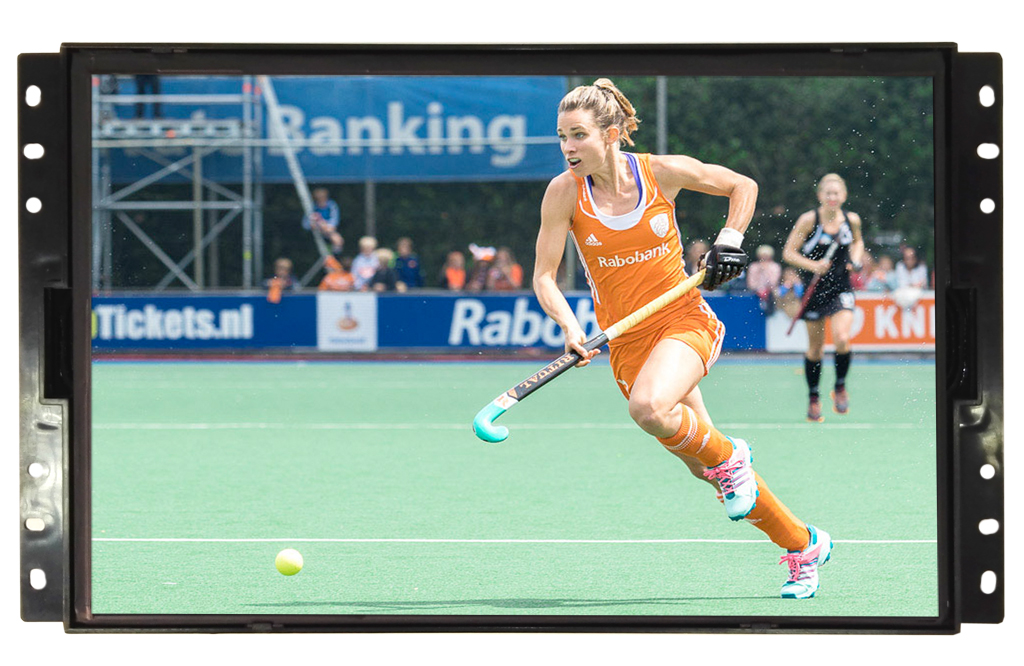

[AC-1562AIO-9xPB-9xLED-9xLED-HQAUDIO] 15.6inch Android Multi-Functions Screen: 9x Push / 9x LED Interactive / 9x LED ON
Including:
IPS Panel 1920x1080
Internal Android player + audio player

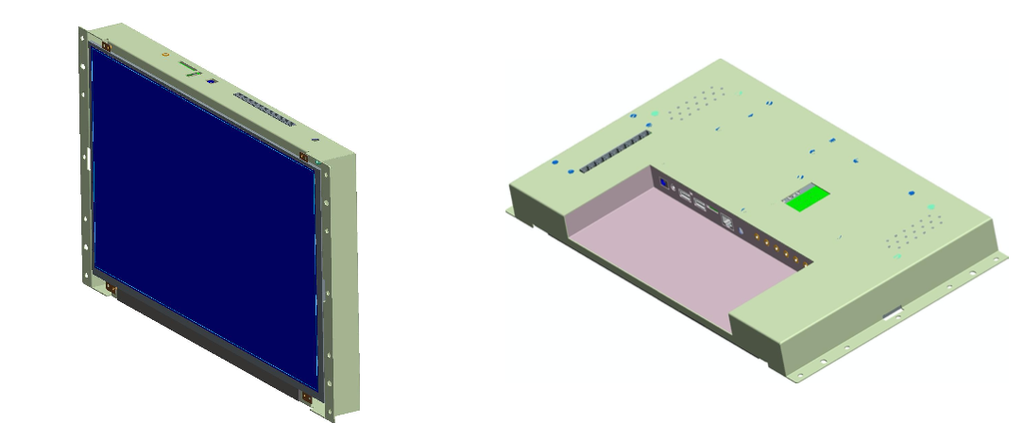

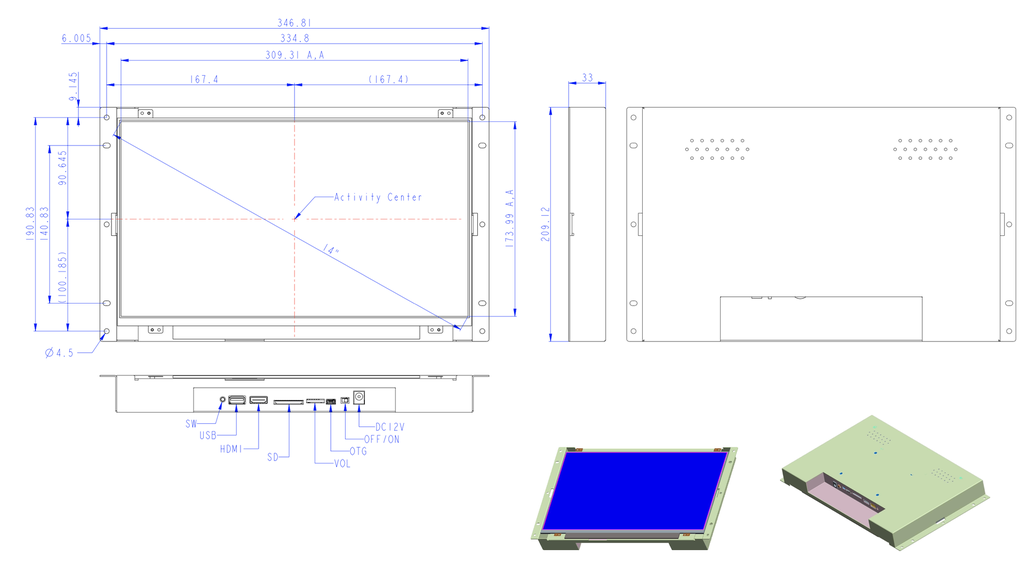

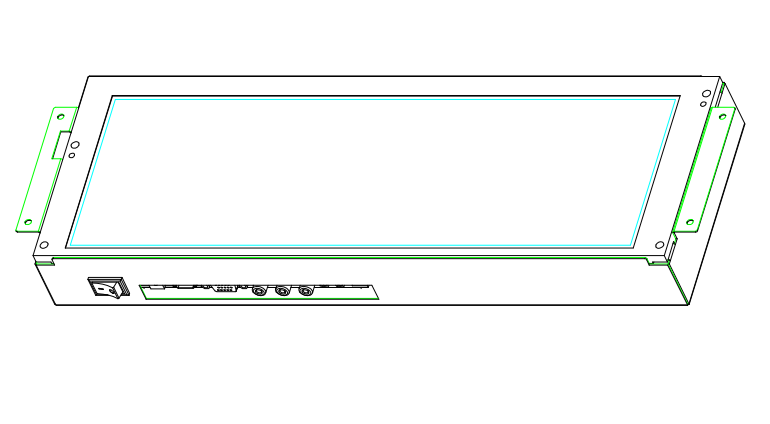

Metal OpenFrame housing
9x pushbuttons inputs
9x LED strips output (interactive with pushbuttons)
9x LED strips output (always on)
3x Jack 3.5mm out
High Quality Sound output: Full HD 24Bit 192Khz audio player: can Play 24Bit 192khz WAV.
No Adaptor included
No LED strip included
No PushButton included
Content updates:
- Can be via USB Stick, with AutoUpdate function to the internal memory.
- Online via Internet Connection via f.i. Dropbox or Own Server.
Software function:
- With XML Scripting
- Pushbutton blinking sequence must be:
800msecond ON - 800msecond OFF !!!!!
Software function:
No triggering: MU is looping video and All LED strips are ON
Function Pushbutton 1, 2, 3, 4, 5, 6:
Press button 1: LED strip 1 is ON, Video 01 is playing, LED Strips 2-9 are OFF, press again button 1, it will play again video 01
Press button 2: LED strip 2 is ON, Video 02 is playing, LED strips 1,3-9 are OFF
Similar function for Pushbutton 3-4-5-6.
Function Pushbutton 7,8,9:
They are connected with Headphones 1,2,3
Press button 7, LED strip 7 is ON, Video 07 is playing, LED Strips 1-6,8,9 are OFF
=> Headphone 1 is connected and when press Pushbutton 7:
- Video 07 is playing on the screen
- Audio is playing on Headphone 1. There are 5x Soundtracks.
- If the screen play video 07 and audio play soundtrack 01 mouth (audio will be inconsistent from video)
- If Press again Pushbutton 7, it will only go to next soundtrack, video 07 is still continu playing, if press again, it will go to next soundtrack.
- When video 7 is ready, it will go to looping video (mu). Button 7 will be active again, only after video 07 has finished to play the video 07 again.
- Audio: There will be 5x separate Audio-tracks (WAV or MP3 files). When press button 7 it will start playing Audio-track 01. When press again Button 7, it will play next track. If do not press button 7, it will finish Audio-track 01 and will automatically to the next Audio-track. When Track 05 is playing and finished and video 07 is still playing, than start again with AudioTrack 01.
Press button 8, LED strip 8 is ON, Video 08 is playing, LED Strips 1-7,9 are OFF
o Same function as button 7.
o If sound and video is still playing from button 7, and push on button 8, sound will change audio-jack-channel continue playing on Headphone 8 and video 08 will start playing.
Press button 9, same function as 7 and 8.
